Installation
Mounting

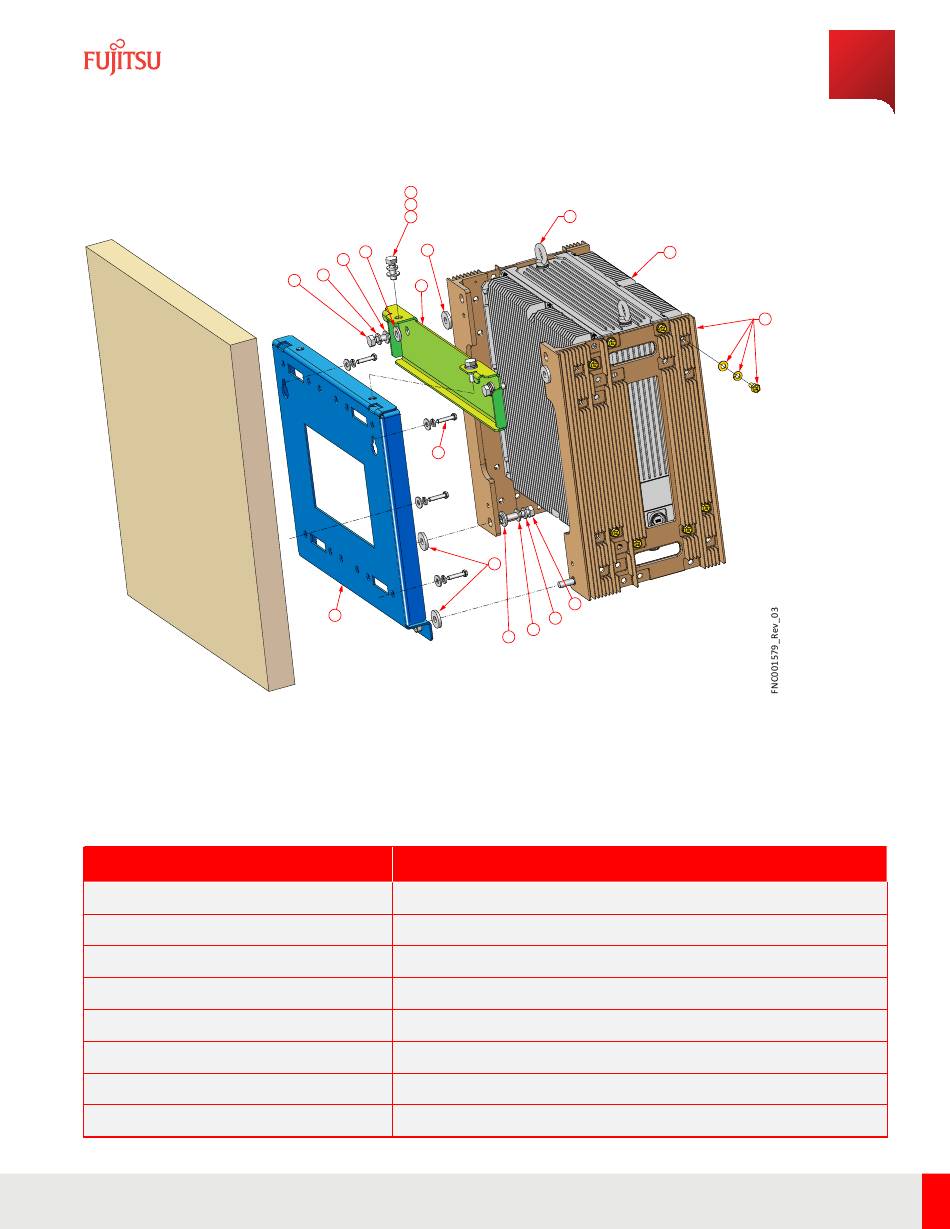

Figure 12
RU Wall Mount
Table 36
Wall Mount Kit Assembly Legend
Item
1
2
3
4
5
6
7
8
·
Issue 1.1, May 2021
Release 1.0
8
9
2
5
4
8
9
2
1
7
6
Description
Adapter, Mounting Plate Adapter
Bolt, Hex HD, M10 X 30 mm, SS
Bolt, Hex HD, M10 X 40 mm, SS
Insulator, Step Washer, Flat, M10
Insulator, Washer, Flat, M10
Plate, Wall Mount
Screw Kit, Wall Mount
Washer, Flat, M10, SS
10
11
5
3
9
8
4
1
90
12
