Installation / Care / Use Manual
LEGEND
A = 3/8" O.D. TUBE WATER OUTLET
B = 3/8" O.D. TUBE WATER INLET
C = TEMPERATURE ADJUSTMENT
D = ELECTRICAL
ECH8-1 & ECH8-2
MODEL: ECH8-1 & ECH8-2
Refrigeration Packages
INSTALLATION
START-UP
TROUBLE SHOOTING & MAINTENANCE
Temperature Control:
Ventilation:
Lubrication:
Actuation of Quick Connect Water Fittings:
OPERATION OF QUICK CONNECT FITTINGS
SIMPLY PUSH IN
TUBE IS SECURED
TUBE TO ATTACH
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
Advertisement
Table of Contents
Related Manuals for Elkay ECH8-1
Summary of Contents for Elkay ECH8-1

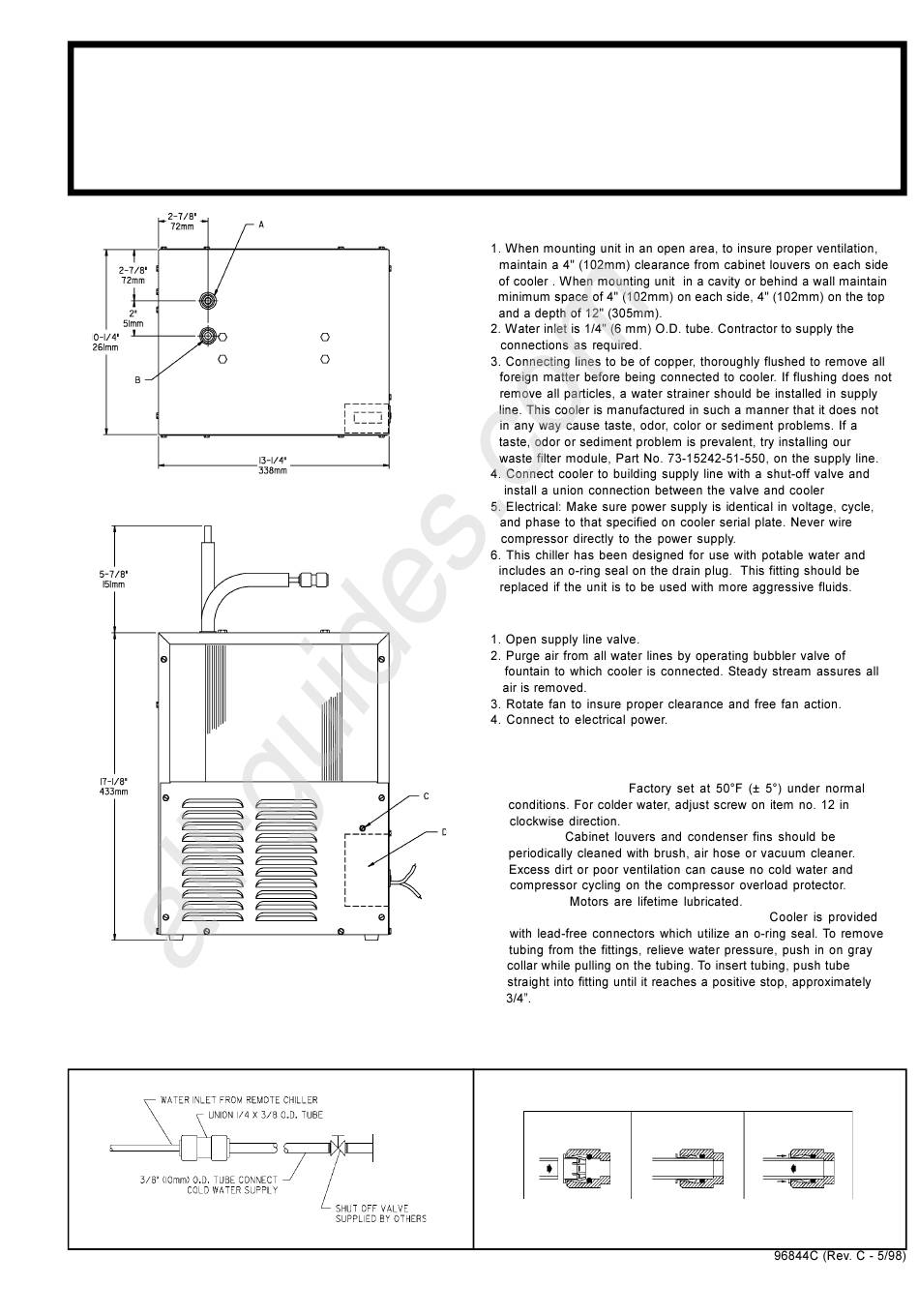

- Page 1 All manuals and user guides at all-guides.com ECH8-1 & ECH8-2 Installation / Care / Use Manual MODEL: ECH8-1 & ECH8-2 Refrigeration Packages INSTALLATION START-UP TROUBLE SHOOTING & MAINTENANCE Temperature Control: Ventilation: Lubrication: Actuation of Quick Connect Water Fittings: LEGEND A = 3/8" O.D. TUBE WATER OUTLET B = 3/8"...
- Page 2 All manuals and user guides at all-guides.com ECH8-1 & ECH8-2 ITEMIZED PARTS LIST ITEM PART NO. 220/240V, 50 HZ ITEM PART NO. 4,5,6,7,8 WIRING DIAGRAM 16,17,18 11,14,15,26...
