ANTENNAS BOTTOM VIEW
n
156.8
n
4.0
CONNECTOR TYPE N-PANEL, FEMALE
4 holes

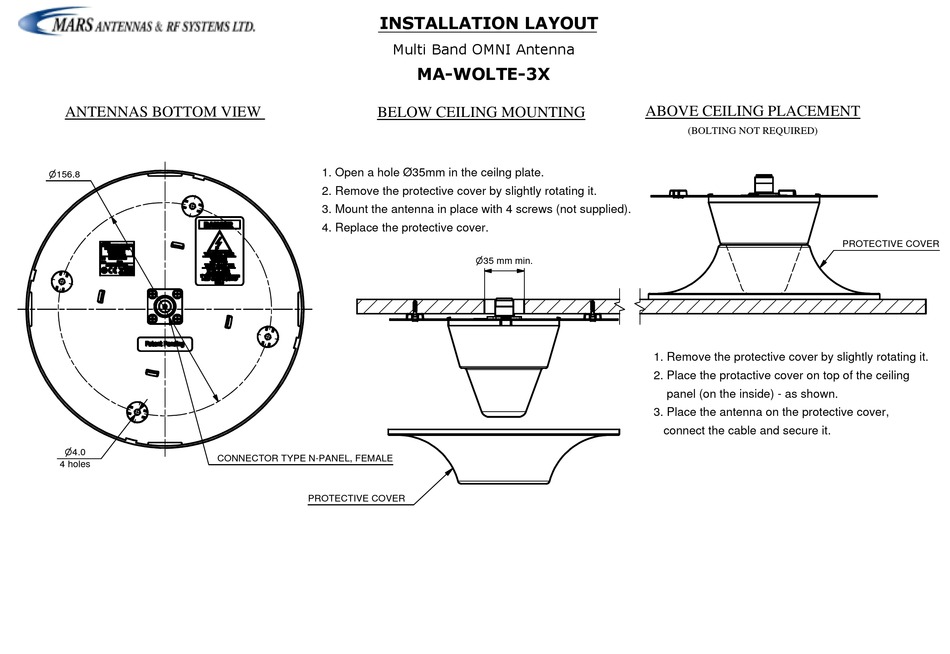

INSTALLATION LAYOUT
Multi Band OMNI Antenna
MA-WOLTE-3X
BELOW CEILING MOUNTING
1. Open a hole Ø35mm in the ceilng plate.
2. Remove the protective cover by slightly rotating it.
3. Mount the antenna in place with 4 screws (not supplied).
4. Replace the protective cover.
n
35 mm min.
PROTECTIVE COVER
ABOVE CEILING PLACEMENT
(BOLTING NOT REQUIRED)
1. Remove the protective cover by slightly rotating it.
2. Place the protactive cover on top of the ceiling
panel (on the inside) - as shown.
3. Place the antenna on the protective cover,
connect the cable and secure it.
PROTECTIVE COVER
