Summary of Contents for Mars MA-CQ26-1X

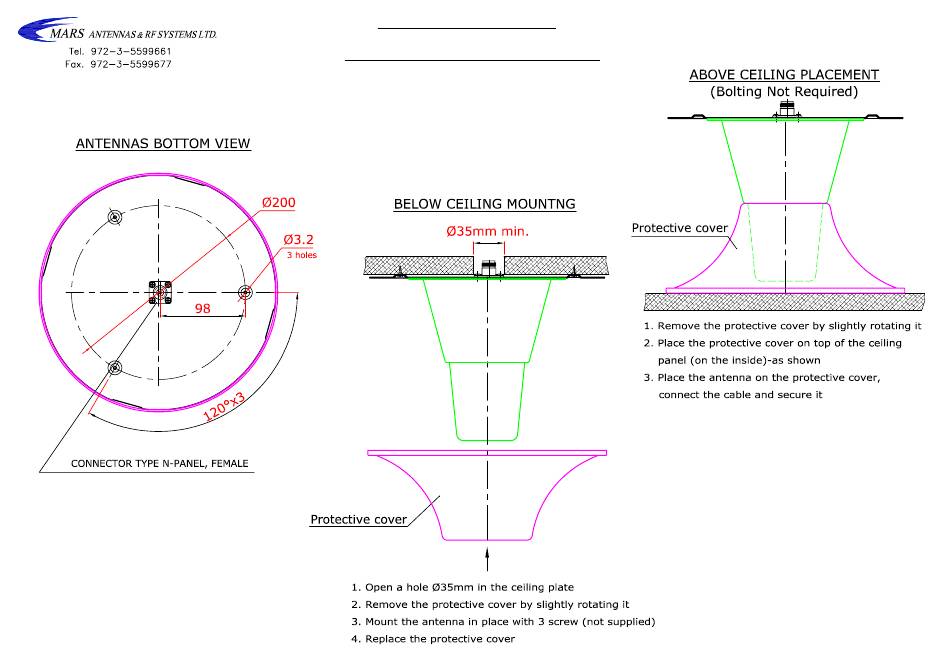

- Page 1 Installation Layout Multi Band Omni Antenna MA-CQ26-1X(T) / MA-CQ27-1X(T) Rev. 2...
- Page 2 MA-WOLTE-DP1R, MA-CQ27-1XR, MA-CQ26-1XRT MOUNTING INSTRUCTIONS Fig. 2a Fig. 2b Fig. 1 9 10 11 item 7 1. Fasten Mount to Antenna item 6 using items 8, 9, 10, 11 as shown on Fig 1. 3. Insert U-bolts item 2 into holes in Mount item 7 so Close screws item 8 with Nuts item 11 at a torque of U-bolts cover the Pole.
