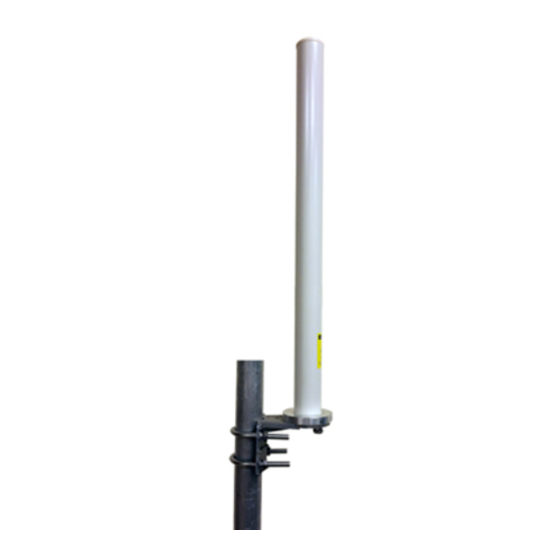

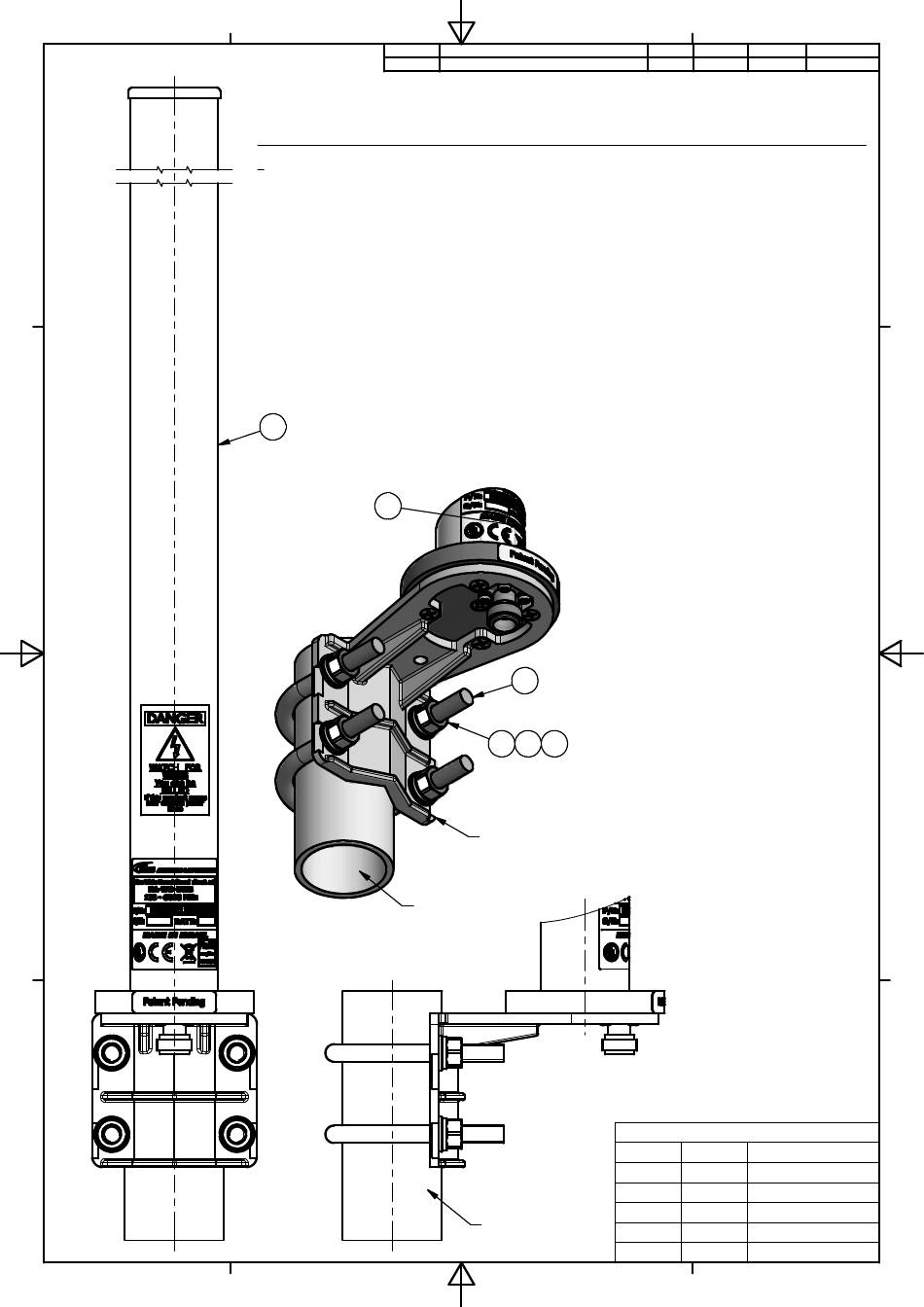

MOUNTING INSTRUCTION FOR ANTENNA MA-WO-UWB

1. Put U-bolts item 2 on the pole.
2. Adjust mount of antenna with U-bolts.
3. Close U-bolts with fasteners items 3, 4, 5. Tighten nuts item 5 so they hold antenna.
(Don't tighten finally.)
4. Adjust antenna as desirable. Evenly tighten nuts item 5 finally.
Recommended fastening torque for each nut: 10 N*m (100 kg*cm; 87 lb*in).
1
1
POLE
3
2
DESCRIPTION
2
5
3
4
MOUNT
ITEM
1
2
3
POLE
4
5
2
1
APPROVED
ECN No.
DATE
DRAWN
Parts List
QTY
DESCRIPTION
1
Antenna
2
U-Bolt M8
4
Flat Washer
4
Lock Washer
4
Hex Nut M8
1
D
C
B
A
