PRODUCT NAME
DIMENSIONS
ITEM NO.
1. Check for damaged or missing parts . Call 1-800-696-8446 to order missing supplies.
2. Use a soft surface or the carton as a working surface to prevent damage during assembly.
3. It is recommended to have 2 adults on hand for assembly.
4. Gather all tools prior to assembly.
5. WARNING! When included, anti-tipping hardware MUST be installed for your safety.
QUESTIONS? Call 1-800-696-8446, or email cs@ptsamerica.com
ASSEMBLY INSTRUCTIONS

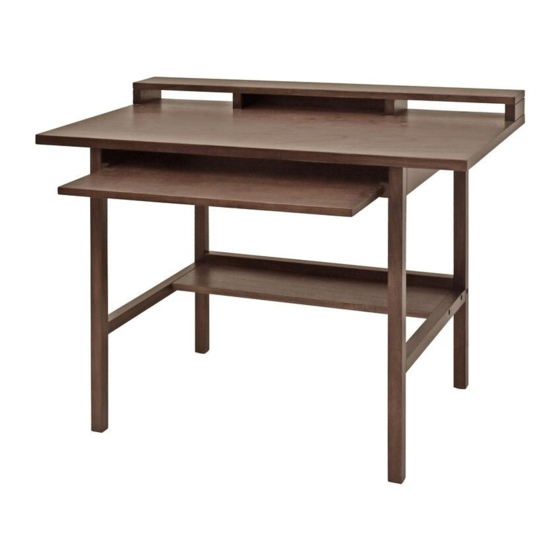

: Lafayette Desk
: 42"L x 24"W x 32.5"H
: 7166GR090BCV65
7166GR090CCV65
(Natural Light Finish)
(Rustic Grey Finish)
c 2019. PTS America, lnc. All rights reserved.
PAGE 1 OF 4
Advertisement
Table of Contents
Related Manuals for HOPPER Lafayette
Summary of Contents for HOPPER Lafayette

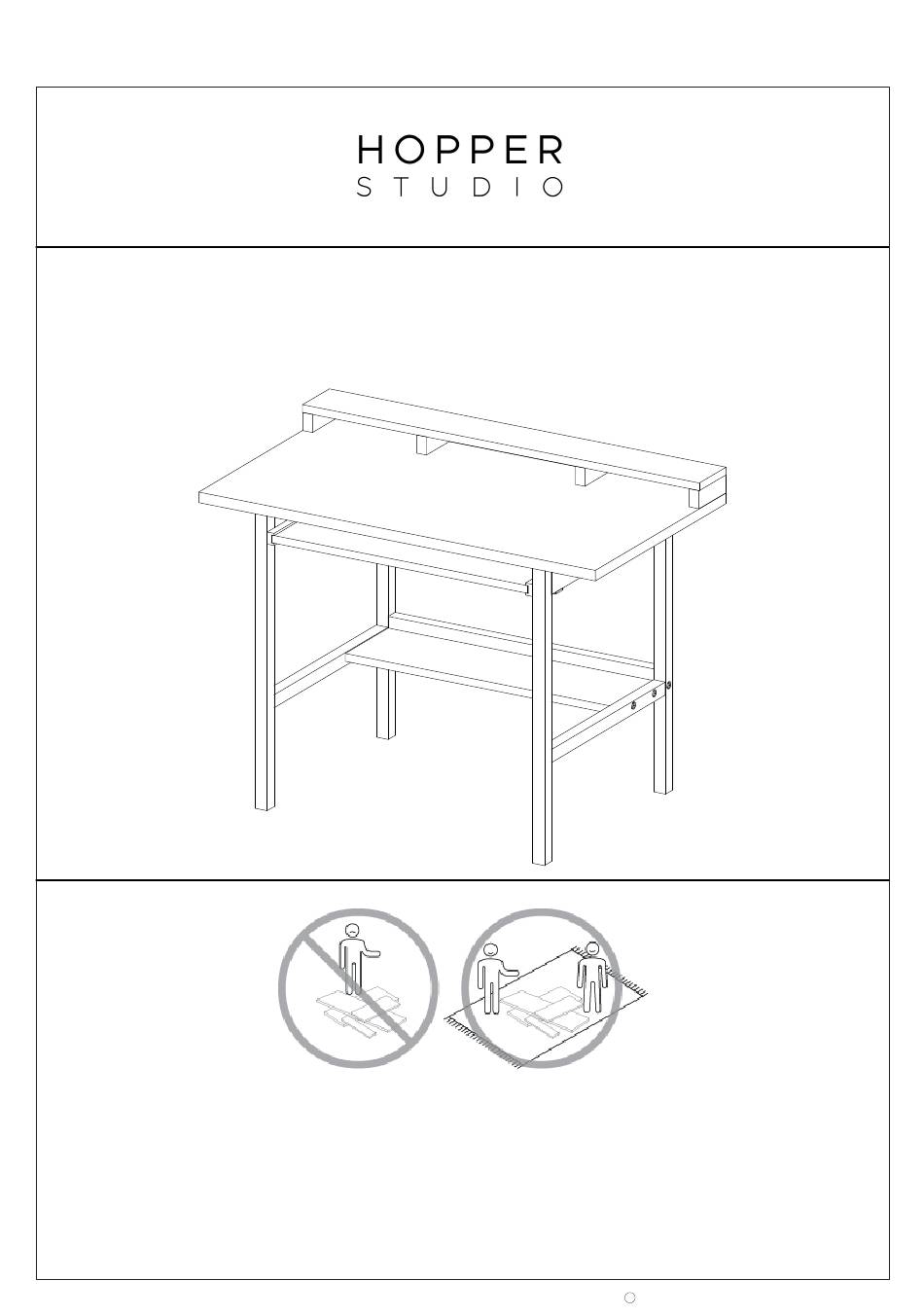

- Page 1 PAGE 1 OF 4 ASSEMBLY INSTRUCTIONS : Lafayette Desk PRODUCT NAME DIMENSIONS : 42"L x 24"W x 32.5"H (Natural Light Finish) ITEM NO. : 7166GR090BCV65 (Rustic Grey Finish) 7166GR090CCV65 1. Check for damaged or missing parts . Call 1-800-696-8446 to order missing supplies.
- Page 2 PAGE 2 OF 4 PARTS LIST ： Top Panel Left Leg Right Leg Top Back Rail Bottom Back Rail Bottom Panel Flat Metal Bar Shelf HARDWARE ： 2pcs Flat Head Machine Screw Ø1/4" x 3/4" 8pcs Flat Head Machine Screw Ø1/4"x1-3/4" 7pcs Flat Head Machine Screw Ø1/4"x2-1/2"...
- Page 3 PAGE 3 OF 4 STEP 1 STEP 2 QUESTIONS? Call 1-800-696-8446, or email cs@ptsamerica.com c 2019. PTS America, lnc. All rights reserved.
- Page 4 PAGE 4 OF 4 STEP 3 STEP 4 Note: adjust levelers on an uneven floor. QUESTIONS? Call 1-800-696-8446, or email cs@ptsamerica.com c 2019. PTS America, lnc. All rights reserved.
