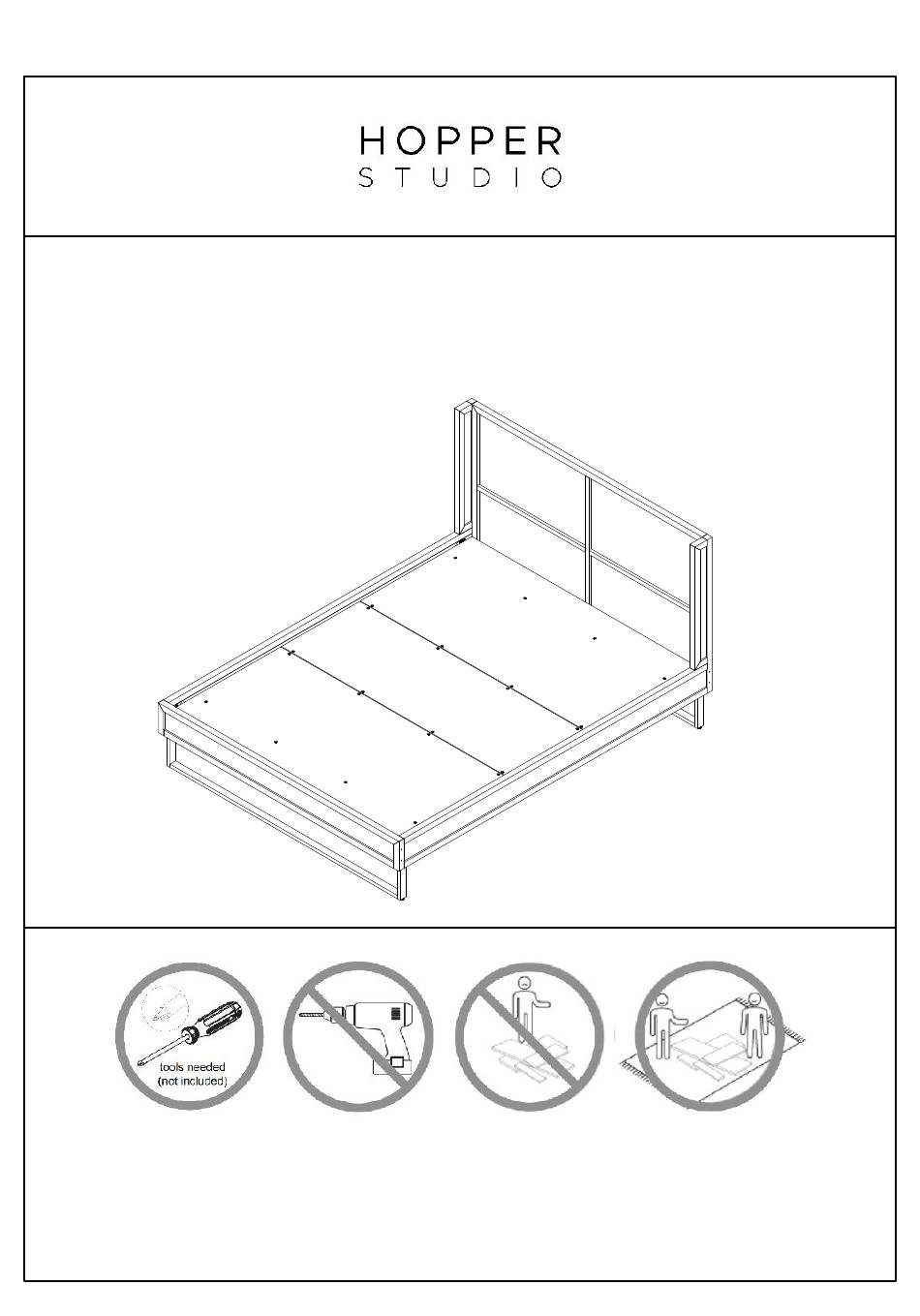

HOPPER Sophia Queen Bed 7185BK413BUY94 Assembly Instructions

PRODUCT NAME

DIMENSIONS

ITEM NO.

1. Check for damaged or missing parts. Call 1-800-696-8446 to order missing supplies.

2. Use a soft surface or the carton as a working surface to prevent damage during assembly.

3. It is recommended to have 2 adults on hand for assembly.

4. Gather all tools prior to assembly.

5. WARNING! When included, anti-tipping hardware MUST be installed for your safety.

QUESTIONS? Call 1-800-696-8446, or email cs@ptsamerica.com

ASSEMBLY INSTRUCTIONS

: Sophia Queen Bed

: 65.2"W x 85"D x 44"H

: 7185BK413BUY94 / 7185BK863BUY95

7185LN413CCZ32 / 7185LN863CCZ33

PAGE 1 OF 5

Table of Contents

Need help?

Do you have a question about the Sophia Queen Bed 7185BK413BUY94 and is the answer not in the manual?

Page 1 PAGE 1 OF 5 ASSEMBLY INSTRUCTIONS PRODUCT NAME : Sophia Queen Bed DIMENSIONS : 65.2"W x 85"D x 44"H ITEM NO. : 7185BK413BUY94 / 7185BK863BUY95 7185LN413CCZ32 / 7185LN863CCZ33 1. Check for damaged or missing parts. Call 1-800-696-8446 to order missing supplies. 2.
Page 2 PAGE 2 OF 5 PARTS LIST: Headboard Footboard Side Rail 2pcs 4pcs Slat 4pcs Middle Leg 2pcs Mattress Panel A Mattress Panel B HARDWARE: 8pcs Long Bolt 5/16" x 4" 8pcs Hexagonal Nut 5/16" 8pcs Half Moon Nut 5/16" Wrench for Nut Ø5/16" 24pcs Screw 3/4"...
Page 3 PAGE 3 OF 5 STEP 1 1.1 Secure the long bolt (H) into the headboard (A). 1.2 Insert the half moon nut (J) into the slot on the side rail (C), slide the long bolt (H) that was secured on the headboard (A) and tighten with the hex nut (I) using the wrench (K). STEP 2 Repeat step 1 for the footboard (B) installation QUESTIONS? Call 1-800-696-8446, or email cs@ptsamerica.com...
