HOPPER Delancey 7161LN586CUV69 Assembly Instructions Manual

2-door cabinet

Download this manual

PRODUCT NAME

DIMENSIONS

ITEM NO.

tools needed

(not included)

1. Check for damaged or missing parts . Call 1-800-696-8446 to order missing supplies.

2. Use a soft surface or the carton as a working surface to prevent damage during assembly.

3. It is recommended to have 2 adults on hand for assembly.

4. Gather all tools prior to assembly.

5. WARNING! When included, anti-tipping hardware MUST be installed for your safety.

QUESTIONS? Call 1-800-696-8446, or email cs@ptsamerica.com

ASSEMBLY INSTRUCTIONS

: Delancey 2-door Cabinet

: 34" L x 15" W x 34" H

: 7161LN586CUV69

7161BK586CUV69

(Natural Light Finish)

(Black Finish)

PAGE 1 OF 11

Need help?

Do you have a question about the Delancey 7161LN586CUV69 and is the answer not in the manual?

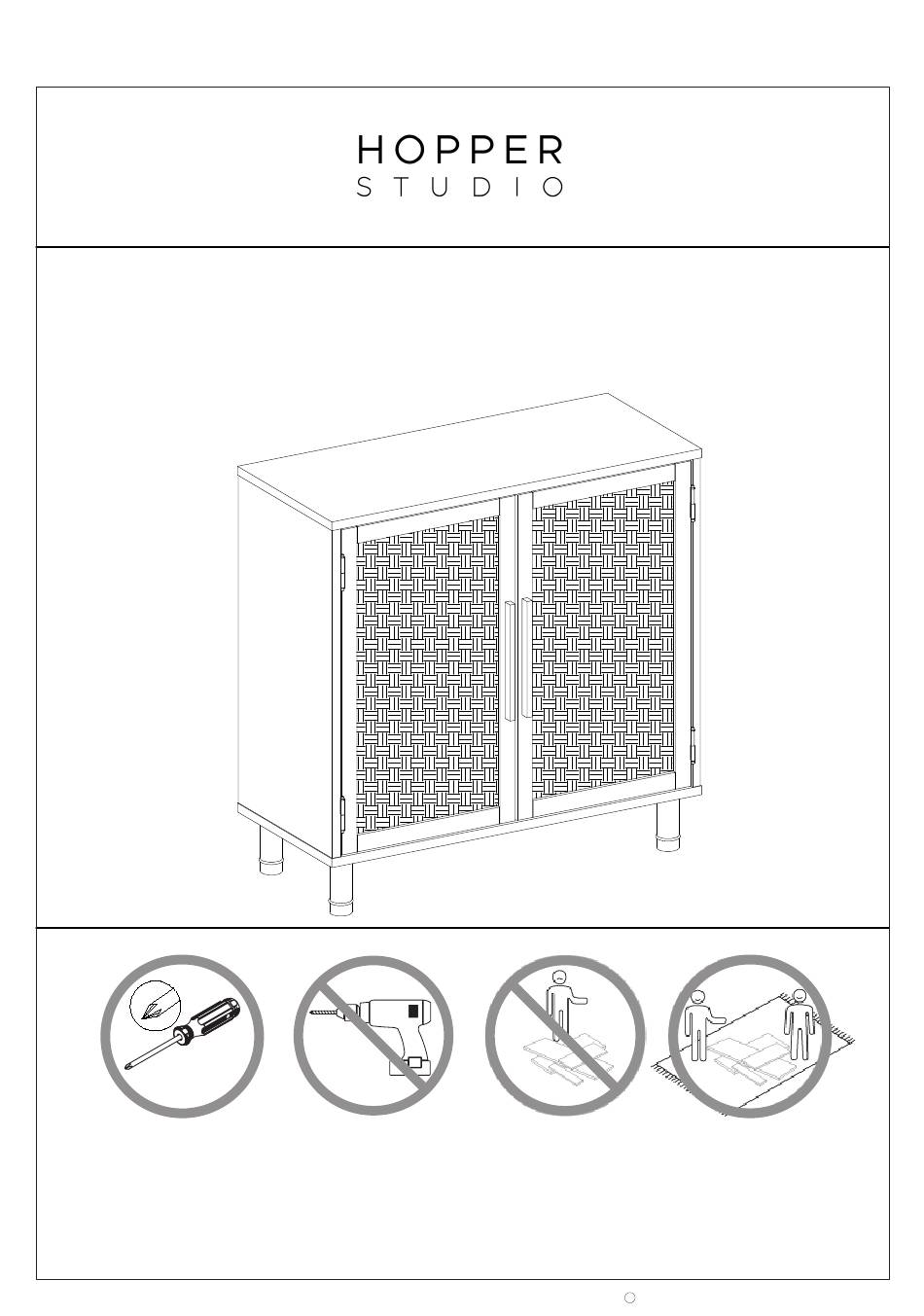

Page 1 PAGE 1 OF 11 ASSEMBLY INSTRUCTIONS : Delancey 2-door Cabinet PRODUCT NAME DIMENSIONS : 34" L x 15" W x 34" H (Natural Light Finish) ITEM NO. : 7161LN586CUV69 (Black Finish) 7161BK586CUV69 tools needed (not included) 1. Check for damaged or missing parts . Call 1-800-696-8446 to order missing supplies. 2.
Page 3: Parts List
PAGE 3 OF 11 PARTS LIST ： Top Panel Left Side Panel Right Side Panel Back Rail 2pcs Bottom Panel 4pcs Back Panel Shelf Panel Left Door Right Door HARDWARE : Wooden Dowel Ø8x40mm 16pcs 16pcs Cam Lock Bolt 16pcs Cam Lock 18pcs Umbrella Screw with washer 5/8"...
Page 11 PAGE 11 OF 11 STEP 13 Note: The long screw included is suitable for most wall situations. Use appropriate screw for your application. Do not overtightened the cable. WARNING! Anti-tipping hardware MUST be installed for your safety. STEP 14 QUESTIONS? Call 1-800-696-8446, or email cs@ptsamerica.com c 2019.

Delancey 7161bk586cuv69
