Summary of Contents for McGrath Locks MLA210

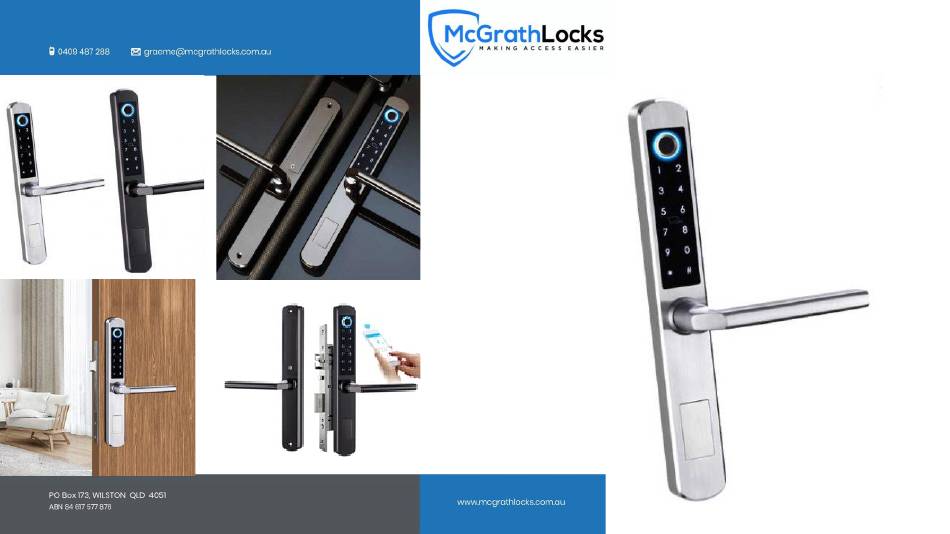

  • Page 1 MLA210 Digital Lock...
  • Page 2: Specifications

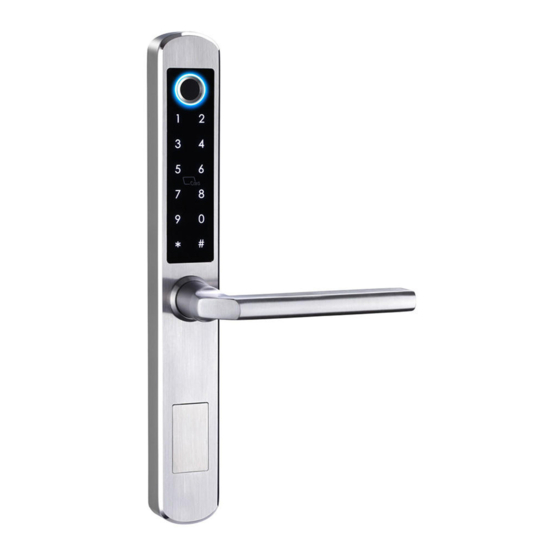

    MLA210 Digital Lock Description This 5 in 1 digital door lock represents a classic easy entry option for your home. A stylish door lock with a Bluetooth App, pin code, RFID card and fingerprint, manual key to provide quick and convenient access.
  • Page 3 MLA210 Digital Lock Mortises dimensions...
  • Page 4 MLA210 Digital Lock Lock Dimensions...
  • Page 5 INFORMATION AND SAFTY WARNINGS : 1.1 Introduction: This user manual will guide you through the functions and usages of our MLA210 Bluetooth enabled smart lock. It is important that you follow the instructions and regard all notes that appear throughout this manual.
  • Page 6: Preparing To Install

    MLA210 Digital Lock User Manual PREPARING TO INSTALL : 1.2 Determining Lever Handing: 1.1 Line Drawing The hand of the door is determined from the secure side of the door. The term “secure” means the side from Draw a horizontal centre line inside and outside the door at 1 meter from the ground. Fold which you initially unlock and enter from outside.
  • Page 7: System Specification

    MLA210 Digital Lock User Manual SYSTEM SPECIFICATION : Connectivity Bluetooth 4.0, Wi-Fi (Wi-Fi Bridge required) Case Material 304# stainless steel, ABS, Arcylic TTLock App, Fingerprint, Card (Mifare 13.56 MHz), Code IP Rating IP65 Identification Mode and Bluetooth Finish Satin Nickel or Black User Capacity Exterior Assembly - 330 x 43 x 22.5 mm...
  • Page 8: Exploded View

    MLA210 Digital Lock User Manual EXPLODED VIEW :...
  • Page 9 MLA210 Digital Lock User Manual Front Panel Back Panel...
  • Page 10 MLA210 Digital Lock User Manual RESET TO FACTORY STATE : MLA210 LOCK ACCESSORIES : Long press the reset button for 2 seconds until you can hear 2 beeps to set back into factory state. Default passcode is :123456. Under the factory state, the lock is always open state, only when you power The lock, the motor will reset and the handle will be in free state.
  • Page 11: Installation Steps

    MLA210 Digital Lock User Manual INSTALLATION STEPS : 5. Assemble the Strike and Box 1. Assemble the Mortise 3. Assemble the Front Panel 7. Test the Lock Assemble the mortise (C) into the slot which Tight the front panel on the door(outside).
  • Page 12 MLA210 Digital Lock User Manual Change Handle : 1.Adjust the Front Handle Direction 2. Adjust the Back Handle Direction 1.1 Use the allen key to take off the screw from the handle head. 2.1 Use the allen key to take off the screw from the handle head.
  • Page 13 MLA210 Digital Lock User Manual Operations for Bluetooth Digital Lock Contacts Address PO Box 173 Phone – Maintenance & Warranty Enquiries Wilston QLD 4051 0456 960 050 Phone – Sales Email – Enquiries 0409 487 288 info@mcgrathlocks.com.au...
