Summary of Contents for McGrath Locks MLX2

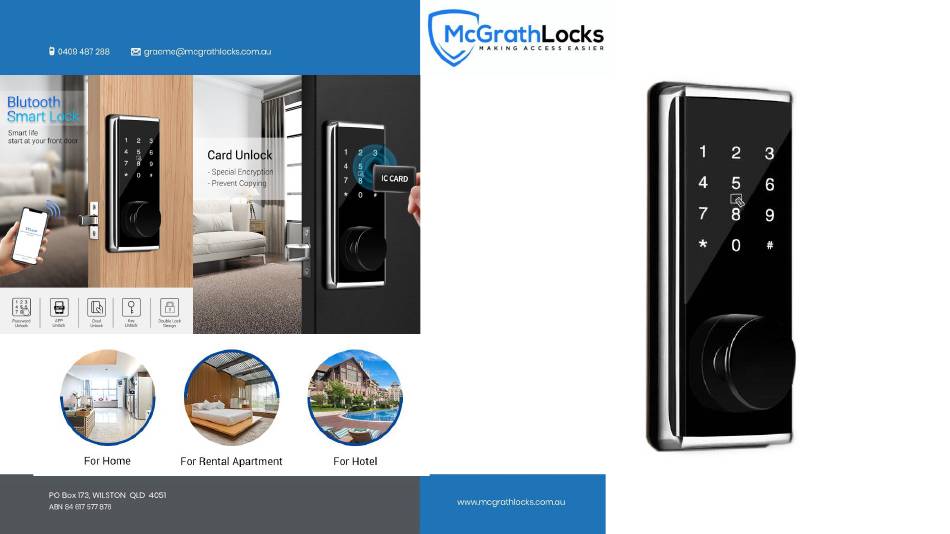

- Page 1 MLX2...
-
Page 2: Specifications
MLX2 Description This 4 in 1 digital lock has a dead bolt latch. A stylish lock with a Bluetooth App, pin code, RFID card and manual key to provide quick and convenient access. Specifications ▪ Unlocking methods: Bluetooth App, RFID Card, Pass code,Wristband or Key ▪... -
Page 3: System Specifications
MLX2 System Specifications Connectivity Bluetooth 4.0, Wi-Fi (Wi-Fi Bridge required) Case Material Aluminium Alloy Identification Mode TTLock App, Card (Mifare 13.56 MHz), Code and Bluetooth IP Rating IP65 User Capacity Finish Satin Nickel or Black Identification Time Instant recognition under 0.3 seconds... - Page 4 INFORMATION AND SAFTY WARNINGS : 1.1 Introduction: This user manual will guide you through the functions and usages of our MLX2 Bluetooth enabled smart lock. It is important that you follow the instructions and regard all notes that appear throughout this manual.
-
Page 5: Door Preparation
MLX2 Door Preparation Packing List 1. Check door thickness and Door Frame. Door frame≧110mm Door thickness: 38-48mm 2. Check door open direction. 1. Door drill hole map... - Page 6 MLX2 A) Outdoor lock body * 1 G) M4 x 25mm cross flat head bolt *1 B) Silicon gasket * 1 H) M4 x 30mm cross flat head bolt * 3 C) Mounting plate * 1 I) M4 x 10mm cross flat head bolt * 2...
- Page 7 MLX2 Installation Diagram Step 1 Step 2 According to the map drilling holes on the door. Install the deadbolt (E). Note: The deadbolt has TWO backset options: 60mm or 70mm, please Note: adjust it by yourself. 1) Check the required backset (60mm or 70mm).
- Page 8 MLX2 Installation Diagram Step 3 Step 4 Install outdoor unit (A). Install mounting plate (C). Keep the Note: Cable goes Note: The cable goes through spindle underneath the notch on the vertical. deadbolt. lower right part of the mounting plate at first.
- Page 9 MLX2 Installation Diagram Step 5 Install indoor unit (D). For Left-open door, For Right-open door, pls turn the switch to pls turn the switch to...
- Page 10 MLX2 Installation Diagram Step 5 Install indoor unit (D). Note: (1) For Right- open door, pls put the lock spindle VERTICALLY into the deadbolt, and the knob should also be turned to VERTICAL position. (2) For Left- open door, pls...
- Page 11 MLX2 Installation Diagram Step 6 Step 7 Install 4 pieces AA Alkaline batteries. Mark and drill holes for strike. Testing the lock by rotating the knob on unit D and using mechanical key(K).
- Page 12 MLX2...
