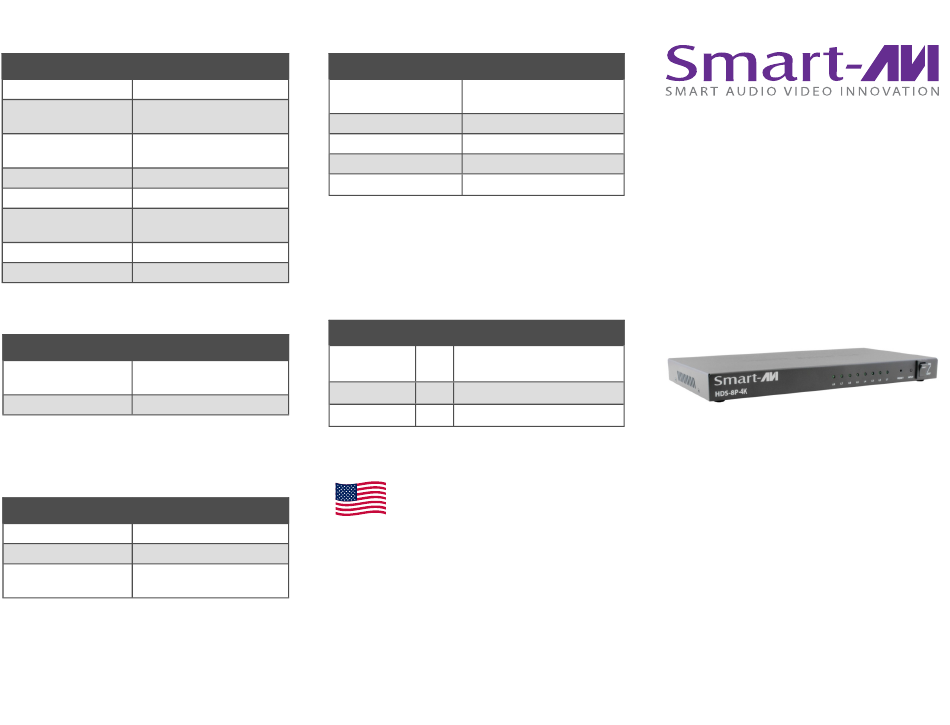

TECHNICAL SPECIFICATIONS
VIDEO
HDMI
1.4a
Resolution
Up to 4K (3840x2160
@60Hz)
Audio
Stereo; DTS, Dolby-TRUEHD,
AC3, DSD-HD
Max Bandwidth
340MHZ
Max Baud Rate
10.2Gbps
Inputs
1 HDMI
Outputs
8 HDMI
Color
24bit/30/bit/36bit/48bit
Cable Distance
Input Cable
50ft (15m) HDMI
Output Cable
65ft (20m) HDMI
Power
TMDS signals
0.5~1.5Volts p-p(TTL)
DDC Signals
5Volts p-p(TTL)
Adaptor
AC 50/60HZ 100-240V
[DC5V-12V]
OTHER
Operating Temperature -15 to 55℃
Operating Humidity
5-90% (no condensation)
Weight
2 lbs
Approvals
UL, CE, ROHS Compliant
Dimensions
9.4"x5.4"x1.0"
WHAT'S IN THE BOX
PART NO.
QTY DESCRIPTION
HDS8P-4K-S
1
8-Port HDMI Splitter
PS5VDC4A
1
Power Supply
User Manual
1
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200
Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com
HDS8P-4K
User Manual
4k-ready, 8 Port HDMI Splitter
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SMART-AVI HDS8P-4K
Summary of Contents for SMART-AVI HDS8P-4K
- Page 1 Up to 4K (3840x2160 @60Hz) Operating Humidity 5-90% (no condensation) Audio Stereo; DTS, Dolby-TRUEHD, Weight 2 lbs AC3, DSD-HD Approvals UL, CE, ROHS Compliant HDS8P-4K Max Bandwidth 340MHZ Dimensions 9.4”x5.4”x1.0” Max Baud Rate 10.2Gbps Inputs 1 HDMI User Manual Outputs...
- Page 2 1. Connect HDS8P-4K HDMI input to signal source. Front Panel Control To activate the HDS8P-4K, plug in the device and 2. Connect the HDS8P-4K HDMI outputs to displays, monitors, or projectors. switch the On/Off switch to the on position. 3. Connect HDS8P-4K to power supply.
