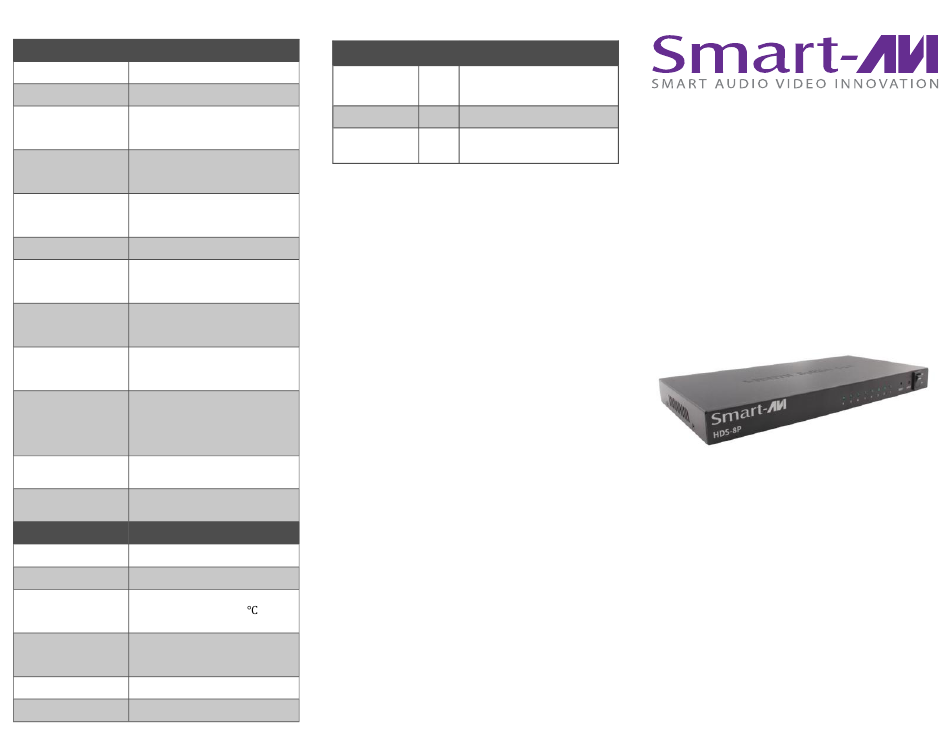

SMART-AVI HDS-8P Quick Start Manual

TECHNICAL SPECIFICATIONS
VIDEO
Ports HDMI Standard (Female)
HDMI Version HDMI 1.4a, 3D
576i / 576p / 720p / 1080i /
HDMI Resolution
1080P / 4K
Max Signal Link
4K x 2K@30Hz
Range
Support video color 24bit/deep color 30bit, 36bit,
format 48bit
Max Bandwidth: 2.97Gbps
Input/Output TMDS
0.5~1.5 volts p-p(TTL)
Signal
Input/Output DDC
5 volts p-p (TTL)
Signal
HDMI 1.4a +
Output Video
HDCP1.0/1.1/1.2/1.3
DTS-HD/Dolby-trueHD/
Digital audio format LPCM7.1/DTS/Dolby-AC3/DSD
HD(HBR)
20 Ft. HDMI AWG26 HDMI stan-
Input cable distance
dard cable
20 Ft. AWG26 HDMI standard
Output cable distance
cable
OTHER
Power Supply DC 5V/4A
Max working current 3A
Operating Tempera-
5 to 130°F (-15 to +55 )
ture Range
Operating Humidity
5 to 90% RH (No Condensation)
Range
Dimensions 11" W x 5.5"D x 1.0" H
Weight 1.55 lbs.
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
ULTRA HD 4K 1x8 port HDMI
HDS-8P-S 1
Splitter
Power Supply 1 PS5VDC4A
Quick Start
1
Guide
Brackets for mounting this device in a standard 19"
rack can be ordered from SmartAVI.
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages
in connection with the furnishing, performance or
use of this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
20170201
800.AVI.2131
Tel: (818) 503-6200 | Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com
HDS‐8P
8-Port HDMI Splitter
ULTRA HD 4K

Quick Start Guide
