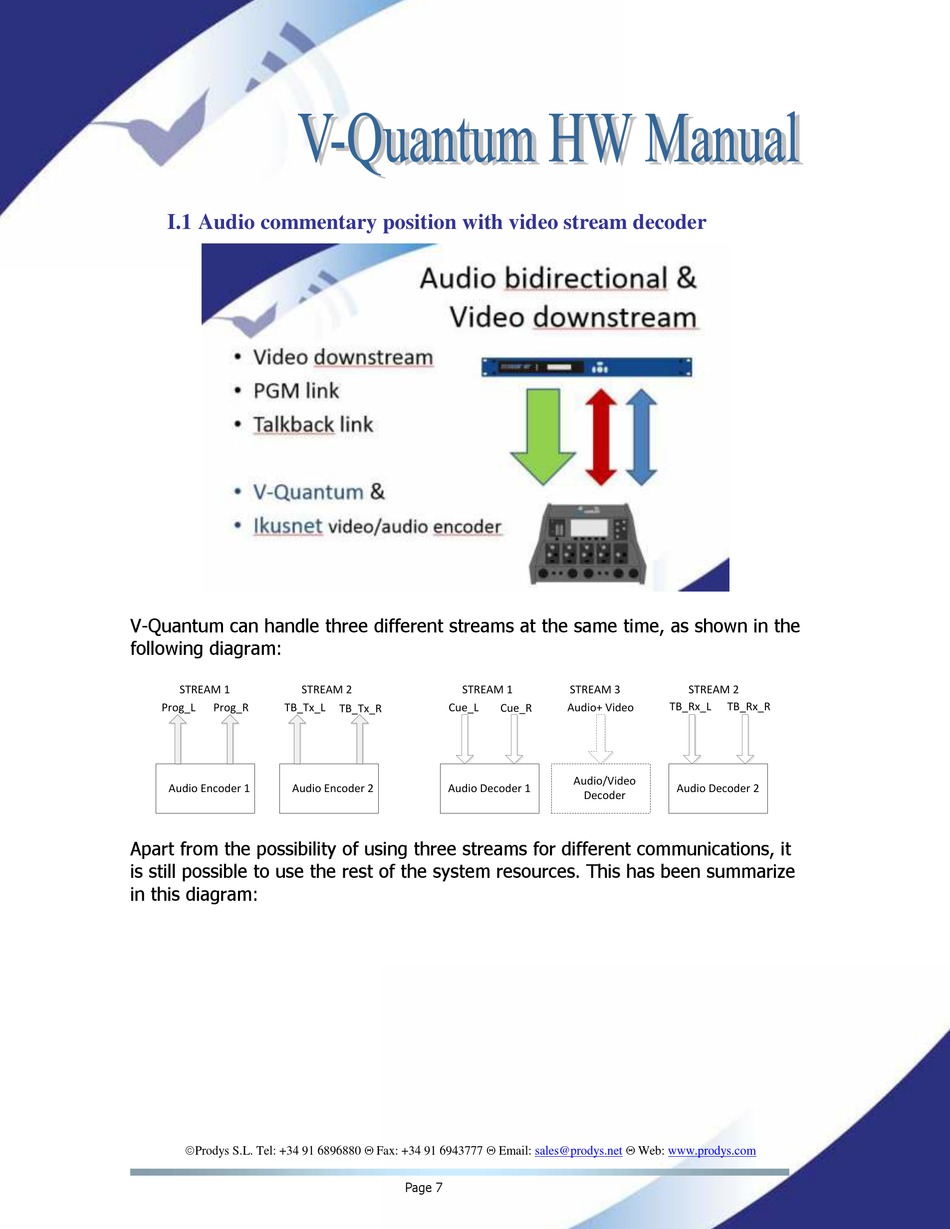

I.1 Audio commentary position with video stream decoder
V-Quantum can handle three different streams at the same time, as shown in the
following diagram:
STREAM 1 STREAM 2
Prog_L Prog_R TB_Tx_L
Audio Encoder 1 Audio Encoder 2
Apart from the possibility of using three streams for different communications, it
is still possible to use the rest of the system resources. This has been summarize
in this diagram:
