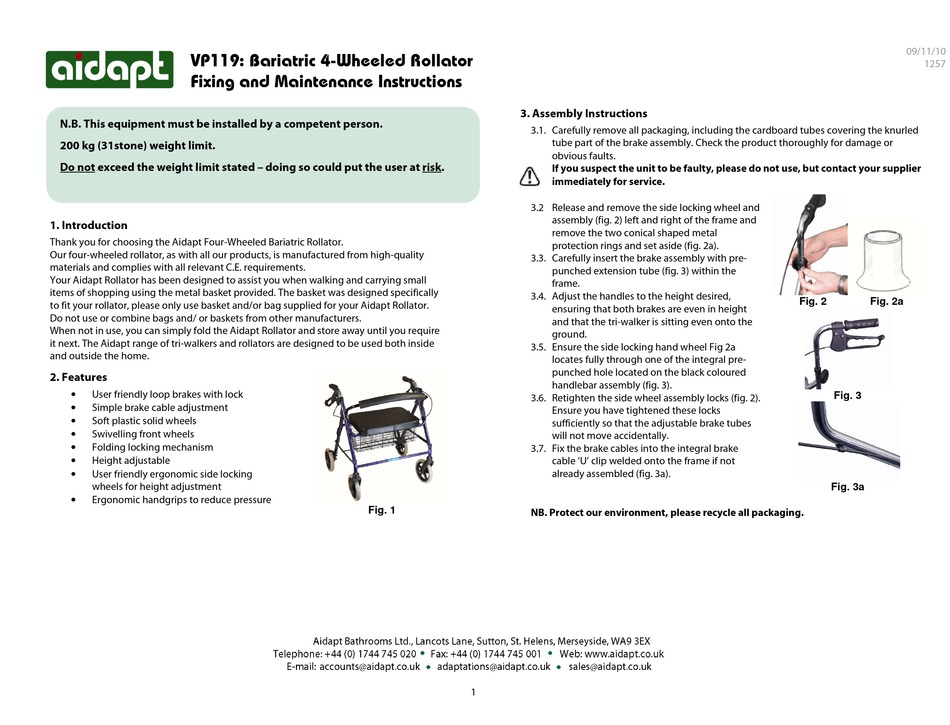

VP119: Bariatric 4-Wheeled Rollator
Fixing and Maintenance Instructions
N.B. This equipment must be installed by a competent person.
200 kg (31stone) weight limit.
U U D o notU U exceed the weight limit stated – doing so could put the user at U U r iskU U .

1. Introduction

Thank you for choosing the Aidapt Four-Wheeled Bariatric Rollator.
Our four-wheeled rollator, as with all our products, is manufactured from high-quality
materials and complies with all relevant C.E. requirements.
Your Aidapt Rollator has been designed to assist you when walking and carrying small
items of shopping using the metal basket provided. The basket was designed specifically
to fit your rollator, please only use basket and/or bag supplied for your Aidapt Rollator.
Do not use or combine bags and/ or baskets from other manufacturers.
When not in use, you can simply fold the Aidapt Rollator and store away until you require
it next. The Aidapt range of tri-walkers and rollators are designed to be used both inside
and outside the home.

2. Features

User friendly loop brakes with lock
•
Simple brake cable adjustment
•
Soft plastic solid wheels
•
Swivelling front wheels
•
Folding locking mechanism
•
Height adjustable
•
User friendly ergonomic side locking
•
wheels for height adjustment
Ergonomic handgrips to reduce pressure
•

3. Assembly Instructions

3.1. Carefully remove all packaging, including the cardboard tubes covering the knurled
3.2 Release and remove the side locking wheel and
3.3. Carefully insert the brake assembly with pre-
3.4. Adjust the handles to the height desired,
3.5. Ensure the side locking hand wheel Fig 2a
3.6. Retighten the side wheel assembly locks (fig. 2).
3.7. Fix the brake cables into the integral brake

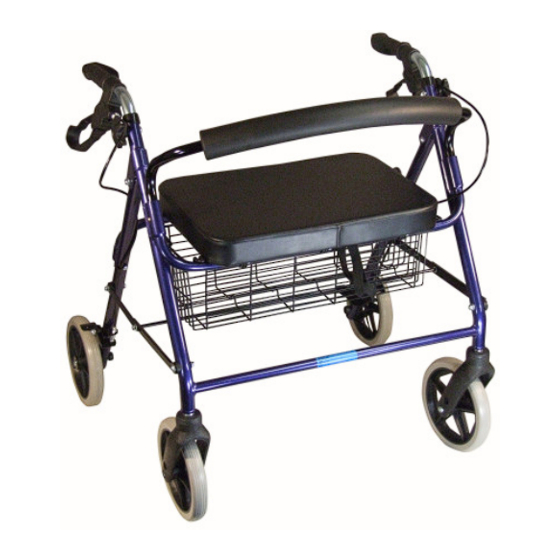

Fig. 1
NB. Protect our environment, please recycle all packaging.
1
tube part of the brake assembly. Check the product thoroughly for damage or
obvious faults.
If you suspect the unit to be faulty, please do not use, but contact your supplier
immediately for service.
assembly (fig. 2) left and right of the frame and
remove the two conical shaped metal
protection rings and set aside (fig. 2a).
punched extension tube (fig. 3) within the
frame.
ensuring that both brakes are even in height
and that the tri-walker is sitting even onto the
ground.
locates fully through one of the integral pre-
punched hole located on the black coloured
handlebar assembly (fig. 3).
Ensure you have tightened these locks
sufficiently so that the adjustable brake tubes
will not move accidentally.
cable 'U' clip welded onto the frame if not
already assembled (fig. 3a).
09/11/10
1257
Fig. 2 Fig. 2a
Fig. 3
Fig. 3a
