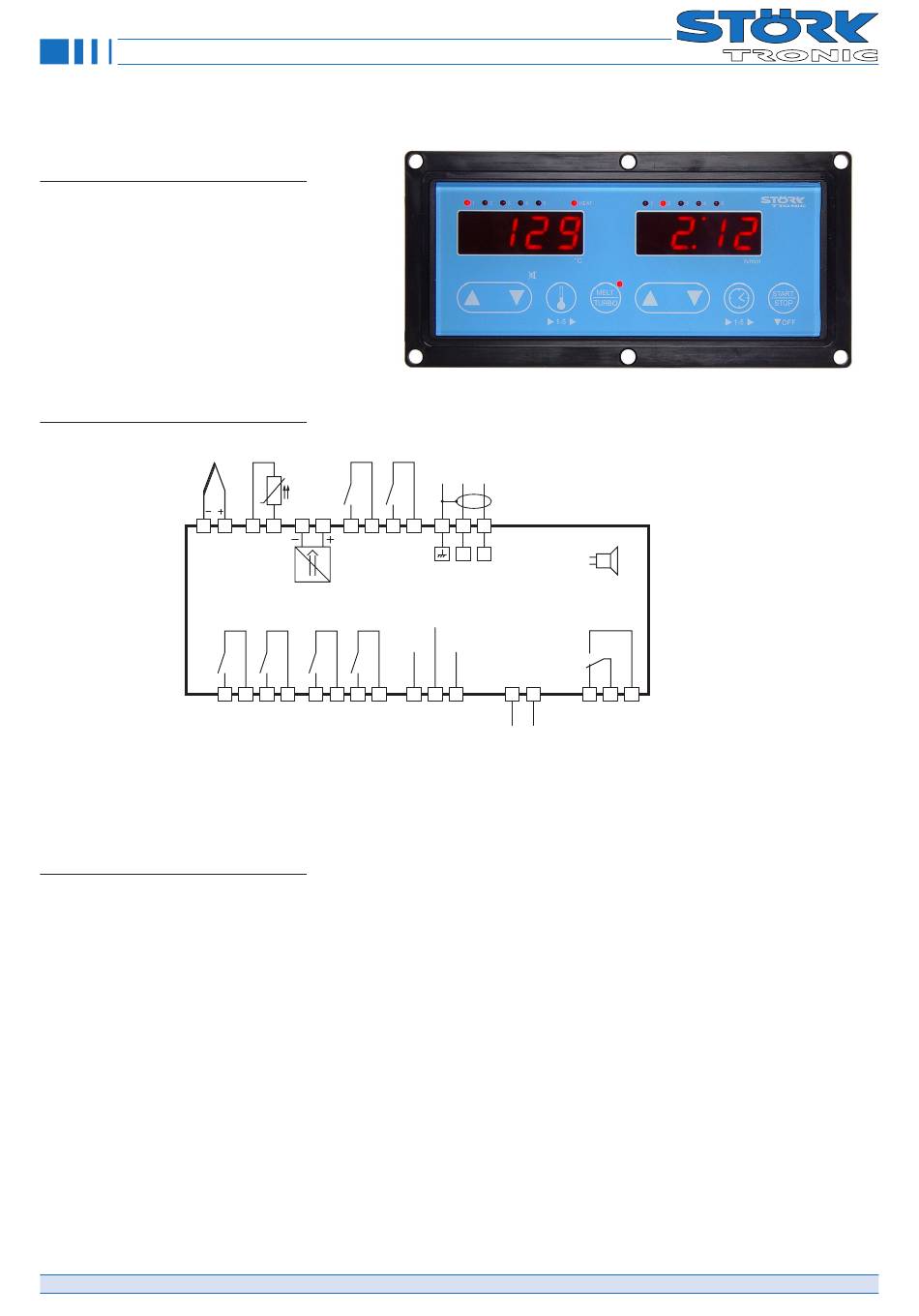

ST552G-XQ1TUR.109
Deep-frying controller
Order number: 900350.053
As of: 02.11.2021 V2.73
Wiring diagram
F1
TC
2
Product description
The ST552G fryer controller consists of a mineral glass-based touch panel that can be easily integrated into existing or
newly constructed installations. The controller can be supplied with a voltage of 100...240V AC and has two displays, five
switching outputs and two digital switching inputs. A temperature sensor type Pt100 or a thermocouple can be connected.
Five LEDs each indicate the selected temperature setpoint and the selected time setpoint.
The controller is networked by means of an ST-Bus interface.
Sensor:
Thermo couple, Pt100
Range:
dependant on type of sensor
Front size:
154,8mm x 61,8mm
Installation size:
180 x 87mm
Tightness:
Front IP65
Connectors:
Screw terminal
Order number: 900350.053
F1
E2
Pt100
1
2
1
4
2
1
3
2
T _
S2: 4...20mA
K1...K4: 8(1,5)A 250V~
K1
K2
K3
K4
3
3
1
2
4
1
2
4
© Störk-Tronic 2021 • www.stoerk-tronic.com • Subject to modifications.
E1
RS485
ST-Bus
3
2
1
1
B
A
S1: PWM
Power
PWM
PWM
Out
GND
3
1
2
1
2
L
N
100...240V~
V2.73
8(1,5)A
250V ~
K7
3
1
2
Page 1
Advertisement
Table of Contents
Related Manuals for Störk-Tronic ST552G-XQ1TUR.109
Summary of Contents for Störk-Tronic ST552G-XQ1TUR.109
- Page 1 ST552G-XQ1TUR.109 Deep-frying controller Order number: 900350.053 As of: 02.11.2021 V2.73 Wiring diagram Pt100 RS485 ST-Bus S2: 4...20mA S1: PWM 8(1,5)A Power 250V ~ K1...K4: 8(1,5)A 250V~ 100...240V~ Product description The ST552G fryer controller consists of a mineral glass-based touch panel that can be easily integrated into existing or newly constructed installations.
-
Page 2: General Notes
General notes Design Four NO contacts and one changeover con- selected. In these alarm cases, the control tact are provided as output relays. The func- continues to run. An internal buzzer allows The unit is designed as a complete installa- tion “heating thermostat 1”... - Page 3 General notes The down button is also used for acknowl- acteristics. The “Superturbo” option must be Key 8: START/STOP edgement of the buzzer. Since the timer re- enabled with . The status lamp always As soon as this button is pressed mains active when parameterisation mode is indicates the active “Superturbo”...
-
Page 4: Parameter List
Parameter list Para- Description of function Setting range Default Cust. meter value value General control parameters Delta W control circuit 2 -99...+99.0 K 10.0 K Hysteresis control circuit 1 0.1...99.0 K 1.0 K Hysteresis control circuit 2 0.1...99.0 K 1.0 K Bottom setpoint limitation 0...999 °C 0 °C... - Page 5 Parameter list Para- Description of function Setting range Default Cust. meter value value Temperature scale 0: Fahrenheit 1: Celsius Message in case of overtemperature Display in case of standby off Blinking mode during timer 0: during buzzer (when the timer has elapsed, is effective) 1: during buzzer and after timer has elapsed 2: different blinking intervals during/after the...
- Page 6 Parameter list Para- Description of function Setting range Default Cust. meter value value Fan Parameters Minimum speed at fan 0...100 % (PWM/analogue signal) 30 % Maximum speed at fan 0...100 % (PWM/analogue signal) 100 % Maximum speed increase per 0.1 sec. 1...250 stages 4 stages Correcting variable in case of clocked operation...
-
Page 7: Function Description
Function description Para- Description of function Setting range Default Cust. meter value value Timer characteristics Timer function 0: without multiple starts 1: with multiple timer starts Address + version Controller address 1...255 Program version ----- LowFat- and NoContact control Temperature behaviour of the different designs setting Example A:... - Page 8 Function description Test heating procedure and alarm Selection parameter post-frying Heating mode “Gas+Fan” Restart with controller switched off: conditions time Control at the heating input will be activat- ed upon request by the controller part. After Once after start With parameter , you can define if the that, the system waits for receipt of the feed- After switching on the controller, it once exe-...
- Page 9 Function description Control function After significant cooling to temperatures be- and restart, the controller is in normal oper- low 50 °C, e.g. loading of large quantities of ation mode with slow heating phase when cold fat, the slow heating function is activat- the controller is switched on and started or Heating phase without manual interven- ed again.
- Page 10 Function description Operation of the timer group Heat clocking with burner: Longer blinking of the timer lamps: =3, the heating clocking is affected It is possible to let the timer lights flash at by switching the automatic burner device on timer end for up to 3 minutes.
-
Page 11: Status Messages
Status messages Display Cause Remedy Sensor error Check sensor (Heating relay and analogue output are switched off!) Sensor error on compensation element for thermocouple Repair of controller measurement ( =1,2) ----- Overtemperature at E2 ( ----- Overtemperature at E2 ( Alarm of the LowFat or NoContact control settings Check oil level and/or switch on/off by press- ing OFF button... -
Page 12: Technical Data
Technical data Analogue inputs Temperature sensor Pt100 or thermocouple TC Measuring range: Pt100 -80...+400 °C -50...+400 °C Measuring accuracy referred to controller at 25 C: +/-0.5 K and +/-0.5 % of measuring range Digital inputs External start-stop button Overtemperature signal contact from temperature limiter Switching outputs Relay, 8(1.5) A / 250 V~, normally-open contact (heating contact) Relay, 8(1.5) A / 250 V~, normally-open (control contact 2)
