Boxfish 360 Quick Start Manual

Boxfish 360 Quick Start Guide
1 Introduction
This Quick Start Guide is a summary of tasks to prepare the Boxfish 360 for use in
the field. Please refer to the Boxfish 360 Owner's Manual for full instructions.

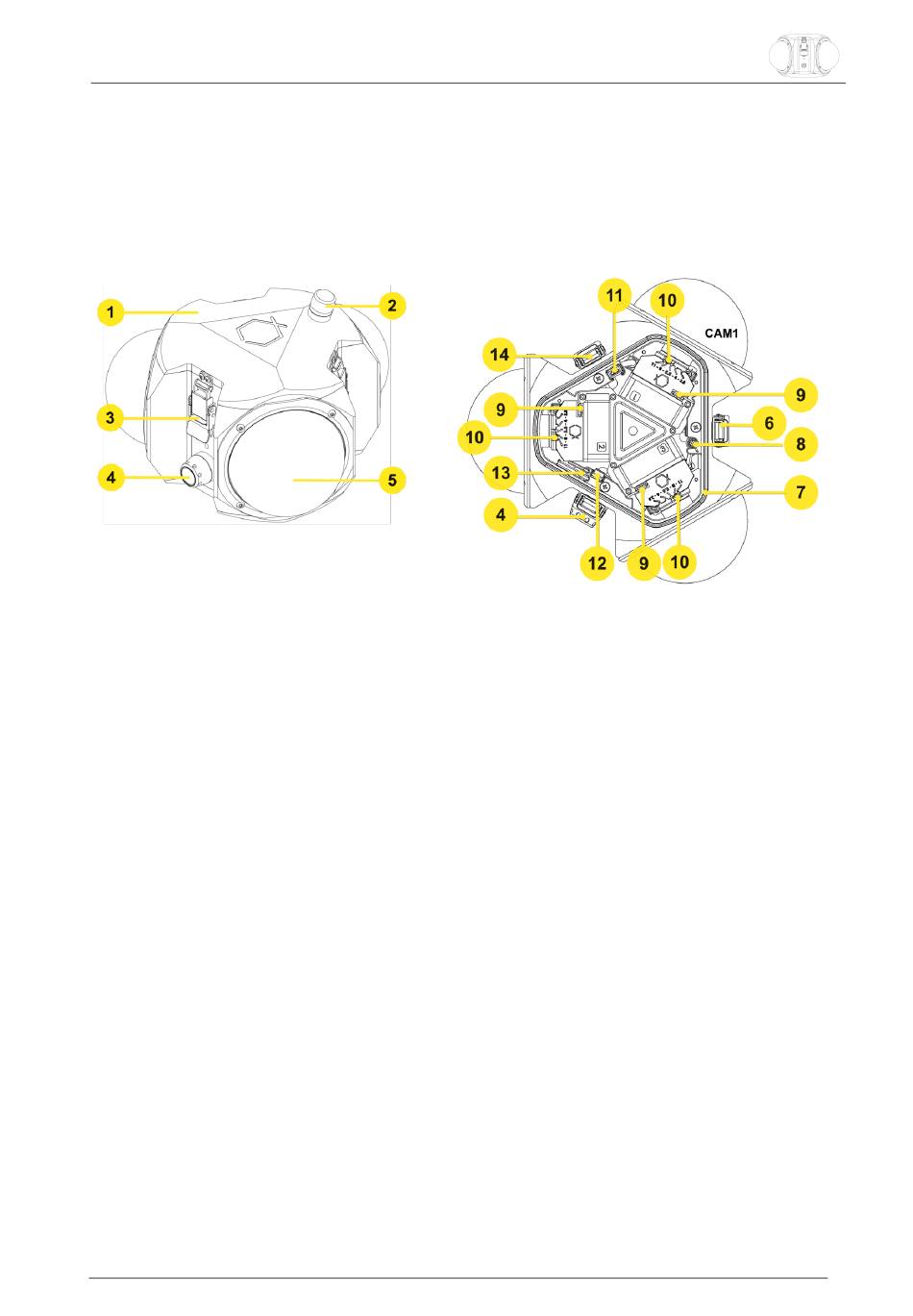

2 360 overview
1. Top lid
2. Vacuum port
3. Latch safety catch
4. Recording start/stop button
5. Dome
6. Depth sensor
7. Main O-ring
8. Charging port / DC plug for
Recording Extender adapter
3 Charging and setup
Press the safety catch (3) on each latch (2) to open the latches. Remove the lid (1).
Install battery packs into each camera. Connect the charging cord to the charging
port (8) and wall outlet to charge the camera batteries (note: if you have the
optional Recording Extender, remove its power adapter if in place in the charging
port). Wait until the orange charging LED inside CAM1 dome switches off to
indicate batteries are fully charged.
Configure and erase memory cards in the Boxfish App (do not format cards inside
the cameras) and install cards in each camera.
Turn on each camera by pressing its yellow power lever inwards (9) for three
seconds. If you wish to record timelapse photos, press each camera's lever again
to switch them into photo mode. In photo mode, the icon on the top left of each
camera's main screen will display a camera icon.
p1
All rights reserved. Information and specifications may change at any time without notice.
9. Camera power button levers
10 Aperture adjustment levers
11. Micro USB port
12. Grabber for memory cards
13. Hex keys
14. Monopod/tripod mounting point
