Boxfish 360 Quick Start Manual

Boxfish 360 Quick Start Guide
1

Introduction

Use this guide as a quick reminder of tasks required to use the Boxfish 360 in the
field. Please become familiar with the Boxfish 360 Owner's Manual before using
this guide.

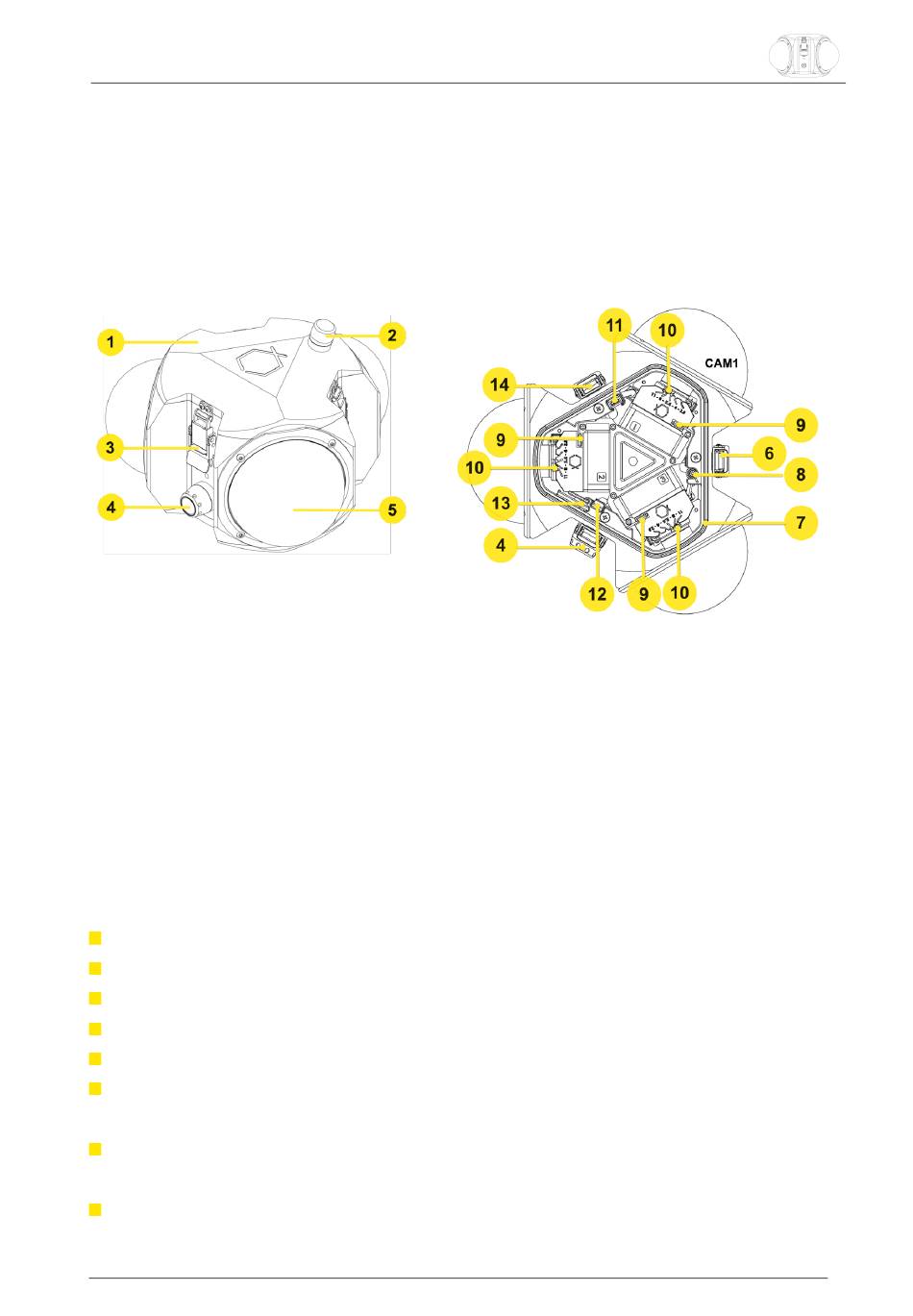

2 Hardware overview

1. Top lid
2. Vacuum port
3. Latch safety catch
4. Recording start/stop button
5. Dome
6. Depth sensor
7. Main O-ring
8. Charging port / DC plug for
Recording Extender adapter

3 Preparation for use

At least several hours in advance of your dive, complete the following:
Use the Boxfish app to erase the memory cards and write config files
Use the Boxfish app to ensure 360 software has your desired settings
Put the memory cards into each camera
Fully charge the 360 (with batteries inside all cameras)
Set each Z Cam E1 cameras with your desired settings
(If using) Fully charge the Recording Extender batteries and place into
compartments
Check main O-ring (7) is in good condition and lubricated, and that domes (5)
are clean and free of dust and dirt
Lubricate mounting screws on accessories (floats, monopod, tripod) with
silicone grease before attaching to the 360.
p1
All rights reserved. Information and specifications may change at any time without notice.
9. Camera power button levers
10 Aperture adjustment levers
11. Micro USB port
12. Grabber for memory cards
13. Hex keys
14. Monopod mounting point
- (on bottom) Tripod mounting point
