- Page 1 S5864H Hardware Installation Manual...
-
Page 2: Table Of Contents
2.3.3 Cabinet Configuration......................7 2.3.4 Power Requirements......................8 2.4 Installation Tools and Device......................Chapter 3 Installing the S5864H Switch...................... 3.1 Installation Flow of S5864H......................9 3.2 Installing the Machine Box of the Switch..................9 3.2.1 Installing the Machine Box on the Desk................9 3.2.2 Installing the Machine Box on the Cabinet..............10... - Page 3 3.3.1 Connecting the Console Port.................... 10 3.3.2 Connecting 10GE Ethernet SFP+ Ports................12 3.3.3 Connecting Ethernet Management Ports................ 3.3.4 Connecting 40GE Ethernet QSFP+ Ports...............13 Table of Contents 3.3.5 Connecting 100/40GE Ethernet QSFP28 Optical Ports..........14 1.3.6 USB Interface........................16 3.4 Checking After Installation......................16 Chapter 4 Maintaining Switch........................
- Page 4 5.2 Indicator Description........................19...
-
Page 5: Chapter 1 S5864H Introduction

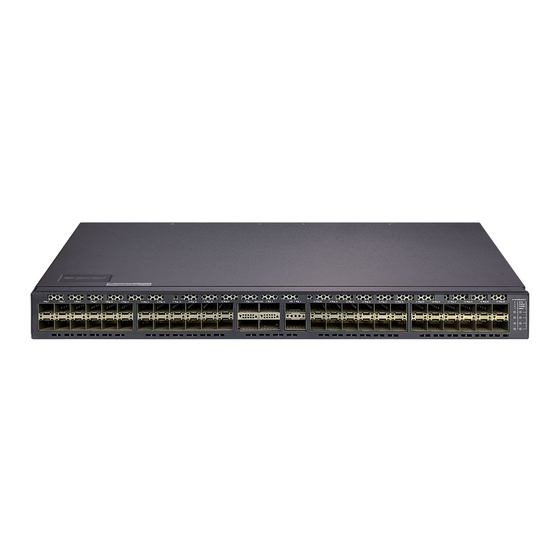

S5864H. 1.1 Appearance Description for Standard Configuration The built-in ports of S5864H are: 48 10Gbps SFP+ ports, 4 100Gbps QSFP28 optical ports, 2 40Gps QSFP+ optical ports, 1 console port, 1 gigabit management port and 1 See table 1-1. -
Page 6: S5864H Systematic Characteristic Parameters
S5864H Hardware Installation Manual Figure 1- 2 Back template of the S5864H switch Table 1-3 Parts at the back template of the S5864H switch Abbrev. Name Description 1,3,9,11 Grounding column The grounding must be fine. POWER 2，10 AC power supply... - Page 7 S5864H Hardware Installation Manual RFC 1157 SNMP v1/v2 Network management RFC 1213 MIB II standard RFC 1757 RMON 1,2,3,9 Flash Memory: 64M Bytes Memory SDRAM: 512Mbytes; 48 SFP+ 10GE optical ports; 4 QSFP28 100/40Gbps optical ports; 2 QSFP+ 40Gbps optical ports;...
-
Page 8: Rohs Description
Similar to other electronic products, the semiconductor chip easily gets damaged if you power on or off abruptly and frequently. To restart up the switch of S5864H, you have to open the power on-off after the power is cut down for three to five seconds. -
Page 9: Safety Advice
S5864H Hardware Installation Manual Use correct outside ports to connect the switch of S5864H. Do not put the Ethernet plug into the console port (RJ45 8-line socket). Similarly, do not put the console cable into the console port (RJ45 8-line socket). -
Page 10: Electrostatic Discharge Damage Prevention
S5864H Hardware Installation Manual Put off ornaments, such as ring, necklace, watch and bracelet, before you operate under live working. When metal articles connect the power to the ground, short circuit happens and components may be damaged. Pull out the AC power socket and close the direct-current power before operating on the machine box or working beside the power source. -
Page 11: Environment
S5864H Hardware Installation Manual 2.3.1 Environment The switch can be installed on the desk or the cabinet. The location of the machine box, cabinet planning and indoor cabling are very important for normal system’s function. Short distance between devices, bad ventilation and untouchable control plate will cause maintenance problems, systematic faulty and breakdown. -
Page 12: Installation Tools And Device
2.4 Installation Tools and Device The tools and devices to install the S5864H switch are not provided by the S5864H switch. You yourself need to prepare them. The following are the tools and devices needed for the typical installation of the S5864H switch: ... -
Page 13: Installing The Machine Box Of The Switch
Installing the machine box on the cabinet 3.2.1 Installing the Machine Box on the Desk The S5864H switch can be directly put on the smooth and safe desk. Note: Do not put things weighing 4.5 kg or over 4.5 kg on the top of the switch. -
Page 14: Connecting The Port
STAR-510G+ or PC through a console cable, you can configure and monitor the switch of S5864H by running a terminal emulation software, such as super Windows terminal. The cable is provided according to the host. The communication parameters of the terminal serial port can be set to a rate of 9600bps, eight data bits, one stop bit, no sum check bit and traffic control. -
Page 15: Connecting 10Ge Ethernet Sfp+ Ports
One end is RJ45 8-core plug, and the other end of the console cable is 9-hole plug (DB9). The RJ45 plug is put into the socket of the console port on the S5864H switch. The inner line connection in the cable is shown in figure 3-1. The console cable is numbered as RLC0301. -
Page 16: Connecting Ethernet Management Ports
S5864H can adopt five types of direct-through/cross network cables when it connects other Ethernet terminals. Figure 3-8 Connecting the 1000Base-TX port and other Ethernet terminals Caution: The switch shown in figure 3-8 does not represent the material S5864H. Table 3- 2 Pins of Gigabit RJ45 Pin Name... -
Page 17: Connecting 40Ge Ethernet Qsfp+ Ports
Sending/receiving the paraphase of the data 3 TP3- 3.3.4 Connecting 40GE Ethernet QSFP+ Ports S5864H provides with 2 40GE QSFP+ ports. Each port has its corresponding indicator: 40G 1~2. The four ports can be configured into 2 modes: Set the rate of the port to 40Gbps... -
Page 18: Connecting 100/40Ge Ethernet Qsfp28 Optical Ports
S5864H Hardware Installation Manual Caution: The switch shown in figure 3-9 does not represent the material S5864H. 3.3.5 Connecting 100/40GE Ethernet QSFP28 Optical Ports S5864H provides with 4 100/40GE QSFP28 ports. Each port has its corresponding indicator: 40G/100G 1~4. In use, the four ports can be configured into three modes: 1. -
Page 19: Usb Interface
Figure 3-13 Connecting 100GE QSFP28 optical ports (configured to be 4 10GE ports) and other Ethernet terminals 1.3.6 USB Interface S5864H provides with 1 USB2.0 interface. Figure 3-14 Connecting USB2.0 interface 3.4 Checking After Installation Before electrically starting up the switch, perform the following checkups after the switch is installed: ... -
Page 20: Chapter 4 Maintaining Switch
S5864H Hardware Installation Manual Check whether the switch is correctly connected to other terminal devices. Chapter 4 Maintaining Switch Caution: Before opening the machine box, make sure that you have released the static you carried and then turn off the power on-off of the switch. Before operating any step in Appendix B, read the section “Safety Advice”. -
Page 21: Closing Machine Box
S5864H Hardware Installation Manual When the cover is opened, put it aside. The mainboard of the system appears. Note: After taking off the cover, put it horizontally and avoid it to be crushed or collided. Otherwise, the machine box is hard to install. -
Page 22: Faults Relative With Port, Cable And Connection
9600 bps, eight data bits, no sum check bit, one stop bit and no traffic control. 5.2 Indicator Description The LED indicator shows that the switch is running. The following table shows the indicators of the S5864H switch and their description: Abbrev. Name Description... - Page 23 S5864H Hardware Installation Manual If the indicator is always on, the port is normally linked. If the indicator is off, the port is not linked. 1~48 (LINK/ACT) SFP+ port indicators port indicator flickers, there data transmission. working in the mode of 40GE If the indicator is always on, the port is normally linked.
- Page 24 S5864H Hardware Installation Manual Working in the mode of 40GE, the indicator of BREAKOUT is off The 40GE port breaks out into 4 10GE ports, which combines with QSFP+ port 40GE The 40GE port breaks out into indicators. 4 10GE port indicators.
- Page 25 S5864H Hardware Installation Manual Figure 5-3 QSFP+ port indicator Figure 5-4 QSFP28 port indicator Figure 5-5 Backplane Indicator - 21...
- Page 26 S5864H Hardware Installation Manual Copyright Claims Without the written approval of the company , any person or group cannot transcribe, copy or change partial or all contents of this manual, and must not broadcast it in any manner. Trademark claims Trademarks, product names, service names and company names, which are written in this manual but do not belong to the company, belong to their owners respectively.
