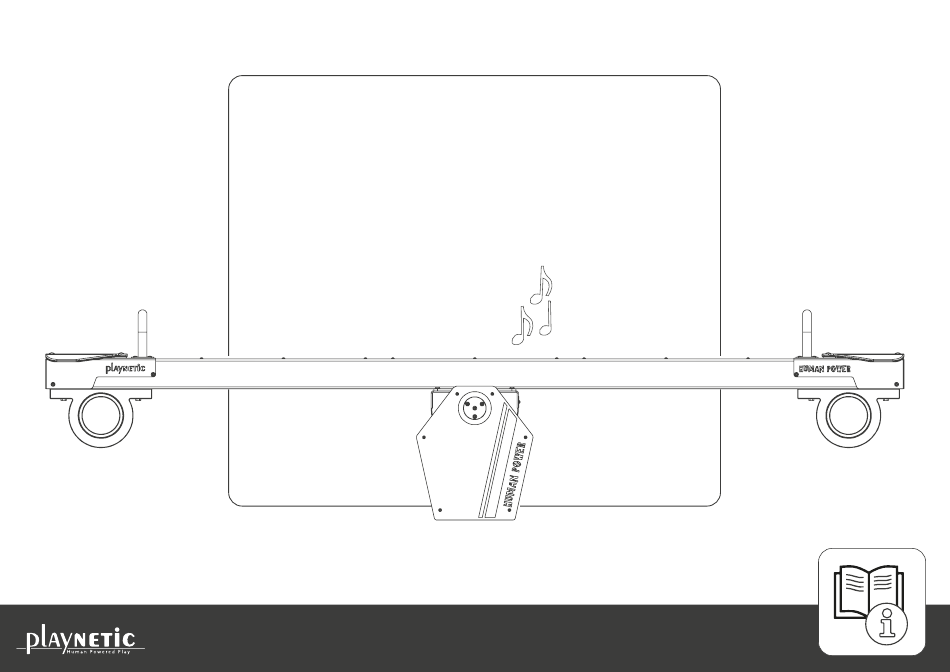

- Page 1 KineticSeesaw User Manual SS90018_19022020 Loohorst 3 | 7207 BL Zutphen | The Netherlands info@playnetic.nl | www.playnetic.nl | +31(0)575-843612...
-
Page 2: Maintenance
Install the Product Overview Product Check Interactive Elements Control the Volume Play and Test Change the Content Install and Manage a Timelock Maintenance Reset the LED Loohorst 3 | 7207 BL Zutphen | The Netherlands info@playnetic.nl | www.playnetic.nl | +31(0)575-843612... - Page 3 Install the Product Number of Users Install the product according to the Playnetic Installation Manual. Playnetic recommends you to use the product with a maximum of During the installation, make sure that the potential users can not two users. be exposed to hazards / dangerous situations. Check the stability of the product.
- Page 4 3. Test if the LED line runs in the correct direction on the beam. 3. Generate energy with the product. 4. Adjust the volume. *Are the tests incorrect? Then change the content and reset 5. Close the service hatch. the LED. Follow the instructions in the Playnetic User Manual. Volume...
- Page 5 Change the Content USB port 1. Get a USB stick. Make sure that you meet the following requirements: a. Only use MP3-files. b. The name of the MP3 file needs to have at least 5 characters. c. The name of the MP3 file can’t contain any strange characters. d.
- Page 6 Change the Content 4. Put the USB stick into the computer. 5. Generate energy with the product. Wait until the update is completed. Remove the USB stick after completion. 6. Make sure that you put the dust cover back over the USB port. 7.
- Page 7 “In progress, please wait...” Receive Timelock 1. Receive a USB device. Playnetic has set the correct start- and endtime for you. Install and Manage a Timelock 1. Remove the bolts with the supplied hex key. 2. Remove the service hatch.
- Page 8 Reset the LED When do you use the LED switch? You almost never have to use this switch because Playnetic always programs the LED-line correctly before the product leaves our factory. But sometimes it might happen that you have to recalibrate the LED-line. For example when the ground on location has a raised surface.
- Page 9 LED Switch 4. Generate a lot energy (+/- 20sec) 5. Place the beam of the seesaw parallel to the ground and set the switch to I. 6. Place the beam of the seesaw to the lowest position and set the switch back to O. 7.
