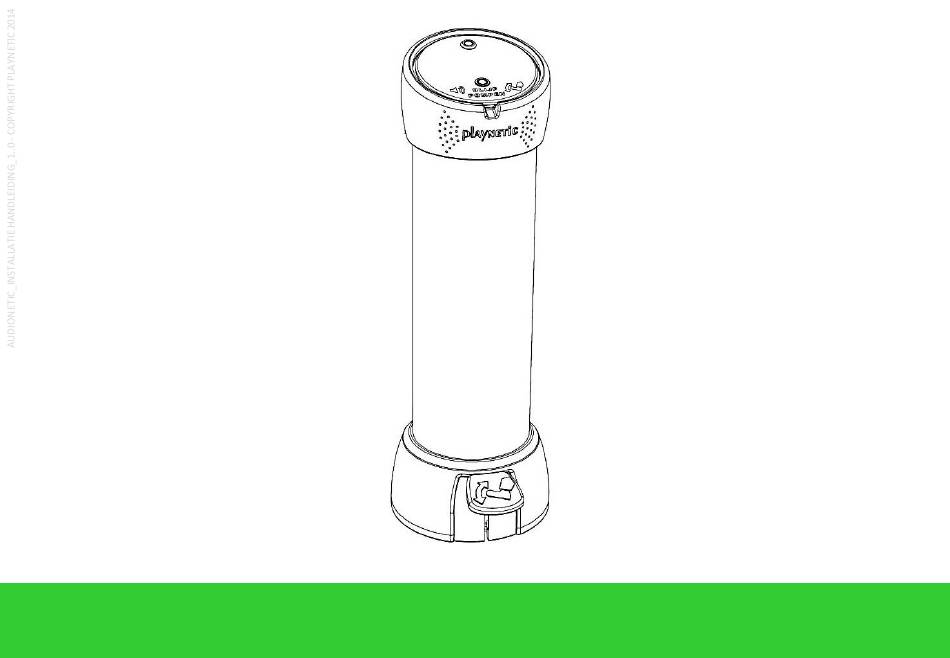

  • Page 1 Audionetic – Installation manuel...
  • Page 2: Before Installation

    1. Check using the part list if all parts are supplied correctly. Minimal 150 cm 2. Determine the place of the Audionetic. Take into account that there are no obstacles in the obstacle free zone. See picture. Make sure that during installation bystanders are not exposed to danger.
  • Page 3: Installation

    Installation Select the desired installation method for your application. For questions please contact your supplier. PERMANENT PERMANENT PREFAB Audionetic – Installation manuel...
  • Page 4 Installation cast Cast with concrete One can in itself determine the amount of concrete and with it the weight of the foundation (at least 64 litres concrete). 0 mm - 488 mm Audionetic – Installation manuel...
  • Page 5 Set the mounting frame above the mounting frame hole and fill it with concrete as in the right figure. Make sure the mounting Make sure the Audionetic is not used frame stands upright/level. until the concrete has hardened. Audionetic – Installation manuel...
  • Page 6 Dig a hole of 400 x 400 and 500 mm Use the bolt M10 x 20, spring deep. Set the Audionetic above the Make sure the Audionetic is not washer ø 10.2 mm and flat washer hole and fill it with concrete as in...
  • Page 7 Installation using prefab PERMANENT concrete block PREFAB -Great for in tile plateau (300x300mm); -Easy installation based on prefab concrete block. 0 mm - 350 mm Audionetic – Installation manuel...
  • Page 8 Audionetic. horizontal with the ground level. Secure plate with the 4 bolts. 2. Install the Audionetic with (4 x) bolts Dig a hole of at least 350 x 350 mm and (4 x) spring washer and 350 mm deep.
