BXB Electronics FCS-6350 Quick Start Manual

FCS-6350 Conference Main Control Unit Quick Start Guide

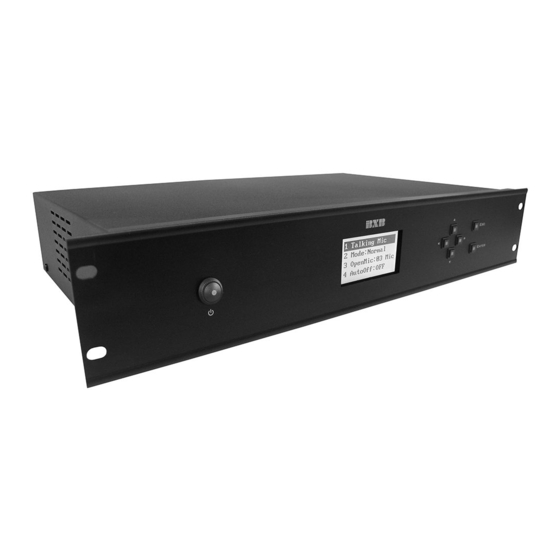

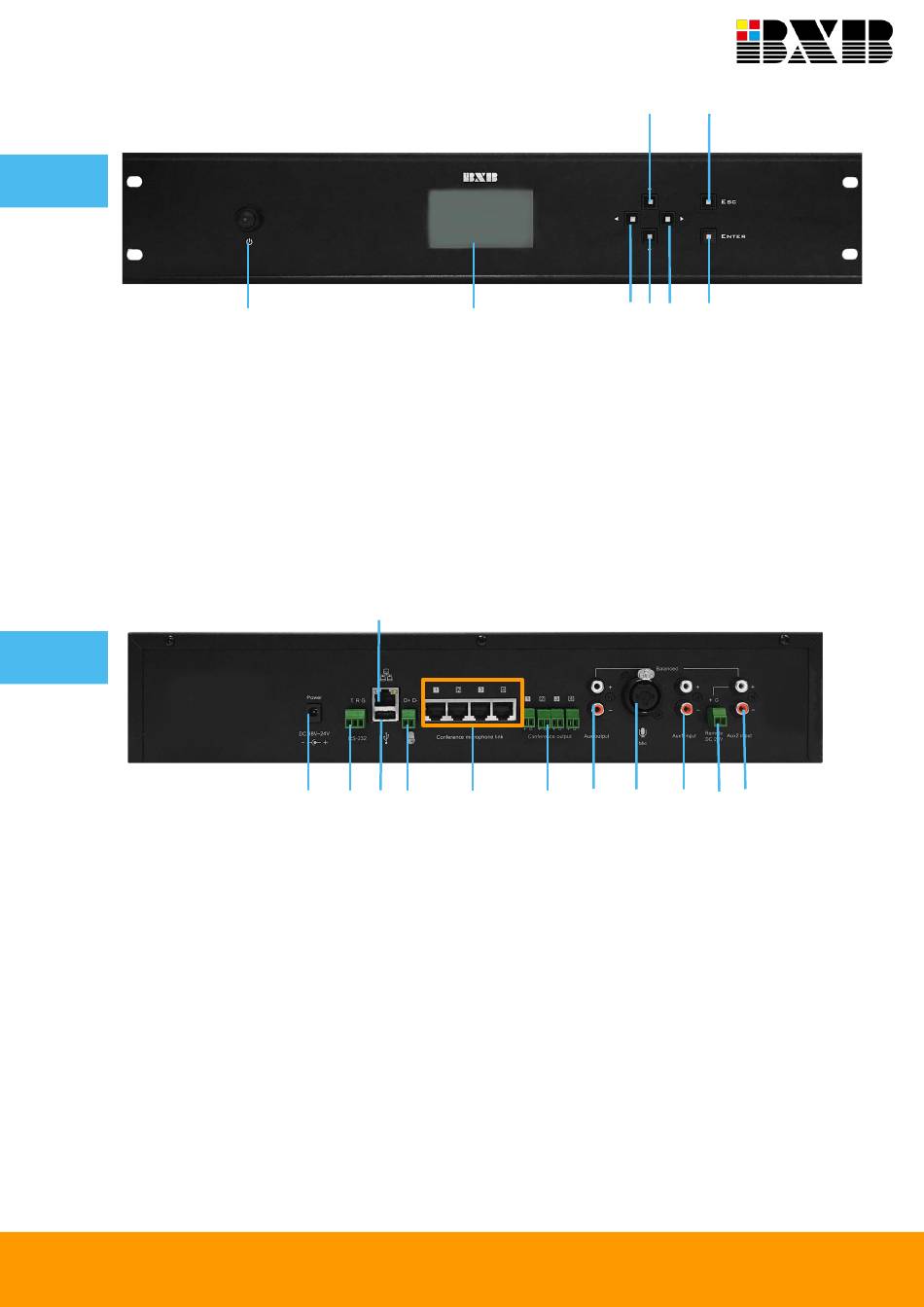

FRONT
1. Power: long press to turn on/off.
2. LCD screen: display the relative settings.
3. Menu setting button (LEFT): for selecting the left items of the menu.
4. Menu setting button (UP): for selecting the upper items of the menu.
5. Menu setting button (DOWN): for selecting the lower items of the menu.
6. Menu setting button (RIGHT): for selecting the right items of the menu.
7. ESC: press to go back to the previous menu.
8. ENTER: press to save the settings.
REAR
1. AC power connector: DC18~24V.
2. RS-232 connector: for integrating with environmental equipment.
3. USB connector: connects to the PC for two-way audio transmission.
4. LAN port: connects to the network switch for graphical control software and
Web-based interface.
5. RS-485 connector: connects to BXB's image equipment for image tracking.
6. RJ-45 port: only for BXB's microphone units; do not plug in other equipment.
7. Conference MIC audio output: 4 individual audio outputs corresponding with each
RJ45 microphone port.
8. AUX output: balanced; RCA jack.
9. MIC audio input: for microphone audio input.
10. AUX1 input: for the audio input of external equipment.
11. Remote DC 24V for triggering the fire alarm system.
12. AUX 2 input: for audio input of fire alarm.
Warning: RJ45 microphone unit ports (yellow square part) are not the standard LAN ports.
Please do not plug in other equipment, or the unit would be damaged.
