Quick Set-Up Guide – Coaxial Biometric Lighting Iris Camera

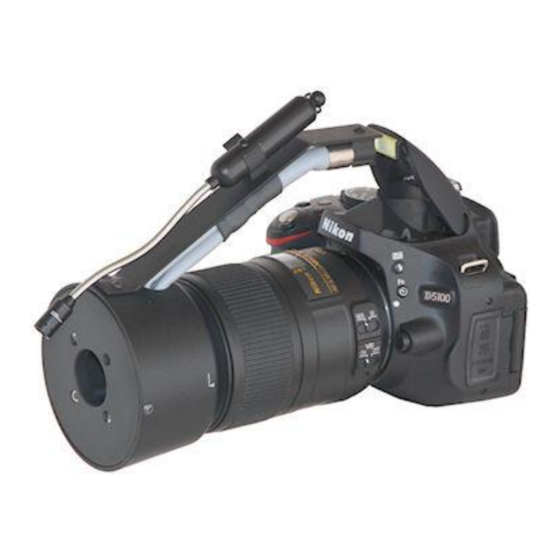

MEC-5-HCB-D3200-N85

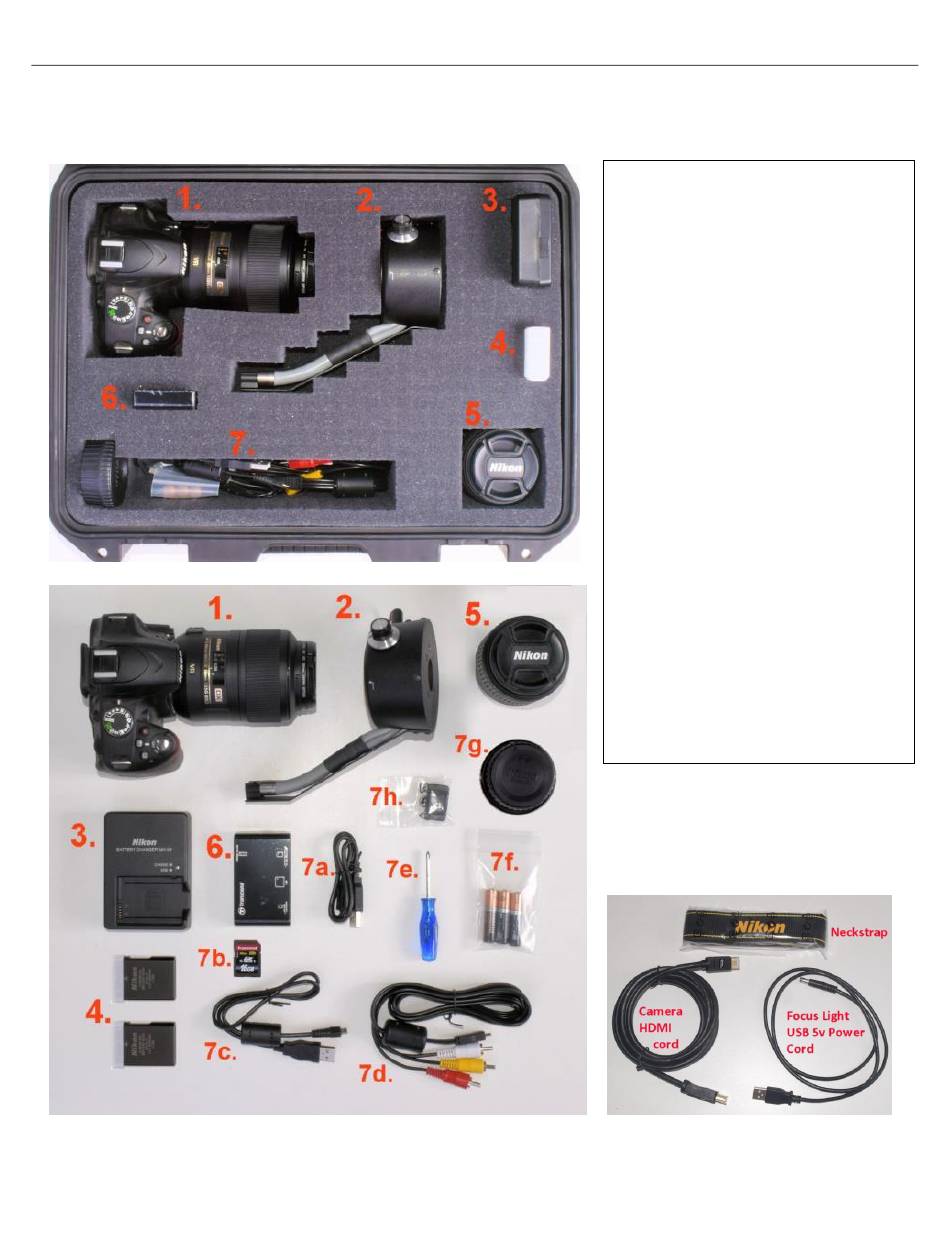

Contents of the Camera Carry Case – MEC-5-HCB-D3200-N85

Quick Setup Guide for MEC-5-HCB-D3200-N85

Contents

1. Camera with macro lens

2. Illuminator

3. Camera Battery Charger

4. Camera Battery (Spare)

5. Zoom Lens

6. Memory Card Reader

7. Cord Compartment

7a. USB Card Reader cord

7b. SDHC memory card (16GB)

7c. Camera USB cord

7d. Camera A/V cord

7e. #0 screwdriver (for battery case)

7f. Spare batteries (focus light)

7g. Lens rear cap/body cap

7h. Viewfinder cover

Extras:

HDMI cord for camera

Focus Light USB power cord

Neck strap

Note: The neck strap is not useful for iris

photography and should be stored

elsewhere for possible use. Likewise, the

extra cords are mainly for when using a

chinrest and may be stored with the

chinrest.

Need help?

Do you have a question about the MEC-5-HCB-D3200-N85 and is the answer not in the manual?

Page 1 Quick Set-Up Guide – Coaxial Biometric Lighting Iris Camera MEC-5-HCB-D3200-N85 Contents of the Camera Carry Case – MEC-5-HCB-D3200-N85 Contents 1. Camera with macro lens 2. Illuminator 3. Camera Battery Charger 4. Camera Battery (Spare) 5. Zoom Lens 6. Memory Card Reader 7.
Page 2 Preparing the Iris Camera for Use – MEC-5-HCB-D3200-N85 1. Open Camera Carry Case by pressing the button and lifting up each latch. 2. Remove the camera from the foam padding and set down It helps to use the left hand to hold the foam in place.
Page 3 4. Remove lens cap and turn the camera on. 5. Be sure Mode dial is set to A=Aperture priority 6. Pop up the built-in flash by pressing button on left side Quick Setup Guide for MEC-5-HCB-D3200-N85...
Page 4 7. Place illuminator onto lens at the 9:00 position (Mode is set to A, Power is ON, Flash is in the up position, Lens is at minimum focus): 8. Rotate Illuminator 90 degrees until it snaps into place at 12:00 position: Quick Setup Guide for MEC-5-HCB-D3200-N85...
Page 5 Batteries: Be sure to always have a fully charged camera battery available. It is okay to leave the lithium-ion camera battery in the charger overnight. Contact Miles Research for additional information or technical support Your Registration Information: Jon Miles...
