Quick Setup Guide for MEC-5-FSL-D3400-N85 Iris Camera

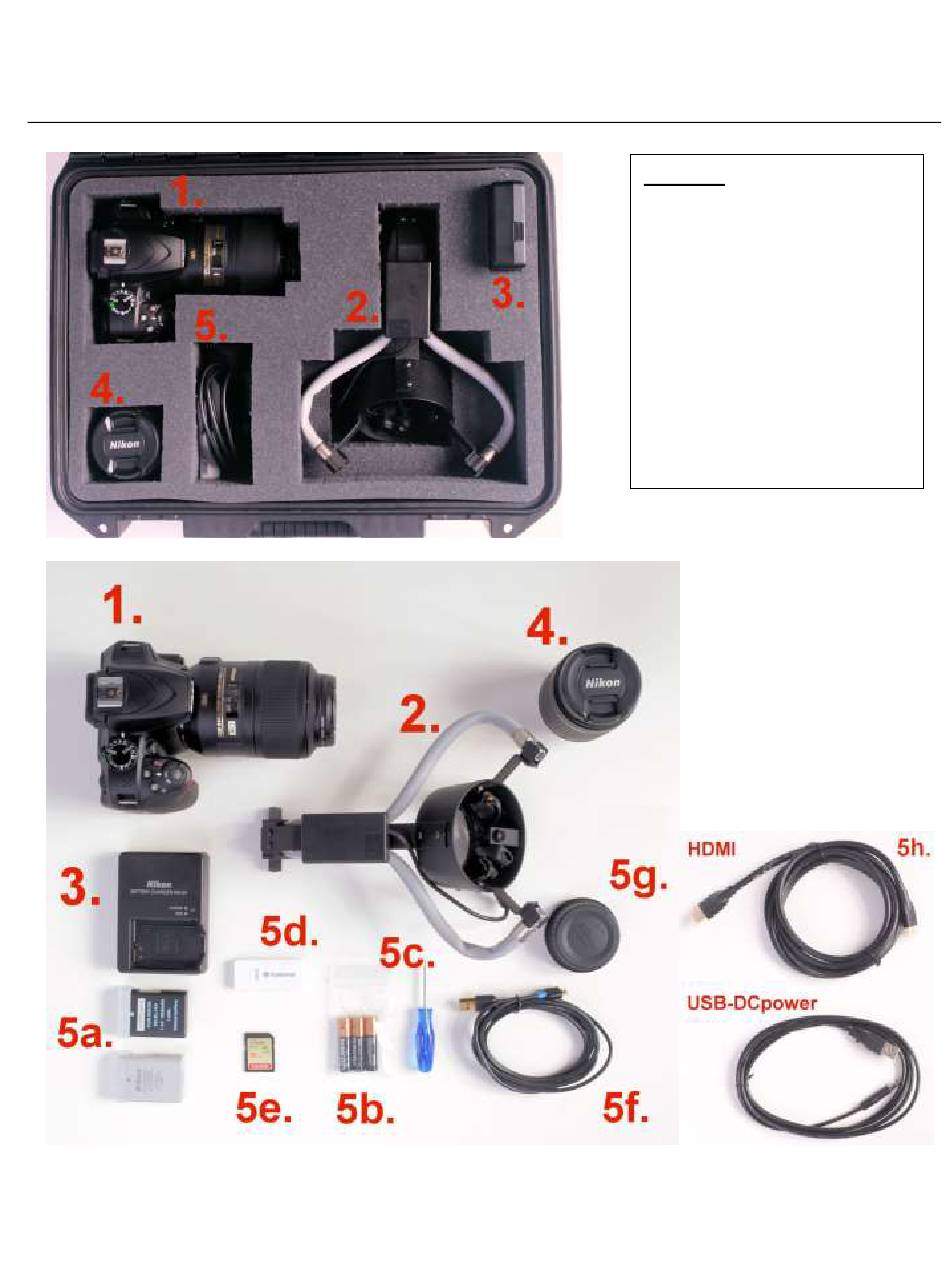

Contents of the Camera Carry Case – MEC-5-FSL-D3400-N85
Quick Setup Guide for MEC-5-FSL D3400-N85 Miles Eye Camera
Contents
1. Camera with macro lens
2. Illuminator
3. Camera Battery Charger
4. Zoom Lens
5. Cord/Accessory Compartment
5a. Camera Batteries
5b. Focus Light Batteries
5c. Battery Pack Screwdriver
5d. USB Card Reader
5e. SDHC memory card (16GB)
5f. Camera USB cord
5g. Lens rear cap/body cap
5h. Extra cords (optional)
1
Advertisement
Related Manuals for Miles Research Iris MEC-5-FSL-D3400-N85
Summary of Contents for Miles Research Iris MEC-5-FSL-D3400-N85
- Page 1 Quick Setup Guide for MEC-5-FSL-D3400-N85 Iris Camera Contents of the Camera Carry Case – MEC-5-FSL-D3400-N85 Contents 1. Camera with macro lens 2. Illuminator 3. Camera Battery Charger 4. Zoom Lens 5. Cord/Accessory Compartment 5a. Camera Batteries 5b. Focus Light Batteries 5c.
- Page 2 Preparing the Iris Camera for Use – MEC-5-FSL-D3400-N85 1. Open Camera Carry Case by pressing the button and lifting up each latch. 2. Remove the camera from the foam padding and set down. 3. Lift Illuminator out of foam-padded case Quick Setup Guide for MEC-5-FSL D3400-N85 Miles Eye Camera...
- Page 3 4. Remove lens cap and turn the camera on. Mode dial is set to A=Aperture priority 5. Pop up the built-in flash by pressing button on left side 6. Place illuminator onto lens at the 9:00 position (Flash is in the up position, Mode=A): Quick Setup Guide for MEC-5-FSL D3400-N85 Miles Eye Camera...
- Page 4 7. Rotate Illuminator until it snaps into place at 12:00 position: 8. Turn ON the focus light by rotating the brightness knob clockwise: 9. Your camera is now ready to take iris pictures. When complete with the photography, reverse these steps to put the camera away.
- Page 5 Using the Dual-Channel Illuminator Shutter 1. The Side-Lighting illuminator has a shutter that controls which side the flash illumination goes to. For photographing the RIGHT iris, use the Left Channel Open position (push slider to the LEFT); for photographing the LEFT iris, use the Right Channel Open position (push slider to the RIGHT): 2.
- Page 6 4. With Auto-Exposure you can dial in whatever aperture you want, but best results will be found within this range of f/16 and f/25. Miles Research recommends f/22 for iris photography. 5. For sclera photography, having the larger depth of field is very important in order to get the entire visible surface of the sclera (including the bulbar conjunctival vessels) in focus, so the recommended aperture for scleral photography is the maximum aperture value –...
- Page 7 Getting Correct Focus Using Fixed Focus (Recommended) 1. For best results, use Fixed Focus mode, which is where the lens is set to its miminum (closest) focus, and the whole camera-lens is moved closer or further from the iris until proper focus is viewed in the viewfinder.
- Page 8 Setting the Viewfinder Focus (very important for all users) 9. IMPORTANT: Adjust the Eyepiece Dioptric setting. (Initial Setup Only) This is a small rotary switch to the right of the viewfinder that can go up or down through several positions, and is designed to match the viewfinder optics to your vision.
- Page 9 Do not use: 4.8, 5, 5.6, 6.3, 7.1, 8, 9, 10, 11, 13, 14 Use for brown: 16 thru 25 Use for blue or mixed: 18 thru 36 Use for sclera: 45 Contact Miles Research for additional information or technical support Jon Miles Miles Research 141 E 13th Ave...
