Quick Start

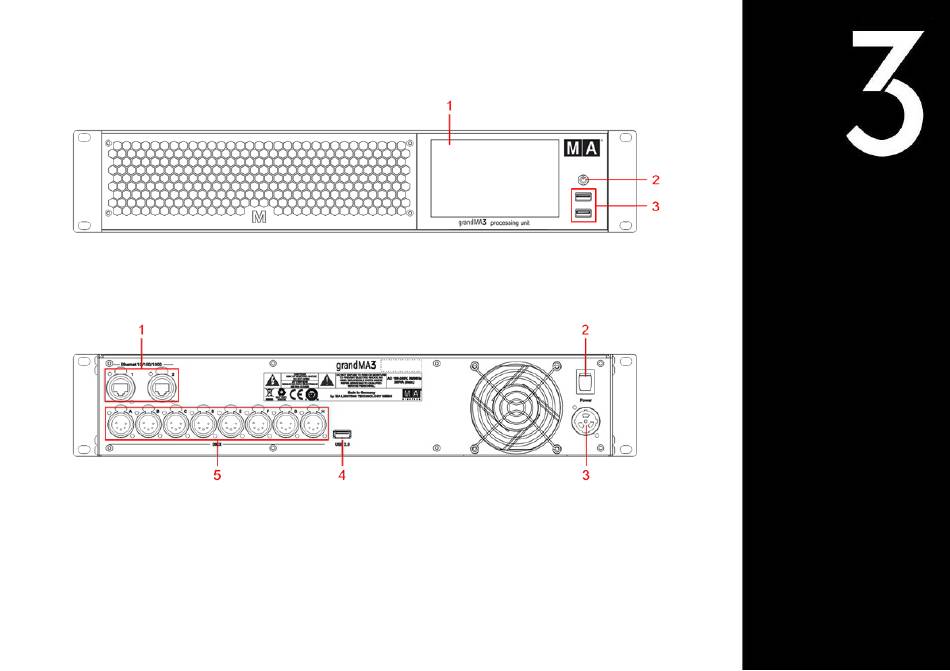

grandMA3 processing unit M, L, XL front panel
1. Internal command multi-touch screen
2. Power key
3. USB 2.0 (type A)
grandMA3 processing unit M, L, XL rear panel
1. etherCON/RJ45
2. Power switch
3. powerCON TRUE1
4. USB 2.0 (type A)
5. DMX-512-A OUT (5pin XLR female)
1
Advertisement
Table of Contents
Related Manuals for MA grandMA3 processing unit XL
Summary of Contents for MA grandMA3 processing unit XL
- Page 1 Quick Start grandMA3 processing unit M, L, XL front panel 1. Internal command multi-touch screen 2. Power key 3. USB 2.0 (type A) grandMA3 processing unit M, L, XL rear panel 1. etherCON/RJ45 2. Power switch 3. powerCON TRUE1 4. USB 2.0 (type A) 5.
- Page 2 Turn on the grandMA3 processing unit 1. Unpack the device. 2. Remove the packaging and cushioning material. 3. Place the device indoors on a stable surface. 4. Connect an external keyboard and mouse to the grandMA3 processing unit using the USB ports. 5.
- Page 3 Turn off the grandMA3 processing unit 1. Press the power key on the front panel. A warning pop-up appears: 2. Tap The grandMA3 device shuts down. 3. Set the power switch to position O. Important: You can disconnect the grandMA3 processing unit using the grandMA3 console or the grandMA3 onPC software. The DMX output will then be immediately interrupted.
- Page 4 1. To update a grandMA3 device, download the latest software version from www.malighting.com. The required installer is called grandMA3 Software x.x.x.x. 2. Extract the zip file "grandMA3_stick_v.x.x.x.x.zip" and copy the folders EFI, ma, and the update.scr file into the root directory of your USB flash drive.
