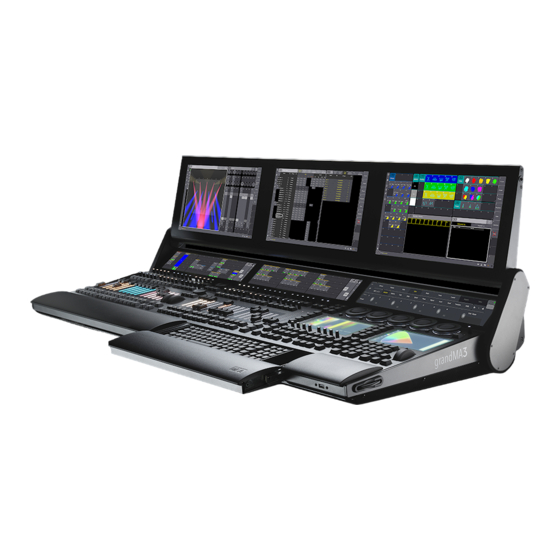

MA grandMA3 Quick Start
Hide thumbs
Also See for grandMA3:
- Quick manual (133 pages) ,
- User manual (8 pages) ,
- Installation manual (6 pages)
Advertisement
Quick Links
Quick Start
grandMA3 connectors
grandMA3 full-size CRV rear panel
1. Desk light
2. powerCON TRUE1 connector
3. Power switch
4. DMX A-G
5. DisplayPort 1-5
6. LTC
7. USB 3.0
8. Audio Remote In
9. DC Remote Control
10. Ethernet 1-3
11. S/PDIF In & S/PDIF Out
12. USB 2.0
13. MIDI In & Out
Hint:
To display the rear panel connectors on the letterbox screens, type:
Menu "Connectorview"
1
Advertisement
Related Manuals for MA grandMA3
Summary of Contents for MA grandMA3
- Page 1 Quick Start grandMA3 connectors grandMA3 full-size CRV rear panel 1. Desk light 2. powerCON TRUE1 connector 3. Power switch 4. DMX A-G 5. DisplayPort 1-5 6. LTC 7. USB 3.0 8. Audio Remote In 9. DC Remote Control 10. Ethernet 1-3 11.
- Page 2 2. Remove the packaging, cushioning material, and the dust cover. 3. Place the device indoors on a stable surface. 4. Connect external monitors to the console using a native DisplayPort connector. 5. Start the grandMA3 console: -Insert powerCON TRUE1 into the corresponding jack. -Connect the main power plug.
- Page 3 Turn off the console To turn off the grandMA3 console: -Press the power key on the front panel. -A warning pop-up appears. Shut down the grandMA3 console -Tap -The grandMA3 console powers down. -Set the power switch to position O.
- Page 4 The required installer is called grandMA3 Software x.x.x.x. 2. Extract the zip file and copy the folders EFI, ma, and the update.scr file into the root directory of your USB flash drive. 3. Insert the USB flash drive in the device's USB port.
