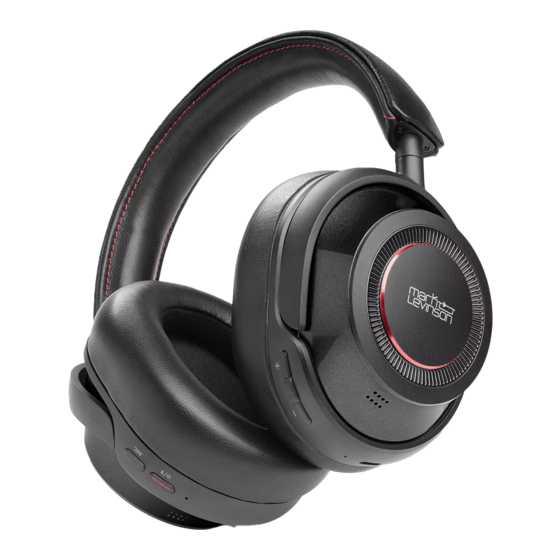

Mark Levinson 5909 Owner's Manual

Hide thumbs Also See for 5909:
Table of Contents

Advertisement

Quick Links

N
5909
0
HEADPHONE
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5909 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mark Levinson 5909

Summary of Contents for Mark Levinson 5909

  • Page 1 5909 HEADPHONE OWNER’S MANUAL...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS Overview What's in the Box Product Overview Adjustability, Fit & Comfort Functions Charaging Connections Pairing Passive USB Digital Direct Maintenance / Care Changing / Removing Earpads Accessories Troubleshooting Ear Health Specifications 5909 HEADPHONE OWNER’S MANUAL...
  • Page 4 5909 HEAPHONE OWNER’S MANUAL...

  • Page 5: Overview

    OVERVIEW Congratulations on your selection of the Mark Levinson ® 5909 Premium Wireless ANC Headphone. For over 50 years, discerning individuals have chosen Mark Levinson products for their luxurious quality and revealing sound. Robust materials, lavish finishes, bold geometry, and outstanding performance are celebrated attributes of the Mark Levinson brand.

  • Page 6: Product Overview

    2. Replaceable and Memory Foam Ear Pads 3. Forged and Machined Aluminum Components throughout 4. USB-C Connector for Passive Audio Listenting & Charging 5. Adjustment Arm 6. 8 Microphones (4 talk microphones and 4 ANC microphones) 5909 HEAPHONE OWNER’S MANUAL...

  • Page 7: Adjustability, Fit & Comfort

    ADJUSTABILITY, FIT & COMFORT ADJUSTABILITY, FIT & COMFORT Adjust to find optimal fit Rotates for comfort around neck 5909 HEADPHONE OWNER’S MANUAL...

  • Page 8: Functions

    A solid white light indicates you are connected x2: Awareness ON (Default selectable via app; Voice Pass or Ambient modes) x3: Passive / ANC OFF Clicking the button will cycle through the different modes. 5909 HEAPHONE OWNER’S MANUAL...
  • Page 9 Play/Pause / Answer/End Call USB-C Charging Port x1 Play / Pause / Answer Call / End Call Fully Charged x2 Skip Forward Charging x3 Skip Back HOLD: Voice Assistant Battery Level Indicator High Battery Med Battery Low Battery 5909 HEADPHONE OWNER’S MANUAL...

  • Page 10: Charaging

    Headphones cannot charge and play at the same time. A solid orange light on the left earcup indicates charging and a solid green light indicates a full charge when the USB cable is connected. Fully Charged Charging 5909 HEAPHONE OWNER’S MANUAL...

  • Page 11: Connections

    NOTE: Maximum number of devices that can be connected at any given time - 2 source devices. PASSIVE The № 5909 can be connected passively to any product that has an analog 3.5mm or 6.3mm (1/4") audio connetion using the included 1.25m or 4m to USB-C proprietary audio cables included.

  • Page 12: Usb Digital Direct

    CONNECTIONS USB DIGITAL DIRECT The № 5909 can be connected and used to listen to content via USB Digital Direct using the standard USB-C to USB-C charging cable included. 1. Plug one end of the USB-C to USB-C cable directly into one of your computer's USB connections (use the included USB-C to USB-A adaptor if needed).

  • Page 13: App

    MARK LEVINSON HEADPHONE APP The Mark Levinson Headphones app allows you to choose your listening preference and select Active Noise Cancellation and Awareness modes. Select Bass Contour settings, Set on-head detection and auto time-off parameters. App Start-up Landing Page Settings...

  • Page 14: Maintenance / Care

    CHANGING / REMOVING EARPADS To remove ear pads: Gently pull the earpads from the inside To re-attach ear pads: Gently push the earpad against the of the earcup. The snaps will release. earcup, ensuring all the snaps are secured. 5909 HEAPHONE OWNER’S MANUAL...

  • Page 15: Accessories

    ACCESSORIES Travel Storage Case USB-C to USB-C Charging Cable USB-C to USB-A Charging adaptor USB-C to 3.5mm Proprietary Audio Cable 3.5mm to 6.3mm (1/4" standard) (Both 1.25mm and 4mm Audio Cables included) headphone adaptor Airplane adaptor 5909 HEADPHONE OWNER’S MANUAL...

  • Page 16: Troubleshooting

    3. Turn OFF the Bluetooth feature on any other device that is paired with the headphones. 4. Hold power button down >4 seconds to enter pairing mode. ® 5. Make sure “Nº5909" is selected in the Bluetooth device list NO AUDIO OR POOR AUDIO QUALITY FROM A CONNECTED BLUETOOTH DEVICE Move the device closer to the headphones, physical objects between the headphone and the source may obstruct the signal.

  • Page 17: Ear Health

    EAR HEALTH EAR HEALTH Our ability to hear is amazing. The Mark Levinson team wishes you to treat your ears like the precious tools they are so they will continue to provide you a lifetime of incredible sonic experiences. In general, do not listen “too loud or for too long, ” and be attentive to your own ears. Ringing, discomfort, or sensitivity to high frequencies and treble may be a signal from your ears that you are pushing them to their limits and causing irreparable damage.

  • Page 18: Specifications

    Music Playtime With BT & ANC On: 30 hrs Music Playtime With Aux-In & ANC On: 30 hrs Dimensions (H x W x D): 202.6mm (7.9") x 205.4mm (8.1") x 65.4mm (2.6") Weight: 340g (12 oz) 5909 HEAPHONE OWNER’S MANUAL...
  • Page 19 This Page Intentionally Left Blank 5909 HEADPHONE OWNER’S MANUAL...
  • Page 20 Northridge, CA 91329 USA © 2022 HARMAN International Industries, Incorporated. All rights reserved. Mark Levinson is a registered trademark of HARMAN International Industries, Incorporated. Other company and product names may be trademarks of the respective companies with which they are associated.
