CNC Router Parts PRO4848 Assembly Instructions Manual

Leg kit
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
CNC Router Parts
PRO4848 Leg Kit Assembly Instructions
Leg Kit Assembly Instructions
Version 2015Q3.1
Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO4848 and is the answer not in the manual?

Questions and answers

Related Manuals for CNC Router Parts PRO4848

Summary of Contents for CNC Router Parts PRO4848

  • Page 1 CNC Router Parts PRO4848 Leg Kit Assembly Instructions Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.

  • Page 2: Included Parts

    CNC Router Parts PRO4848 Leg Kit Assembly Instructions Included Parts: Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 3 Attach the CRP113-09 Machine Connection Bracket to the top of the 30” steel tubes as shown. Thread the M16 Leveling Feet into the bottom of the tube. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 4 PRO4848 Leg Kit Assembly Instructions Loosely attach the CRP113-07 Corner Brackets to the remaining tubes. Ensure the sides of the brackets with 4 slots are vertical. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 5 CNC Router Parts PRO4848 Leg Kit Assembly Instructions Attach the 20 inch tubes to the legs as shown. Repeat this step for both sets of legs. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 6 Ensure that the end of the crossmember tube is flush with the side of the leg tube, and tighten the connections. Repeat this step for all 4 brackets. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 7 CNC Router Parts PRO4848 Leg Kit Assembly Instructions Use the remaining tubes to complete the frame. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 8 CNC Router Parts PRO4848 Leg Kit Assembly Instructions Again, ensure the tubes are flush and tighten the remaining bracket screws. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.

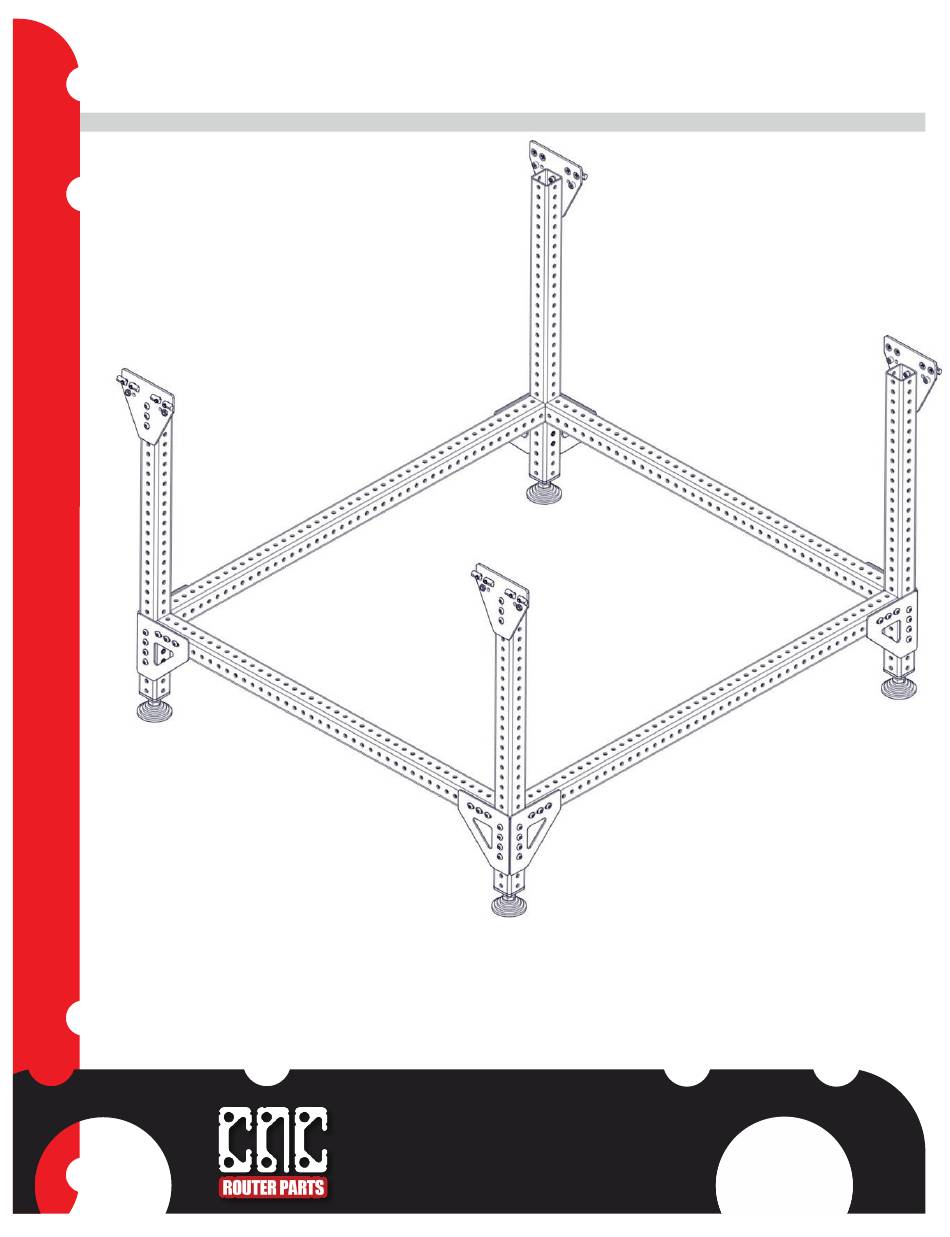

  • Page 9 The axis extrusion of your machine will be supported by the socket heads. The remaining T-nuts and flat head screws will be used to attach the extrusion. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
