CNC Router Parts PRO4896 Assembly Instructions Manual

Leg kit
Hide thumbs

Advertisement

Quick Links

Download this manual
CNC Router Parts
PRO4896 Leg Kit Assembly Instructions
Leg Kit Assembly Instructions
Version 2015Q3.1
Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO4896 and is the answer not in the manual?

Questions and answers

Related Manuals for CNC Router Parts PRO4896

Summary of Contents for CNC Router Parts PRO4896

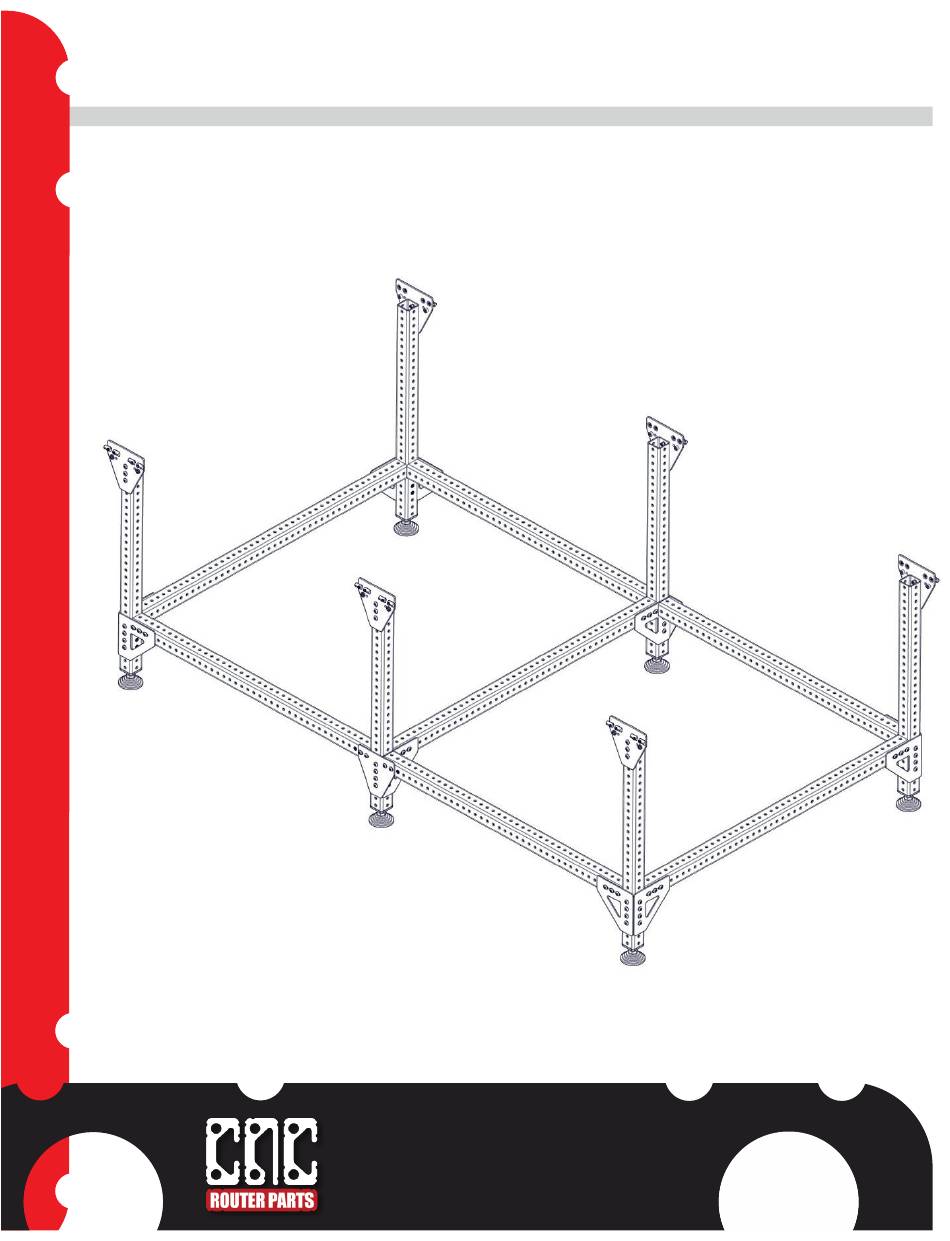

  • Page 1 CNC Router Parts PRO4896 Leg Kit Assembly Instructions Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.

  • Page 2: Included Parts

    CNC Router Parts PRO4896 Leg Kit Assembly Instructions Included Parts: Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 3 Attach the CRP113-09 Machine Connection Bracket to the top of the 30” steel tubes as shown. Thread the M16 Leveling Feet into the bottom of the tube. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 4 PRO4896 Leg Kit Assembly Instructions Attach one CRP113-07 corner bracket to TWO of the 40 inch tubes as shown. Ensure the sides of the brackets with 4 slots are vertical. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 5 CNC Router Parts PRO4896 Leg Kit Assembly Instructions Attach one CRP113-07 corner bracket and one CRP113- 19 bracket to the remaining 40 inch tubes as shown. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 6 CNC Router Parts PRO4896 Leg Kit Assembly Instructions Loosely attach the CRP113-07 Corner Brackets to the remaining tubes. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 7 PRO4896 Leg Kit Assembly Instructions Attach the 40 inch tubes with CRP113-10 brackets to the legs as shown. Note that this will be mirrored for the second set. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 8 Ensure that the end of the crossmember tube is flush with the side of the leg tube, and tighten the connections. Repeat this step for all 4 brackets. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 9 CNC Router Parts PRO4896 Leg Kit Assembly Instructions Use two of the 45 inch tubes to complete the first half of the frame Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 10 CNC Router Parts PRO4896 Leg Kit Assembly Instructions Again, ensure the tubes are flush and tighten the remaining bracket screws. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 11 PRO4896 Leg Kit Assembly Instructions Attach the remaining 40 inch tubes to the remaining legs as shown. Note that this will be mirrored for the second set. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 12 CNC Router Parts PRO4896 Leg Kit Assembly Instructions Attach the remaining leg assemblies to the main frame. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 13 CNC Router Parts PRO4896 Leg Kit Assembly Instructions Complete the frame with the remaining 45” tube. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 14 CNC Router Parts PRO4896 Leg Kit Assembly Instructions Again, ensure the tubes are flush and tighten the remaining bracket screws. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
  • Page 15 The axis extrusion of your machine will be supported by the socket heads. The remaining T-nuts and flat head screws will be used to attach the extrusion. Leg Kit Assembly Instructions Version 2015Q3.1 Copyright©2015 CNC Router Parts LLC. All Rights Reserved.
