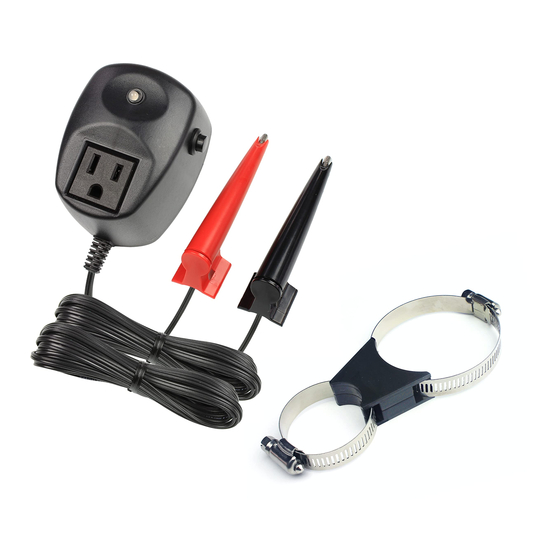

HC6000v2 Hi-Lo Electronic Pump Controller
(Dual Float)
Overview:
The HC6000v2 Hi-Lo Electronic Pump Controller with Smart Button will provide you with years of trouble-free,
worry-free service after completing a simple and straightforward installation process. See Troubleshooting section for
Smart Button, LED, and Alarm specifications. This product is not rated for outdoor use.
READ PRIOR TO INSTALLATION:
1.
The "piggyback plug" attached to the mechanical float switch cannot be used with the HC6000v2. It
must be disconnected and remain disconnected.
2.
If your sump pump has internal float switch wiring, i.e. does not have a "piggyback plug", then you
must secure the float in an upward position as if the pit were full. This assures that the internal switch
is always closed and that the pump is enabled.
3.
Pits that receive water from a water softener or that have high mineral/iron content require an alter-
native installation method. Visit our website www.hydrocheckproducts.com for recommended in-
stallation instructions for these applications.
Step-by-Step Installation (SUMP PIT)

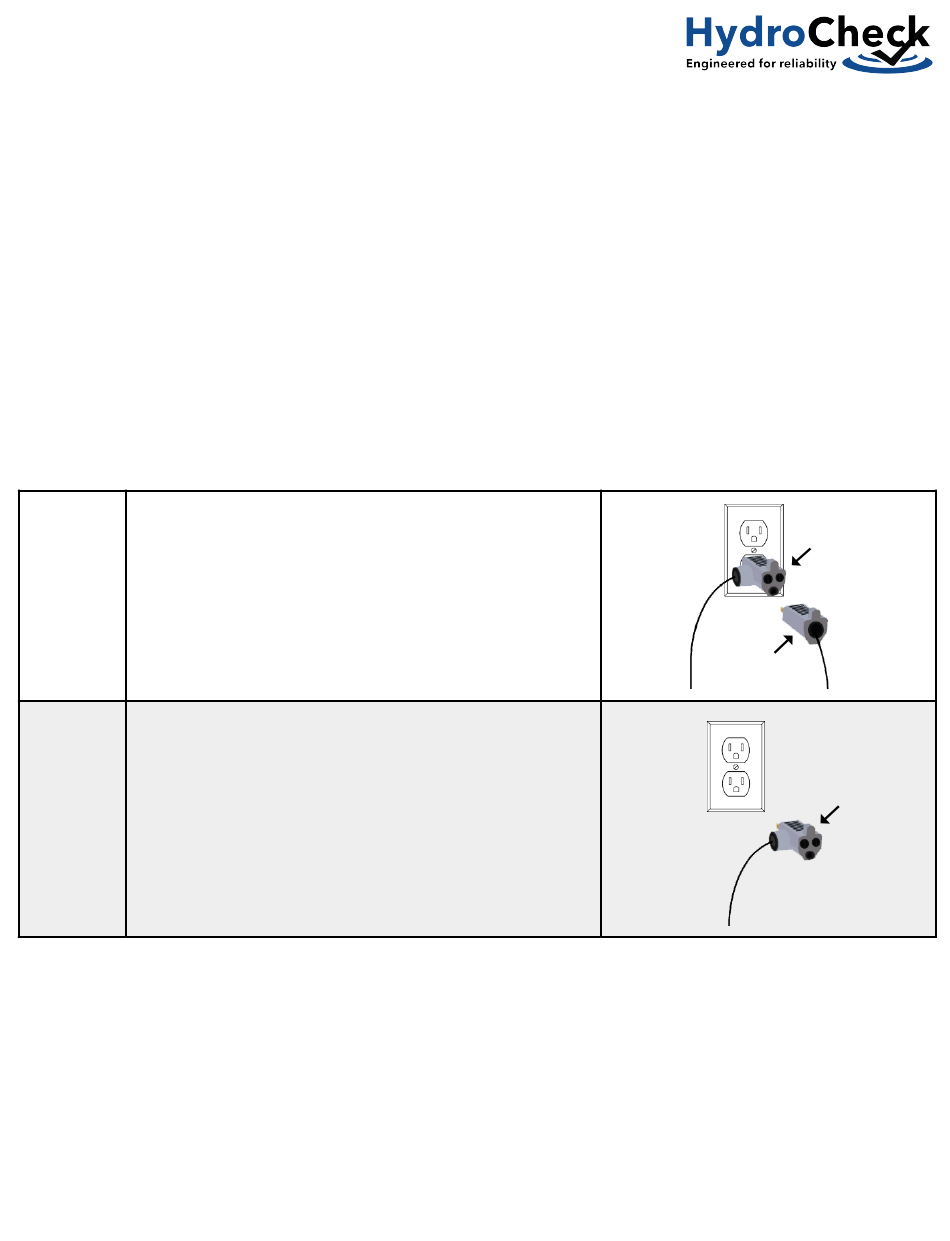

Unplug the sump pump from the back of "piggyback
Step 1
plug".
Unplug the "piggyback plug" from the 120 VAC and set
Step 2
aside. The HC6000v2 completely replaces this
component.
www.hydrocheckproducts.com | customersupport@hydrocheckproducts.com | 1(877)-225-2124
Rev-D
"Piggyback Plug"
Sump Pump
"Piggyback Plug"
1
