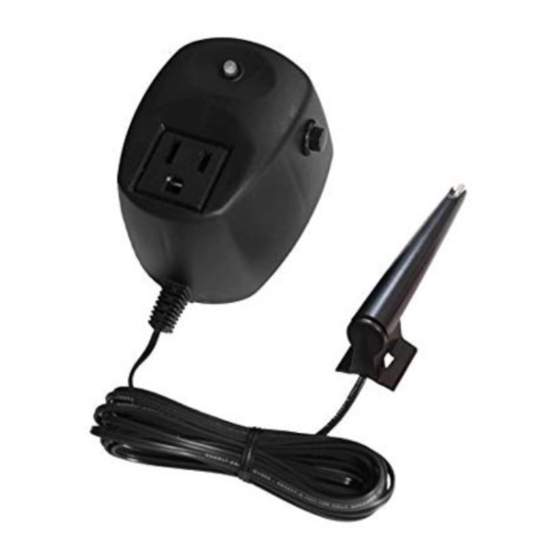

HC8000T Timed Sump Pump Controller
(Float Switch)
Overview:
The HC8000T Timed Sump Pump Controller will provide years of reliable and trouble-free service after completing a
simple and straightforward installation process. See Alarm & LED Guide, Smart Button Features, and Trou-
bleshooting sections for product details. This product is not rated for outdoor use.
READ PRIOR TO INSTALLATION:
1.
The "piggyback plug" attached to the mechanical float switch cannot be used with the HC8000T. It
must be disconnected and remain disconnected.
2.
If your sump pump has internal float switch wiring, i.e. does not have a "piggyback plug", then you
must secure the float in an upward position as if the pit were full. This assures that the internal switch
is always closed and that the pump is enabled.

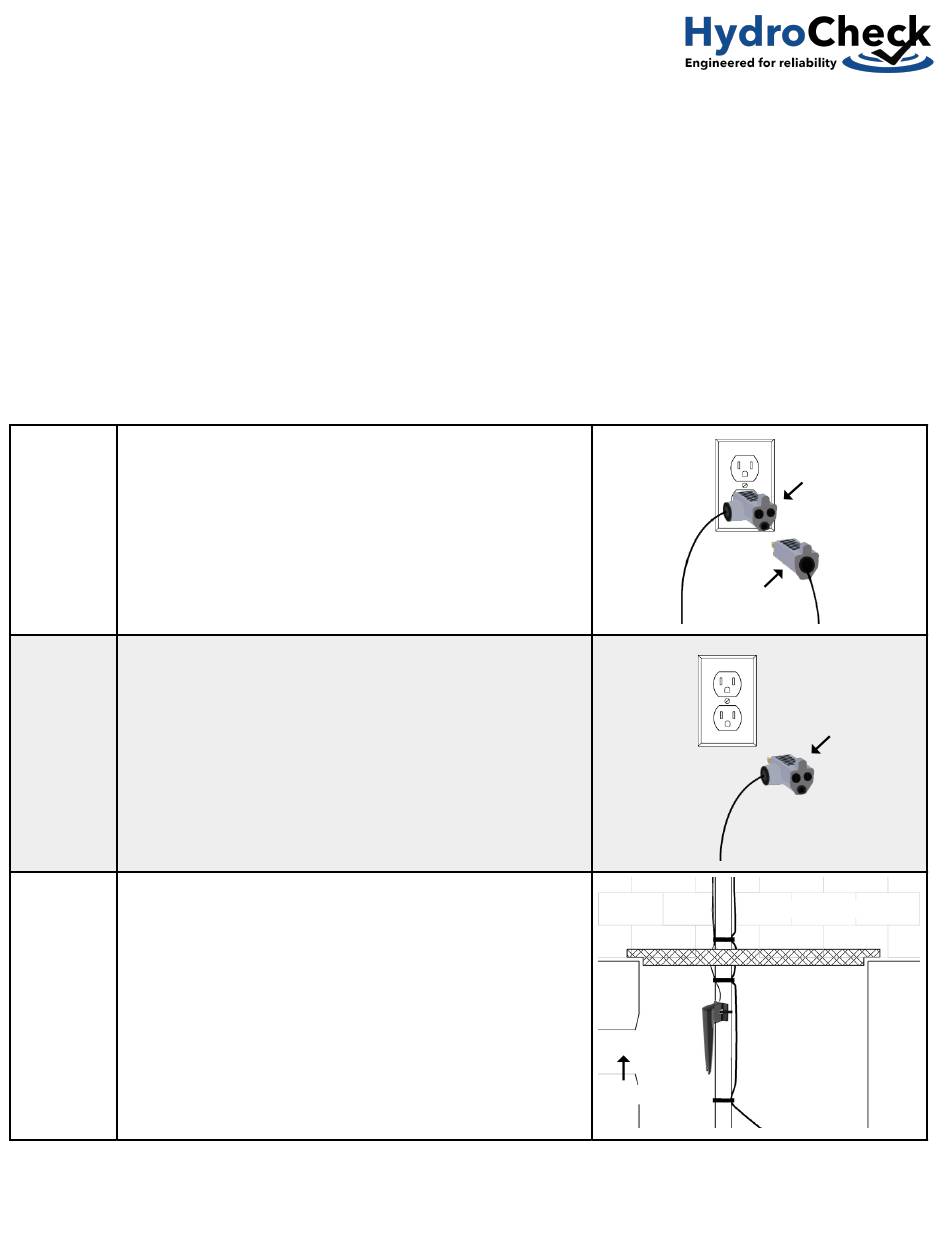

Step-by-Step Installation
Unplug the sump pump from the back of "piggyback
Step 1
plug".
Unplug the "piggyback plug" from the 120 VAC and set
Step 2
aside. The HC8000T completely replaces this component.
Step 3
Secure the SENSOR to the discharge pipe with tie wrap
where the pump is intended to turn on.
NOTE: Recommended height for the Sensor is slightly
below the Drain Tile (Water Inlet Pipe).
www.hydrocheckproducts.com | customersupport@hydrocheckproducts.com | 1(877)-225-2124
Rev-A
Drain Tile
!
"Piggyback Plug"
Sump Pump
"Piggyback Plug"
←
Discharge Pipe
←
Tie Wrap
←
Sensor
1
Advertisement
Related Manuals for HydroCheck HC8000T
Summary of Contents for HydroCheck HC8000T
- Page 1 (Float Switch) Overview: The HC8000T Timed Sump Pump Controller will provide years of reliable and trouble-free service after completing a simple and straightforward installation process. See Alarm & LED Guide, Smart Button Features, and Trou- bleshooting sections for product details. This product is not rated for outdoor use.
- Page 2 Plug the control module into the 120 VAC outlet. Step 4 ← Control Module Plug the sump pump motor into the control module. Step 5 ← Control Module Sump Pump Power Cord Step 6 Adjust run time by following Run Time Adjustment steps on Page 3.
- Page 3 Run Time Adjustment This product defaults to a 10 second run duration and can be reprogrammed at anytime by following these steps. Step 1 Silence or eliminate all active alarms: There should be no audible alarms active (See “Smart Button Features”...
- Page 4 The company's obligation of this warranty shall be limited to the repair or replacement of any part of the HC8000T which is found to be defective in materials or workmanship under normal use and service during the 5 year period of prod- uct use by original product owner commencing with the date of purchase.
