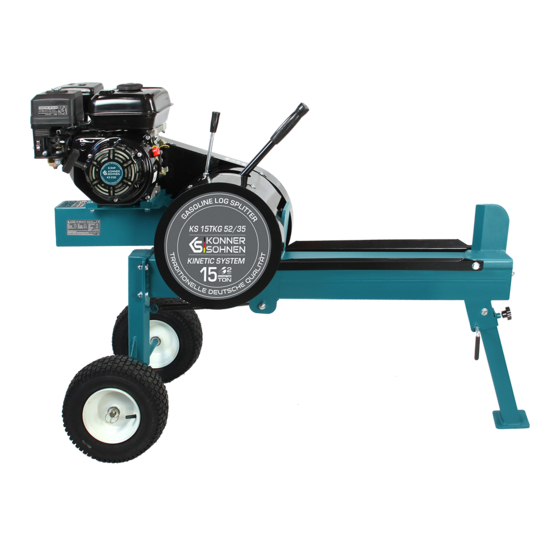

- Page 1 Owner’s Manual Please, read this manual carefully before use! Gasolline Log Splitter KS 15TKG 52/35 KS 27THG 65/55...
-
Page 2: Safety Information
INTRODUCTION Thank you for your purchase of Könner & Söhnen products. This manual contains a brief description of safety, use and debugging. More information can be found on the official manufacturer’s website in the support section: ks-power.de/betriebsanleitungen. You can also go to the support section and download the full version of the manual by scanning the QR code, or on the website of the official importer of Könner &... -
Page 3: Safety With Gasoline - Powered Machines
• The muffler and engine become very hot and can • Never make adjustments or repairs with the en- cause severe burns; do not touch them. gine running. Shut down the engine, disconnect SPECIFICATIONS Model KS 15TKG 52/35 KS 27THG 65/55 Log splitter type kinetic hydraulic Engine power 6.5 HP... -
Page 4: Starting The Engine
Recommended fuel: Recommended fuel: only unleaded gasoline. Fuel tank volume: Fuel tank volume: see specifications table. Wipe up spilled fuel immediately with a clean, dry, soft cloth, as the fuel may harm painted surfaces or plastic IMPORTANT! parts. Use only unleaded gasoline. Using leaded gasoline can IMPORTANT! cause serious damage to the inside of the engine. -
Page 5: Stopping The Engine
STOPPING THE ENGINE STOPPING THE ENGINE To stop the engine, turn the switch to the “OFF” position. Turn the fuel valve to the “CLOSED” position. KINETIC LOG SPLITTER KS 15TKG 52/35 OPERATION INSTRUCTIONS The kinetic log splitter operates differently than a hydraulic splitter. - Page 6 4). Push the control valve handle FORWARD with two hands to split the log. 5). Push the control valve handle BACKWARD with two hands to return wedge to its original position. 6). Remove the split wood from the work zone. FOR HORIZONTAL USE FOR HORIZONTAL USE Rotate rear leg down and...
- Page 7 Rotate the rear leg and slide the lock pin Hook safety chain to tow vehicle HOW TO SPLIT THE LOG WITH SLANTED SURFACE BEST WRONG BETTER KS 15TKG 52/35 COMPONENTS IN THE PACKAGE table for log splitter (optional accessory) www.ks-power.de/en...
- Page 8 KINETIC LOG SPLITTER KS 15TKG 52/35 ASSEMBLY STEP 1 STEP 1 STEP 2 STEP 2 4ø10 Flat washer 4ø10 Spring washer 4-M10x25 Hex bolt www.ks-power.de/en...
- Page 9 STEP 3 STEP 3 STEP 4 STEP 4 Vee Belt 4-26 Flat washer 4-M6x16 Hex bolt STEP 5 STEP 5 2-M8x25 Hex bolt 2ø8 Flat washer 2ø8 Spring washer KS 27THG 65/55 MACHINE COMPONENT DEFINITIONS 1). Coupler. Attaches the log splitter to your vehicle.
- Page 10 5). Log cradle. Keeps the log on the beam without operator assistance. Can be upgraded to a bigger table. 6). Engine. The air cooled engine powers the hydraulic pump. 7). Tires. Maximum rated speed is 30 mile per hour. 8). Gear pump. The gear pump makes the hydraulic oil flow through the system. 9).
- Page 11 STEP 4: ASSEMBLE THE REAR SUPPORT LEG STEP 4: ASSEMBLE THE REAR SUPPORT LEG Fix the rear outrigger leg to the tow bar using the catch pin, bolt M10, lock nut M10 and R pin. STEP 5: ATTACH THE HYDRAULIC CYLINDER STEP 5: ATTACH THE HYDRAULIC CYLINDER STEP 6: ATTACH THE CONTROL VALVE STEP 6: ATTACH THE CONTROL VALVE...
-
Page 12: Regular Maintenance Checklist
Attach the engine to the engine setting board using hex bolt Attach all the hoses to the machine as shown below, M8, the flat washer, lock washer, and lock nut. including hydraulic oil hose A, oil hose B, oil hose C and oil suction pipe. - Page 13 The equipment is sold without adaptation to the rules of operation and transportation on public roads. In each WARNING! country, the responsibility for the adaptation rests solely with the buyer. Before long-term storage of the log splitter during the en- gine work close the fuel valve and let the engine to elabo- IMPORTANT rate gasoline from carburetor.
-
Page 14: Troubleshooting
What When Inspect for exposed wire mesh and leaks. Replace all Hoses Every use worn or damaged hoses before starting the engine. Inspect for cracks and leaks. Replace all damaged Hydraulic fittings Every use fittings before starting the engine. Nuts and bolts Check for loose bolts. - Page 15 Malfiunktion Possible trouble Troubleshooting There is no fuel in the tank Add fuel,clean the fuel line Always use fresh fuel of branded varieties, good unleaded Clogged fuel line gasoline Pool, old or contaminated fuel in Clean fuel tank, fuel line to the carburetor the tank The air filter is dirty Clean the air filte...
- Page 17 CONTACTS Deutschland: DIMAX International GmbH Deutschland, Hauptstr. 134, 51143 Köln, www.ks-power.de Ihre Bestellungen Ihre Bestellungen orders@dimaxgroup.de Kundendienst, technische Kundendienst, technische Fragen und Unterstützung Fragen und Unterstützung support@dimaxgroup.de Garantie, Reparatur und Garantie, Reparatur und Service Service service@dimaxgroup.de Sonstiges Sonstiges info@dimaxgroup.de Polska: DIMAX International Poland Sp.z o.o.
