General guidelines for the use of the TANGO

3.1 Getting started

3.2 Hardware & software requirements
A valid SIM card.
Free compatible COM serial port
Pentium 90 or higher.
System memory: At least 64MB
Operating system: Windows® 95, 98/Me/2000/XP
For data, Web and email applications.
Dial-up networking configured to your ISP (Internet Service
Provider).

3.2.1 Minimum hardware interface to get started

As a minimum, it is necessary to connect the following interfaces to operate
the TANGO properly:

3.2.1.1 Connecting the external antenna (SMB type)

If you are using a Dual-Band GSM antenna (see chapter
external antenna), connect the SMB-female antenna connector to the SMB-
male modem connector.
For others external antenna, please refer to manuals of manufacture's GSM
antenna. Make sure the external antenna is for the GSM 900/1800 or
850/1900 frequency with impedance of 50Ω, and also connector is secured
tightly.
Note: Please use antenna designed for GSM 900/1800 or 850/1900 MHz
operation. Incorrect antenna will affect communication and even
damage the modem.

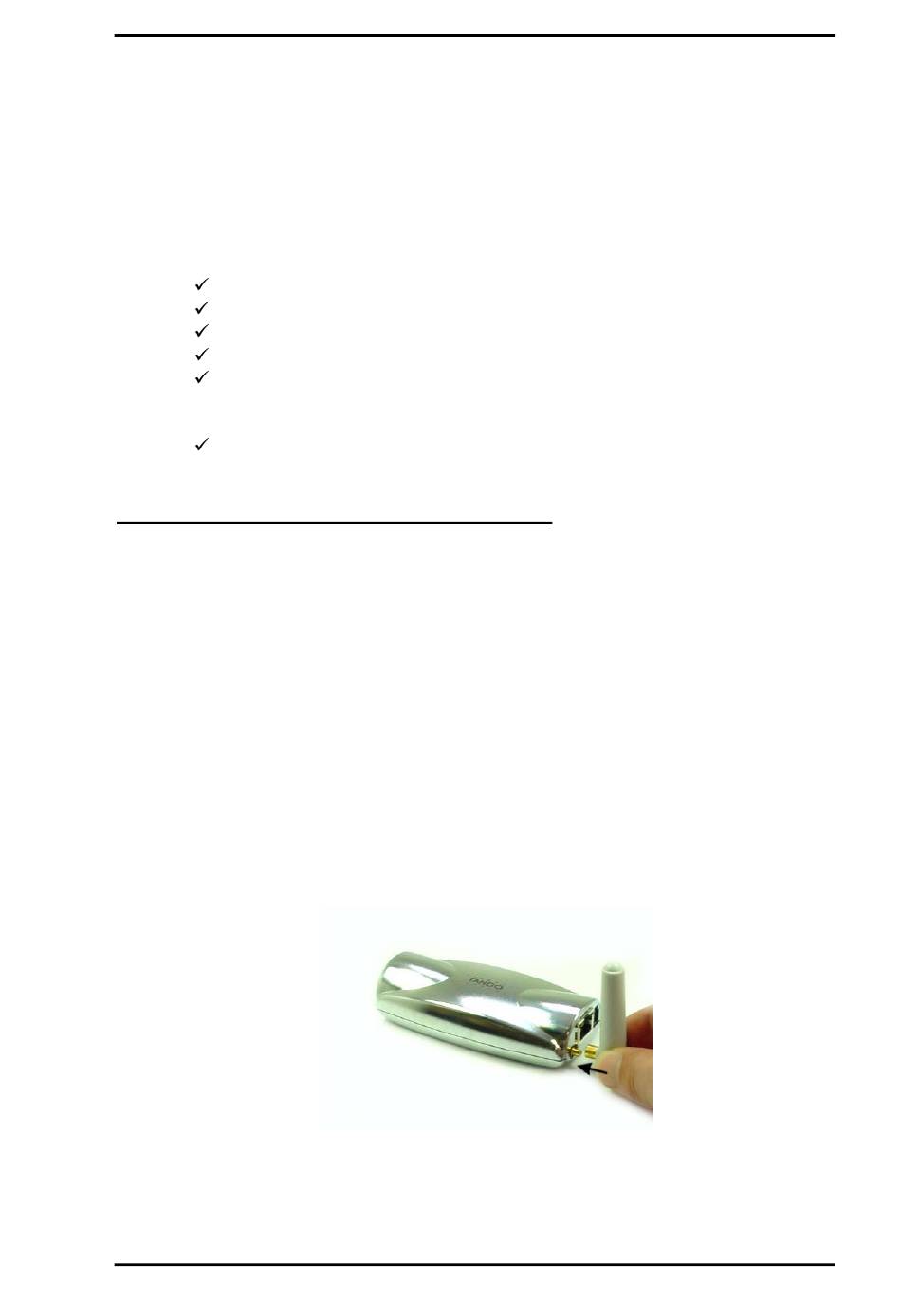

Figure 8: Connect the GSM antenna
