7.1.2
Routing Settings
The Routing settings make it possible to set up the IP routing rules for the FieldServer's internet and network
connections.
NOTE: The default connection is ETH1.
•
Select the default connection in the first row as either ETH 1 or ETH 2.
•
Click the Add Rule button to add a new row and set a new Destination Network, Netmask and
Gateway IP Address as needed.
•
Set the Priority for each connection (1-255 with 1 as the highest priority and 255 as the lowest).
•
Click the Save button to activate the new settings.

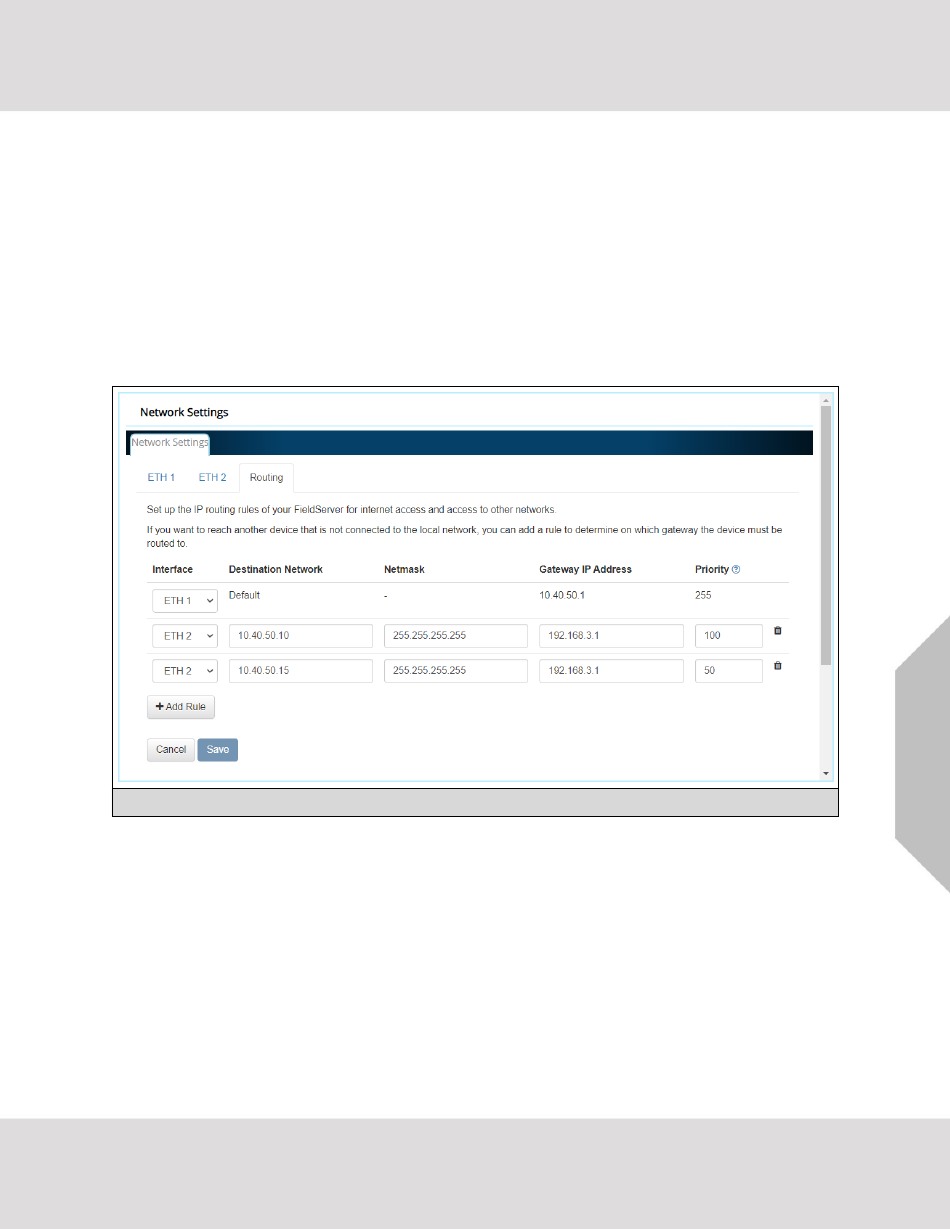

Figure 19: Routing Settings
QuickServer Start-up Guide
Configuring the Gateway
21
