USER MANUAL Table of Contents Safety Information What Is Included Specifications Main Power Connection DMX-512 Connection Output Connection Control Board DMX Profile Size & Weight Cleaning & Maintenance Parts List Warranty Customer Support... -
Page 2: Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 2. Do Not install the unit too close to a heat source. 3. Make sure cables are properly secured away from movement. 4. -
Page 3: Specifications
Specifications Part Numbers Fixture 5061– Deco Driver CV1 Mechanical Specifications Fastening System: Tear Drop Wall Mount Display: Digital Power Connection: Cable Mounted to Edison head. Housing: Black Painted DMX Connection: 5 Pin XLR & RJ45 in and out (optional 3 pin available) Output Connection: 5 pin Screw terminal &... -
Page 4: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit has Auto switching power supply. It will respond to 110V or 220V automatically This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. The occupation of the connection-cable is as follows: This fixture is equipped with an electronic power supply that will let the unit operate from 100V to 240V from 50Hz to 60Hz Cable (USA) -
Page 5: Output Connection
Output Connection Deco Driver CV1 is designed to be used as a driver for Constant Voltage lighting fixtures. There are many fixtures a Deco Driver can control . The Deco Lighting fixture manual will give you the information with power link limitations and control type for that unit. -
Page 6: Control Board

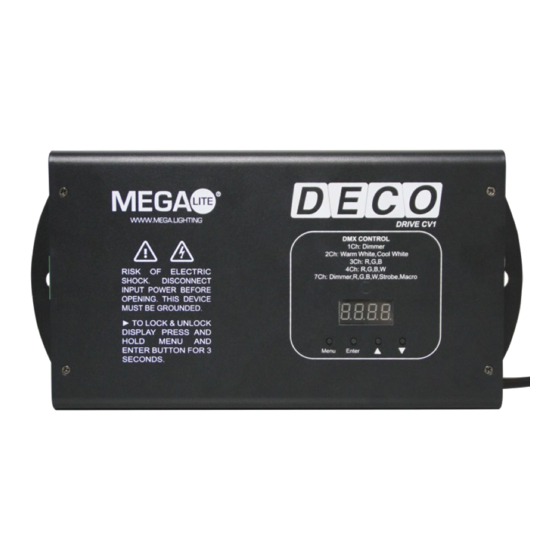

Control Board Lock Display: The display for the Deco Driver factory setting is lock screen function to unlock the display press and hold the Menu & Enter for 3 seconds. To relock press and hold the Menu & Enter for 3 seconds DMX: DMX mode allows you to set the DMX operational mode and start channel. -
Page 7: Dmx Profile
DMX Profile Deco CV1 1 Channel Mode Init DMX Channel Function Description Value Dimmer LED Intensity 0-255 Deco CV1 2 Channel Mode Init DMX Channel Function Description Value LED Color Warm White LED Intensity 0-255 LED Color Cool White LED Intensity 0-255 Deco CV1 3 Channel Mode Init... -
Page 8: Size & Weight
Size & Weight 11 15/16” 5 7/8” 2 1/8” 10 3/8” Fixture Size 11 15/16" X 5 7/8" X 2 1/8" Fixture Packaged 14” X 6.5" X 2.75" Net Weight 3.75lb Gross Weight 4.75lb... -
Page 9: Cleaning & Maintenance
Cleaning and Maintenance Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and electronics checked by an expert every 2 years. The following points have to be considered during the inspection: 1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded. -
Page 11: Customer Support
Customer Support Mega Lite has a customer support line to provide set up help and to answer any question should you encounter a prob- lem. Please visit our website for any other related technical documents. For service related issue please contact our service dept.
