Page 1: Table Of Contents

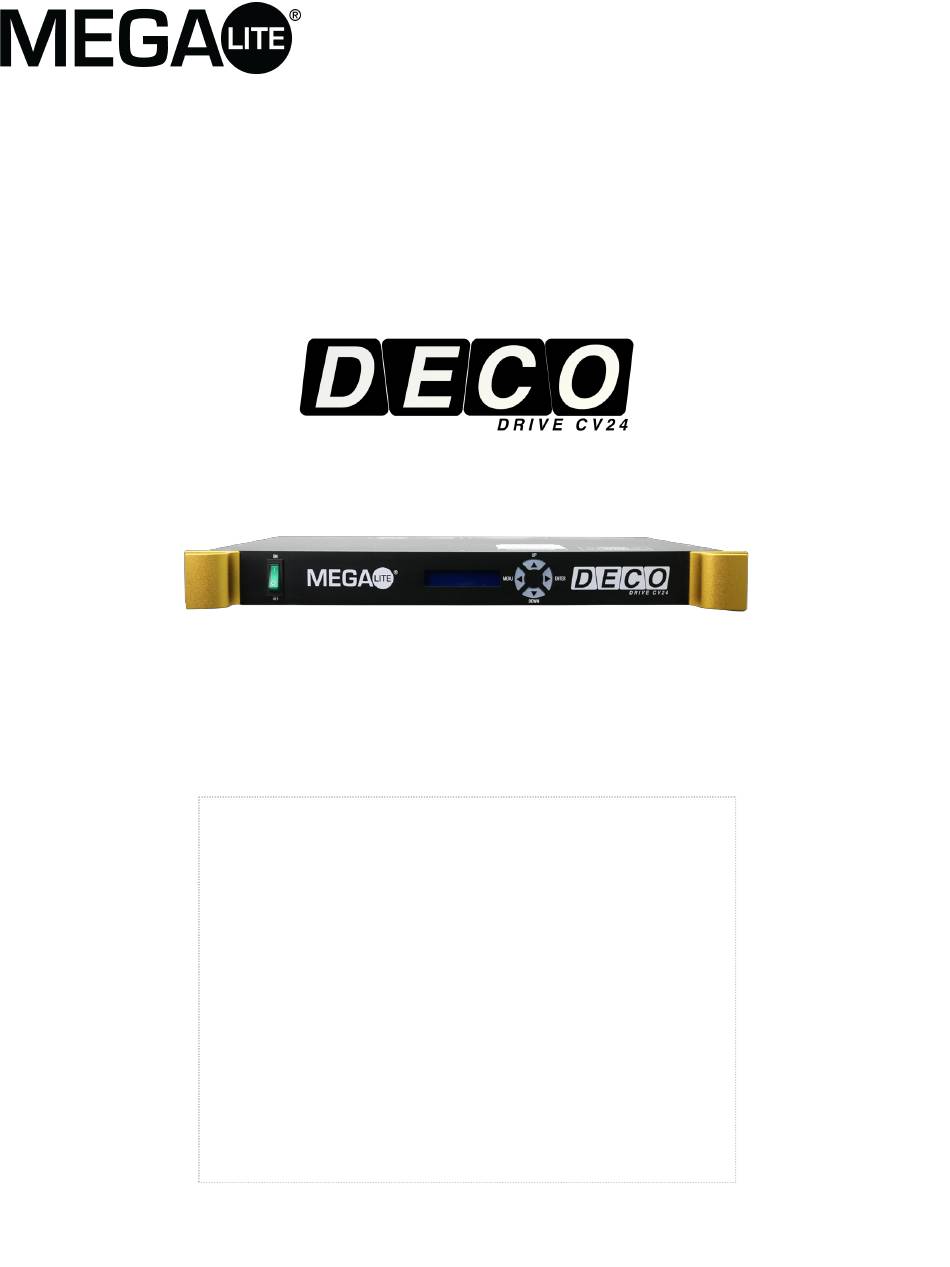

USER MANUAL Table of Contents Safety Information What Is Included Specifications Main Power Connection DMX-512 Connection 12V By-Pass Output Connection Control Board DMX Profile Size & Weight Cleaning & Maintenance Parts List Warranty Customer Service... -
Page 2: Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 2. Do Not install the unit too close to a heat source. 3. Make sure cables are properly secured away from movement. 4. -
Page 3: Specifications
Specifications Part Numbers Fixture 5066– Deco Driver CV24 Mechanical Specifications Fastening System: Removable rack ears for Wall Mounting , Rack mounting and Rear rack mounting Display: Digital Power Connection: Power Con (type) Cable Mounted to Nema 5-15 head. Housing: Black painted DMX Connection: 5 Pin XLR &... -
Page 4: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit has Auto switching power supply. It will respond to 110V or 220V automatically This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. F5AL250V (5x20mm) The occupation of the connection-cable is as follows: This fixture is equipped with an electronic power supply that will let the unit operate from 90V to 264V from 50Hz to 60Hz Cable (USA) -
Page 5: Output Connection
Output Connection Deco Driver CV4 is designed to be used as a driver for Constant Voltage lighting fixtures. There are many fixtures a Deco Driver can control . Each of the 24 output can be individually controlled and addressed to use the same or different fixture per each output. -
Page 6: Control Board
Control Board Lock Display: The display for the Deco Driver factory setting is lock screen function to unlock the display press and hold the Menu & Enter for 3 seconds DMX: System Mode Port Mode DMX Address DMX mode allows you to set the DMX ( DMX) (01) (01) -
Page 7: Dmx Profile
DMX Profile Deco CV24 1 Channel Mode Init DMX Channel Function Description Value Dimmer LED Intensity 0-255 Deco CV24 2 Channel Mode Init DMX Channel Function Description Value LED Color Warm White LED Intensity 0-255 LED Color Cool White LED Intensity 0-255 Deco CV24 3 Channel Mode Init... -
Page 8: Size & Weight
Size & Weight 17.37” 10.37” 1.75” 19” Fixture Size 19" X 10.37" X 1.75" Fixture Packaged 21" X 12" X 3.75" Net Weight 8.4lb Gross Weight 9.5lb... -
Page 9: Cleaning & Maintenance
Cleaning and Maintenance Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and electronics checked by an expert every 2 years. The following points have to be considered during the inspection: 1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded. -
Page 11: Customer Service
Customer Support Mega Lite has a customer support line to provide set up help and to answer any question should you encounter a prob- lem. Please visit our website for any other related technical documents. For service related issue please contact our service dept.
