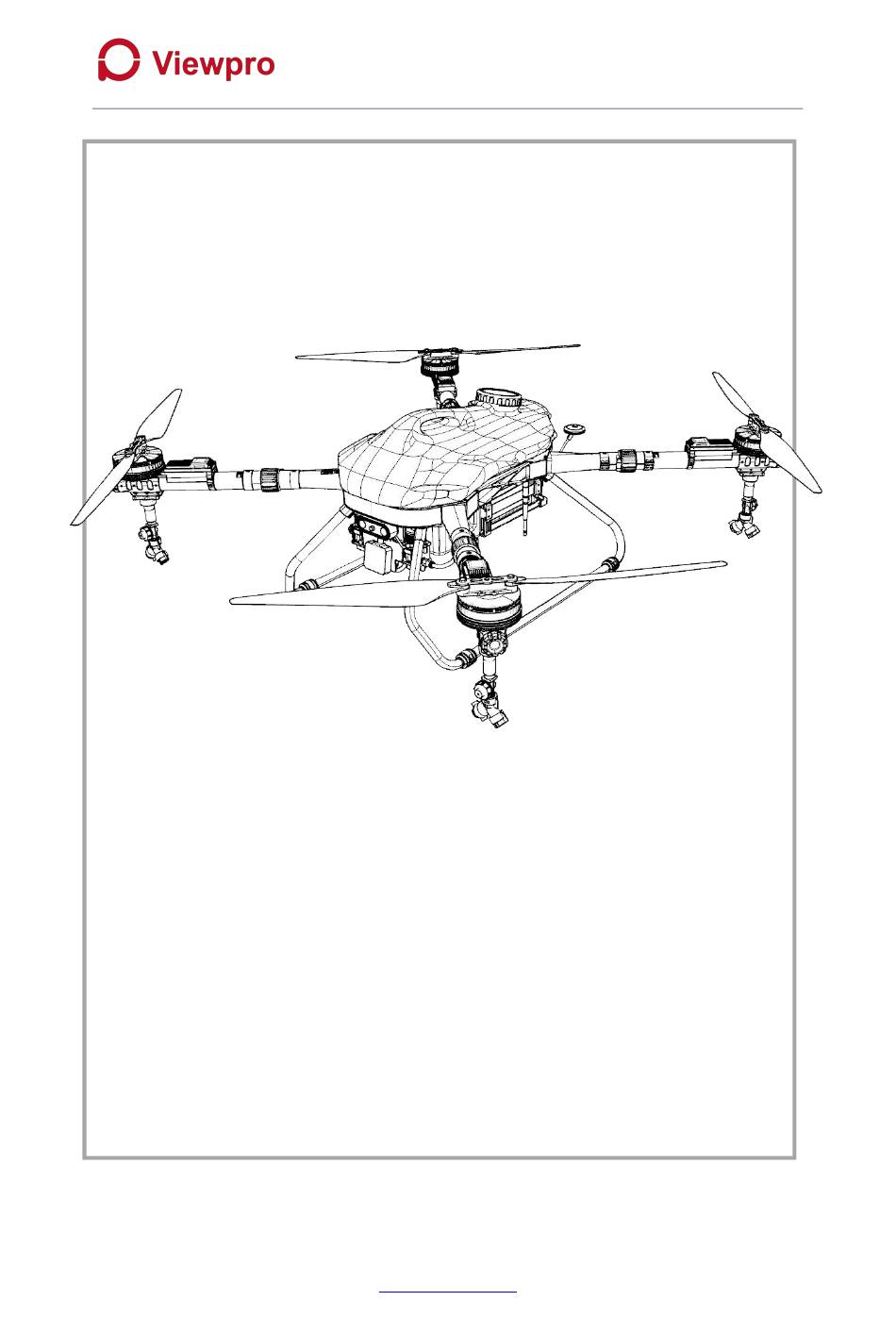

- Page 1 AF150 User Manual AF150 Agriculture Drone Drone Instructions www.viewprouav.com...
- Page 2 5. The product is not assembled or operated according to the correct guidance of this manual. 6. Other damages caused by self-modification or replacement of accessories or parts not produced by Viewpro innovatively, resulting in poor operation of the entire aircraft. 7. Damage caused by using Viewpro products or imitating Viewpro products.
- Page 3 AF150 User Manual 9. The aircraft's natural wear and tear (flight time of 100 hours or more), corrosion, aging of the wiring, etc. cause the aircraft itself to operate poorly. 10. The aircraft issued a low-voltage alarm and did not land, causing the aircraft to fall.
- Page 4 19. Pilots try to fly in places that are prohibited by laws and regulations or related administrative units. 20. The pilot fails to abide by the official announcement of Viewpro on the official website of Viewpro, this product manual, user quick start guide and this disclaimer mentioned in the use methods and various precautions for losses and legal liabilities.
- Page 5 AF150 User Manual Precautions for the use of aircraft 1. Please fly away from unsafe factors such as obstacles, crowds, high-voltage lines, etc. 2. Be sure to fly at a safe take-off weight to avoid danger. 3. Please check whether the propeller and motor are installed correctly and firmly, and ensure that the forward and reverse rotating propellers are installed in the correct position.
-
Page 6: Flight Environment Requirements
AF150 User Manual Flight environment requirements 1. Choose an open place with no tall buildings around as the flight field. Near buildings and trees, the GPS signal is relatively weak, and the GPS fixed-point function and GPS return-to-home function may be invalid. -
Page 7: Packing List
AF150 User Manual Packing List Before using this product, please check whether the package contains all the following items. If anything is missing, please contact Viewpro official. Remoto control X1 Propeller X4 Quadcopter X 1 12s battery X1 Charger X1... - Page 8 AF150 User Manual How to recognize the aircraft? The AF150 plant protection drone adopts a new design structure, and the whole body is folded in an embrace, which is convenient for transportation and storage during operation. The body adopts imported 3K carbon fiber material machine, and the material is high in strength and light in weight.
-
Page 9: Remote Control
AF150 User Manual Remote Control 1. Mobile phone holder 6. Custom 11. Water pump switch 16. Custom 2. Transmitting antenna 7. Custom 12. AB point record 17. Custom 3. Return to Home Gear 8.Remote 13. Right joystick 18.Data line port 4. -
Page 10: Flight Preparation
AF150 User Manual Flight Preparation Installation work before flight. After taking out the aircraft, please check whether the aircraft is damaged during transportation, and make sure that all parts of the aircraft are complete. Adjust the GPS of the aircraft to the horizontal position, the direction of the GPS arrow points towards the nose, and tighten the screws of the fixing parts. - Page 11 AF150 User Manual How to install the propeller ? When installing the propeller, please confirm the front and back of the propeller. And install the propeller according to the steering arrow marked on the motor. Use the supplied M4 screws to lock the holes in the corresponding motor.
-
Page 12: Remote Control Mode
AF150 User Manual Flight Control Knowledge Remote control mode: Please follow the figure below to understand the flight attitude of the aircraft: The aircraft factory defaults to "American Hand" control mode. If you need to change to "Japanese hand", you need to change the "joystick mode" to "Japanese hand"... - Page 13 AF150 User Manual APP 1 Flight Safety Instructions The necessary flight safety awareness is very important for the safety of surrounding people and the environment. 1. Flying in an open field: pay attention to obstacles such as telephone poles, high-voltage lines, and stay away from water, crowds and animals when flying.
- Page 14 AF150 User Manual APP 2 Connect to the mobile phone APP: open the remote control-power on the aircraft-enter the APP page-click on the Bluetooth connection function-select Bluetooth to search for the corresponding remote control. After the pairing is successful, the page will display all the aircraft data.
-
Page 15: App Main Interface
AF150 User Manual APP Main Interface 1. Return to the main page and switch between "Planning Land" and "Performing Job". 2. Bluetooth connection data display between the mobile phone APP and the remote control. 3. The receiving signal transmission display between the remote controller and the aircraft. - Page 16 AF150 User Manual menu, you can set various functions of the aircraft. 9. After the job is to be completed and the planned plots are allocated, select the job here. 10. One-key return home, the return home function needs to ensure that the flight altitude is no object at a similar altitude.
-
Page 17: Flight Calibration
AF150 User Manual Flight Calibration Accelerometer calibration After the aircraft is powered on and self-checked, enter the mobile app, open the function menu on the page, find "Sensor", and click "Accelerometer Calibration". Keep the aircraft static and wait for the tail lights to flash for 3-5 seconds before the calibration is... - Page 18 AF150 User Manual After the aircraft is powered on and self-checked, wait for the aircraft GPS to search, and the aircraft magnetic compass can be calibrated when the number of stars is sufficient. There are two ways to calibrate the compass.
-
Page 19: Flowmeter Calibration
AF150 User Manual Flowmeter Calibration After the aircraft is powered on and self-checked, enter the mobile app to open the page function menu and find the spray settings. Then click "Read". Click "Rheometer Calibration", add 5L of medicine to the medicine box, click the box and fill in the "5L" of medicine. And click "Start". Turn on the spray switch to exhaust the spray head until the amount of medicine is sprayed. -
Page 20: Flight Operations
AF150 User Manual Flight Operations Take Off Before flying, make sure that the aircraft is equipped with propellers and the various data are normal, and the aircraft is unlocked-perform the following stick action "inner eight sticks" to start the motors, and then push the throttle stick up to take off. - Page 21 AF150 User Manual Planning Land Click to enter the APP, select "Planning Land" Locate the aircraft and the operator, click the top button of the three buttons on the left-"Task List" It is used to plan plots for the aircraft to perform flight defense operations.
- Page 22 AF150 User Manual My plot: You can select a plot that has already been planned for reworking (all settings do not need to be changed). Nearby plots: You can select plots planned nearby. Add plot: Add a new plot to plan a new work area.
- Page 23 AF150 User Manual operations. Or to add a new plot, click "Add Plot", and the interface shown in Figure 2 will appear. There are three ways to plan plots: Handheld GPS (RTK) marker: Use a mobile phone to connect to the RTK marker (the device turns on the OTG function) for border marking around the work area.
- Page 24 AF150 User Manual The planned plots need to be assigned tasks. Enter the name to record plot information. The plots to be operated can be found in the execution list. If you need to assign it to a third party, you also need to enter the third-party account. After the assignment is completed, you can find it in the task list.
- Page 25 AF150 User Manual Execute job Click to enter the APP, select "Execute job" Locate the aircraft and the operator, click the top button of the three buttons on the left-"Task List" Used to view and select plots for the aircraft to perform flight defense operations.
- Page 26 AF150 User Manual Perform the job Auxiliary points: add auxiliary points, which can be used to correct positioning deviations on the plot during secondary operations. Carry out work: Carry out the planned plots. Route adjustment: adjust the route. Operating distance: Adjust the distance between each route, which is related to the spray pattern.
- Page 27 AF150 User Manual After adjusting the route, click Execute, and the APP will pop up the pre-flight setting window. The spraying mode can be set: manual spraying, precise spraying, linkage spraying. The flying speed can be set: 0m/s～10m/s Set whether to enable terrain following and coordinated turns (U-turn) Click OK.
-
Page 28: Manual Operation Mode
AF150 User Manual Manual operation mode For autonomous flight operations, the mode switch must be switched to "manual operation mode" for autonomous operations. After the aircraft takes off normally, turn on the water pump switch, and the aircraft will start spraying. - Page 29 AF150 User Manual Left: Turn off and return home Middle: Returning after medicine Left: Turn on the water pump break Right: Turn off the pump Right: Turn on return home Above: Attitude Mode Above: Close AB Middle: Manual operation Middle: Point A record...
-
Page 30: Aircraft Parameters
AF150 User Manual the right stick for 3 seconds. After the lever is struck, the aircraft will fly autonomously. There is no restriction on the topography for the AB point operation. Be sure to observe the operation situation. Right Homework... - Page 31 AF150 User Manual The horizontal speed, line spacing, return altitude, etc. of the aircraft can be changed according to the value range. Operation completion behavior: Return home (the aircraft will directly return to the latest take-off point according to the set altitude)
-
Page 32: App Settings
AF150 User Manual Point to the next target (the nose of the aircraft is facing the next target point, keeping the nose facing forward) Heading when returning home: No change (the aircraft will return home in its original attitude) The nose is towards the home point (the nose is towards the take-off point) - Page 33 AF150 User Manual Note: After the obstacle avoidance function is turned on, when obstacles appear in the obstacle avoidance range, the app will show voice prompts Terrain radar App settings 1. After the imitation ground radar module is installed and connected, open the app and enter the setting>...
- Page 34 AF150 User Manual module displays the connected green words, the connection is successful; 2. Turn on the analogue radar channel switch on the remote control to enable the analogue radar function; 3. The terrain following sensitivity can be adjusted according to the different operating scenarios.
- Page 35 AF150 User Manual ViewproUAV Tech. Ltd Website: www.viewprouav.com Support: info@viewprotech.com Tell: +86 755 8605 2486 Addr.: Rm 2303, East Block B, Coast Times APT, Shennan Blvd, Nanshan Dist, Shenzhen, China www.viewprouav.com...
