Summary of Contents for Levil Aviation iLevil3 SW
- Page 1 iLevil Wireless Integrated Avionics Module Instruction Manual AHRS, GPS, ADS-B 978 / 1090 MHz Receiver, Data recorder...

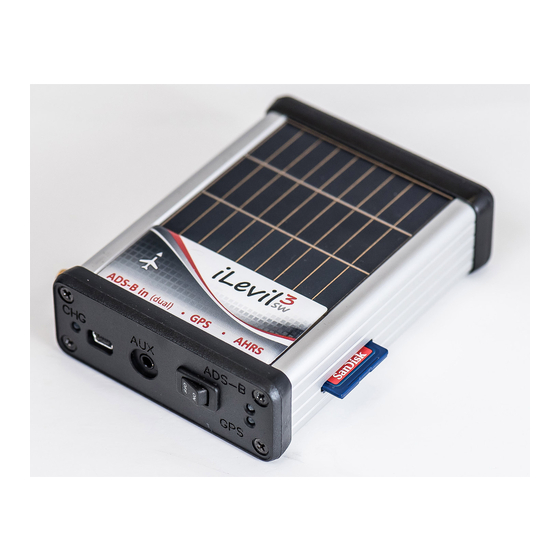

- Page 2 iLevil 3 SW SOLAR PANELS ADS-B CARD ANTENNA PORT ADS-B CHARGING MINI USB SERIAL PORT ON/OFF POWER/GPS PORT SWITCH...
-
Page 3: Package Contents
• SD Card Charge before use • Charge the iLevil3 SW fully using the USB cable • The LED next to USB port indicates if the device is charging. • When the LED goes off, the battery is charged. (Takes up to 4 hrs.) •... - Page 4 Alignment • Attach the supplied ADS-B antenna. • Find a location that will allow your iLevil SW 3 to have a clear view of the sky, for satellite reception, and “line of sight” to ADS-B ground stations and other aircraft around you. •...
- Page 5 Connecting to your favorite App The iLevil series offers the most compatibility with Apps on both iOS and Android platforms. • Turn ON your iLevil with the ON/OFF switch. (LEDs will light up) • Tap Settings icon on your tablet. •...
-
Page 6: Led Indicators
LED Indicators Label Status Description Power/GPS Slow Blink Green: Power ON / No GPS Fix Solid Green: Power ON / GPS fix acquired Power Off ADS-B Slow Blink Green: Traffic Received Solid Green: Weather and traffic received Off: No traffic or Weather received Charging Charging Solid Green:... -
Page 7: Magnetic Heading
Magnetic Heading There are two ways to obtain heading information from the iLevil, depending on the navigation App of choice, you may choose between the following: -True Track: Heading information based on GPS track. -Magnetic Heading: Heading information determined by a combination of 3-axis magnetometer and gyros that form part of the internal AHRS. -
Page 8: Specifications
Specifications AHRS WIFI • 360 degree pitch and bank operation • Android and iOS compatible • GPS Independent attitude. • Supports up to 7 devices connected • 300 deg/sec max turn rate simultaneously (UDP broadcast) • 4Gs max rating. • Supports multiple protocols: •... -
Page 9: Environmental Requirements
Environmental Requirements • Temperature range: -10° to 40 ° C (14 ° F to 104 ° F). • Clear view to sky for best GPS reception. • For best ADS-B reception line of sight view with ADS-B ground based towers and min 2000 ft. •... -
Page 10: Serial Port
Serial Port The iLevil3 features a serial port that can be used for data transfer or 5V external power input for automatic ON/OFF operations. For more information check the iLevil Relay feature on our website www.aviation.levil.com or email info@levil.com Battery Safety Instructions •... - Page 11 AHRS Utility APP AHRS utility is a free application designed to display AHRS data graphically and numerically. User must be connected to the Wi-Fi network of the iLevil. • • The application will NOT display airplane attitude based on the internal gyros of your iPad/iPhone or GPS data. Air data is only available on the AW model.
- Page 12 Engine Config: User must have a compatible EIS connected to the iLevil to display this information. All gauges can be set up to display desired information. NOTE: Device Config option should only be used with the advice of Levil Aviation Tech Support. Any settings changed incorrectly in this tab can lead to iLevil malfunctioning!
- Page 13 Data Recording (SD CARD) The iLevil will automatically begin recording if the unit is powered on with an SD card already inserted. • If the iLevil is powered on with NO SD card inserted, recording will begin by simply inserting SD card. •...
- Page 14 Data Recording (SD CARD) How to change Callsign: Open AHRS Utility • • Tap on the Device Config tab. Scroll down to find Callsign. • Tap and type desired Callsign • Press Apply • How to use Triggers: Triggers are for use while recording in .csv format.
-
Page 15: Helpful Tips
Helpful Tips • If you encounter WiFi connection problems, try resetting the tablet’s WiFi (disable/enable) • If using Apple devices, you may use our free AHRS Utility App to see battery percent, GPS signal power, ADS-B diagnostics etc. • Do Not switch the iLevil ON/OFF button swiftly when resetting power to the iLevil. •...
