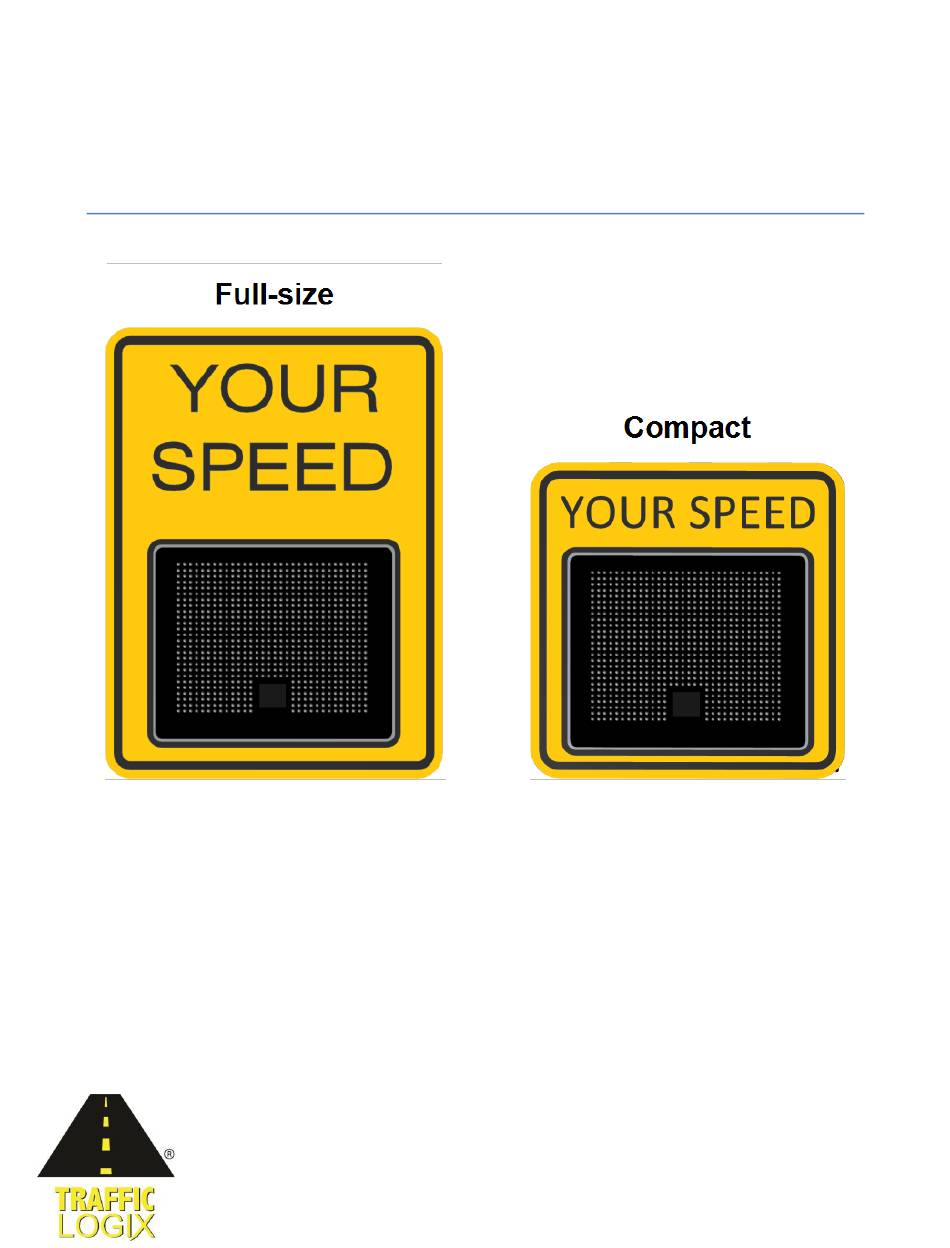

    Overview The versatile Traffic Logix SafePace® 650 radar feedback sign offers a relatively lightweight, portable speed display and dynamic messaging solution that doesn't compromise on digit size or visibility. It displays vehicle speed in full 15" LED digits and can be seen from up to 600 feet away. This innovative sign is also capable of displaying text, graphics, or animation.
  • Page 4: Site Selection

    The structure that the radar sign is mounted to should be stable and firm. Avoid structures that are likely to be affected by wind or rain. The suggested pole type for installation is Page 4 Copyright ©2015 Traffic Logix® Corp. SafePace® 650: Installation Manual V. 1.5...
  • Page 5: Positioning The Sign

    7 feet above the surface of the road. The display should be turned towards oncoming traffic so that it is clearly visible to approaching drivers. Figure 3, Symbolic location Range of Detection up to 1200 ft. Figure 4, Zone of detection Page 5 Copyright ©2015 Traffic Logix® Corp. SafePace® 650: Installation Manual V. 1.5...
  • Page 6: Installation

    Insert the stainless steel banding strap into the bracket and fasten the sign to the pole. Tighten with a nut driver until secure. See Figure 7 below. Figure 7, Sign Secured to a Pole with Banding Strap Page 6 Copyright ©2015 Traffic Logix® Corp. SafePace® 650: Installation Manual V. 1.5...
  • Page 7: Universal Mounting Bracket System (Optional)

    The Pole Bracket can be secured to any type of standard pole or Telespar type pole by a choice of banding straps, lag screws, or bolts and nuts. Figure 10, Pole Bracket mounted to circular pole Figure 11, Pole Bracket mounted to 2” Telespar pole Page 7 Copyright ©2015 Traffic Logix® Corp. SafePace® 650: Installation Manual V. 1.5...
  • Page 8 POLE BRACKET Banding strap holes (4) Teleapar pole mounting holes (6) U-Channel mounting holes (4) Figure 19 Page 8 Copyright ©2015 Traffic Logix® Corp. SafePace® 650: Installation Manual V. 1.5...
  • Page 9: Mounting And Dismounting The Sign

    Mounting Bracket System, the key must be removed from the lock and the locking mechanism must be set in the “unlocked” position (see Figure 23) BEFORE sliding the sign ON or OFF of the Pole Bracket. Page 9 Copyright ©2015 Traffic Logix® Corp. SafePace® 650: Installation Manual V. 1.5...
  • Page 10: Powering The Sign

    SafePace® 650 radar sign are stable and safe when handled and used properly. Care should be taken not to bend the battery or puncture it with sharp objects as fire and/or explosion may result. Page 10 Copyright ©2015 Traffic Logix® Corp. SafePace® 650: Installation Manual V. 1.5...
  • Page 11 Note: The 3 cell battery requires a 3 cell battery charger and the 4 cell battery requires a 4 cell battery charger. Warning: Using the wrong charger risks damaging the battery which isn’t covered by the warranty. Page 11 Copyright ©2015 Traffic Logix® Corp. SafePace® 650: Installation Manual V. 1.5...
  • Page 12: Installing The Battery

    Gently insert each of the batteries into the lower bracket and lay them flat against the enclosure. Next, gently close the battery bracket door and make sure the plunger pins lock into place. Page 12 Copyright ©2015 Traffic Logix® Corp. SafePace® 650: Installation Manual V. 1.5...
  • Page 13 Once the batteries are secured in the battery bracket, feed each battery’s connector through the adjacent space in the lower bracket, then connect the battery and sign power connectors. Once connected, the sign will power on. Page 13 Copyright ©2015 Traffic Logix® Corp. SafePace® 650: Installation Manual V. 1.5...
  • Page 14: Solar Power

    For example, if the latitude of the installation site is 45 degrees then the solar panel should be installed at an angle of 60 degrees, as shown in Figure 31. Figure 31 Page 14 Copyright ©2015 Traffic Logix® Corp. SafePace® 650: Installation Manual V. 1.5...
  • Page 15: Wiring The Solar Panel To The Sign

    Slide the connectors together until you hear a click and you can no longer slide them apart easily. Once connected the cables should look like the following: Figure 35, Sign and Panel cables connected Page 15 Copyright ©2015 Traffic Logix® Corp. SafePace® 650: Installation Manual V. 1.5...
  • Page 16: Turning The Sign On And Off

    ON/OFF switch supplied with the sign. To turn the sign off, simply disconnect the battery on the battery models and the connector on the AC and Solar models. Page 16 Copyright ©2015 Traffic Logix® Corp. SafePace® 650: Installation Manual V. 1.5...
  • Page 17: Operating Your Sign

    If you suspect that you require a replacement of any of the above-mentioned components, please call Technical Support. If necessary, a Diagnostic Toolbox can be sent out to help trouble-shoot any issues you may be having. Page 17 Copyright ©2015 Traffic Logix® Corp. SafePace® 650: Installation Manual V. 1.5...
  • Page 18: Warranty

    THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY DISCLAIMED. Traffic Logix does not warrant that any of its products will meet or comply with the requirements of any applicable federal, state or local safety code, law, regulation or ordinance (“Applicable Safety Laws”).
  • Page 19: Technical Support

    Conditional Terms of Use or Applicable Safety Laws, or if the Product has been altered in any way by anyone other than Traffic Logix, or if the Product has been subject to any misuse or accident. In addition, Buyer assumes and agrees to indemnify Traffic Logix for all risk, liability or expense that results from any installation or use of the Product that is not in accordance with the Conditional Terms of Use or any Applicable Safety Laws.
