Get it right!
AUSTRALIA
VIC: 1 Endeavour Way BRAESIDE 3195
HEAD OFFICE – QLD:415 Creek Road MT GRAVATT 4122
Telephone: (03) 9588 1770, Fax: (03) 9588 1779
Telephone: (07) 3323 6555, Fax: (07) 3323 6500
WA: 16 Ledgar Road BALCATTA 6021
Nth QLD: 36 Hugh Ryan Drive GARBUTT 4814
Telephone: (08) 9344 3871, Fax: (08) 9345 3923
Telephone: (07) 4779 4880, Fax: (07) 4779 6714
NEW ZEALAND
NSW: 6 Forsyth Close WETHERILL PARK 2164
22/761 Great South Road, Penrose AUCKLAND
Telephone: (02) 9729 0166, Fax: (02) 9729 2759
Telephone (09) 571 0210, Fax: 0800 766 574
Manufactured by Poolrite Equipment Pty Ltd
Website: www.poolrite.com.au Email: info@poolrite.com.au
ABN 11 001 674 004
Manufacturer reserves the right to alter specifications without notice.

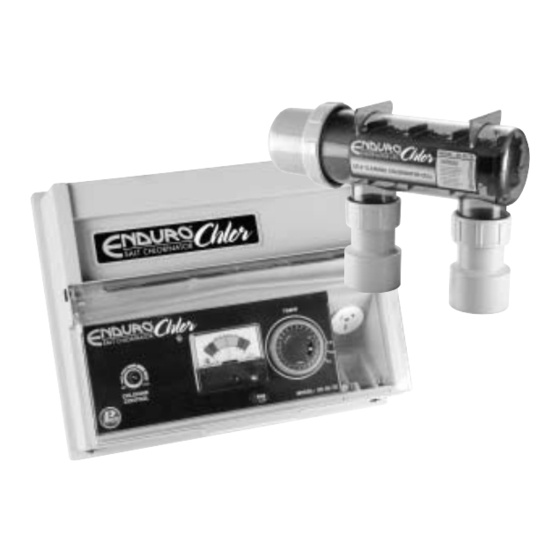

OWNERS MANUAL
PLR/183 (05/05)
SC25–TS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PoolRite ENDURO Chlor SC25-TS
Summary of Contents for PoolRite ENDURO Chlor SC25-TS
- Page 1 22/761 Great South Road, Penrose AUCKLAND Telephone: (02) 9729 0166, Fax: (02) 9729 2759 Telephone (09) 571 0210, Fax: 0800 766 574 Manufactured by Poolrite Equipment Pty Ltd Website: www.poolrite.com.au Email: info@poolrite.com.au ABN 11 001 674 004 Manufacturer reserves the right to alter specifications without notice.
- Page 2 Unless with the express prior authority of Poolrite, any repair or replace- Penrose. Auckland New Zealand. ment shall be provided only by Poolrite or it’s authorised distributors and this Warranty Telephone: (09) 571 0210 shall not extend to any expenditure otherwise incurred.
-
Page 3: Table Of Contents
INDEX INSTALLATION INSTRUCTIONS Enduro Chlor Cell Enduro Chlor Power Pack Connecting The Pool Pump Off-Peak Installations Adding Salt To The Pool Marble Plaster Surface Pools Calculating Pool Capacity Calculating Salt To Be Added Salt Calculation Chart Adding Salt and Stabiliser Dissolving The Salt When The Salt Has Dissolved SETTINGS AND CONTROLS... -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS OWNERS MANUAL Please hand this Owner’s Manual to the pool owner after installation is completed as it contains the Warranty Card and vital information for correctly maintaining the pool and this product! Cell must be level within 5º ENDURO CHLOR CELL Ideally, the electrolytic cell should be installed in a position... -
Page 5: Enduro Chlor Power Pack
ENDURO CHLOR POWER PACK The Power Pack Enclosure is approved and rated to Degree Of Protection IP24 and therefore can legally be installed in the Pool Zone as defined in the AS/NZS 3000 Wiring Rules. It must be mounted on a vertical wall or fence within 1.5 metres of the cell and at least 1 metre above the ground. -
Page 6: Connecting The Pool Pump
CONNECTING THE POOL PUMP Raise the clear Control Panel Cover on the front of the Power Pack and loosen the two retaining screws in the bottom right hand corner and remove the Cable Entry Cover by pulling downwards. Plug the pool pump into the pump socket at the bottom of the unit. (see Note below about the use of large or 3 phase pumps). -
Page 7: Adding Salt To The Pool
If double adaptors or stackable plugs are employed to operate more than one pump directly from this Pump Outlet Socket the Warranty will be void. Please refer to your Poolrite State Office for details. ADDING SALT TO THE POOL Start up procedure for marble surface pools... -
Page 8: Salt Calculation Chart
What Salt Concentration To Use Although your Enduro Chlor has been designed to operate with a wide range of salt concentrations, the minimum recommended level is 5000 mg/l (P.P.M.). However with heated and outdoor pools in tropical and sub-tropical climates, salt levels between 5000 and 7000 mg/l can be maintained in order to gain the benefits of increased chlorine output, reduced cell maintenance and extended cell life. -
Page 9: Dissolving The Salt
Dissolving The Salt Before attempting to operate the Enduro Chlor cell, the salt must be allowed to fully dissolve in the pool water. This is best achieved (after allowing sufficient time for the glue on the pipe fittings to set properly) by running the filter pump without the cell operating for 24 hours to circulate the water. -
Page 10: Setting The Time Switch
TIME SWITCH Manual Operation Move the slide switch on the face of the Time Switch up to the position marked “On”. Filter pump and cell should now be operating (if the Chlorine Control is correctly adjusted). To turn the filter pump and cell off, move the slide switch to the centre “OFF”... -
Page 11: How Your Enduro Chlor Works
Common salt (Sodium Chloride) is made up of two elements, sodium and chlorine. When your Poolrite Enduro Chlor is installed a measured amount of salt is dissolved in the pool water to make it slightly salty (about 15% of the salt found in sea water). -
Page 12: Adding Acid
Controlling the pH of your pool is vital to the correct operation of the Enduro Chlor and the effectiveness of the chlorine produced to kill algae and bacteria and the comfort of bathers. Correct pH also effects the life of metals, cement products and plaster finishes in the pool. -
Page 13: Maintaining Salt Levels
We suggest levels as high as 7000 mg/l (ppm) in these situation MAINTENANCE OF YOUR ENDURO CHLOR SC25-TS Your Enduro Chlor Self Clean has been designed to operate for extended periods with a minimum of maintenance. The cell cleaning function is performed automatically via the inbuilt electronic control module. -
Page 14: Overload Protection
In the event that this should occur, please call for service. HOW LONG SHOULD YOUR CHLORINATOR CELL LAST? When installed on a normal domestic pool, Poolrite cell electrodes have a nominal life expectancy of approximately four years if they are correctly maintained. -
Page 15: Common Causes Of Cell Failure
To assist you in prolonging the Common Causes Of life of your Enduro Chlor Cell Premature Cell Failure Electrodes, we have provided a) Operating the cell with too little salt in the this chart of Common Causes water (this can often happen after heavy Of Premature Cell Failure based rain). -
Page 17: Electrical Specifications
Cell Fuse (all models) = Type-M205 / Slow Blow / 3.15A (Fitted Internally) APPROVALS All Poolrite Enduro Chlor Salt Chlorinators have been fully tested and approved. These have been issued with a Certificate of Approval. The Power Pack Enclosure is rated as complying with IP24 as per AS1939 and as such can be legally installed within the designated Pool Zone as defined in section 7 of AS/NZS 3000.
