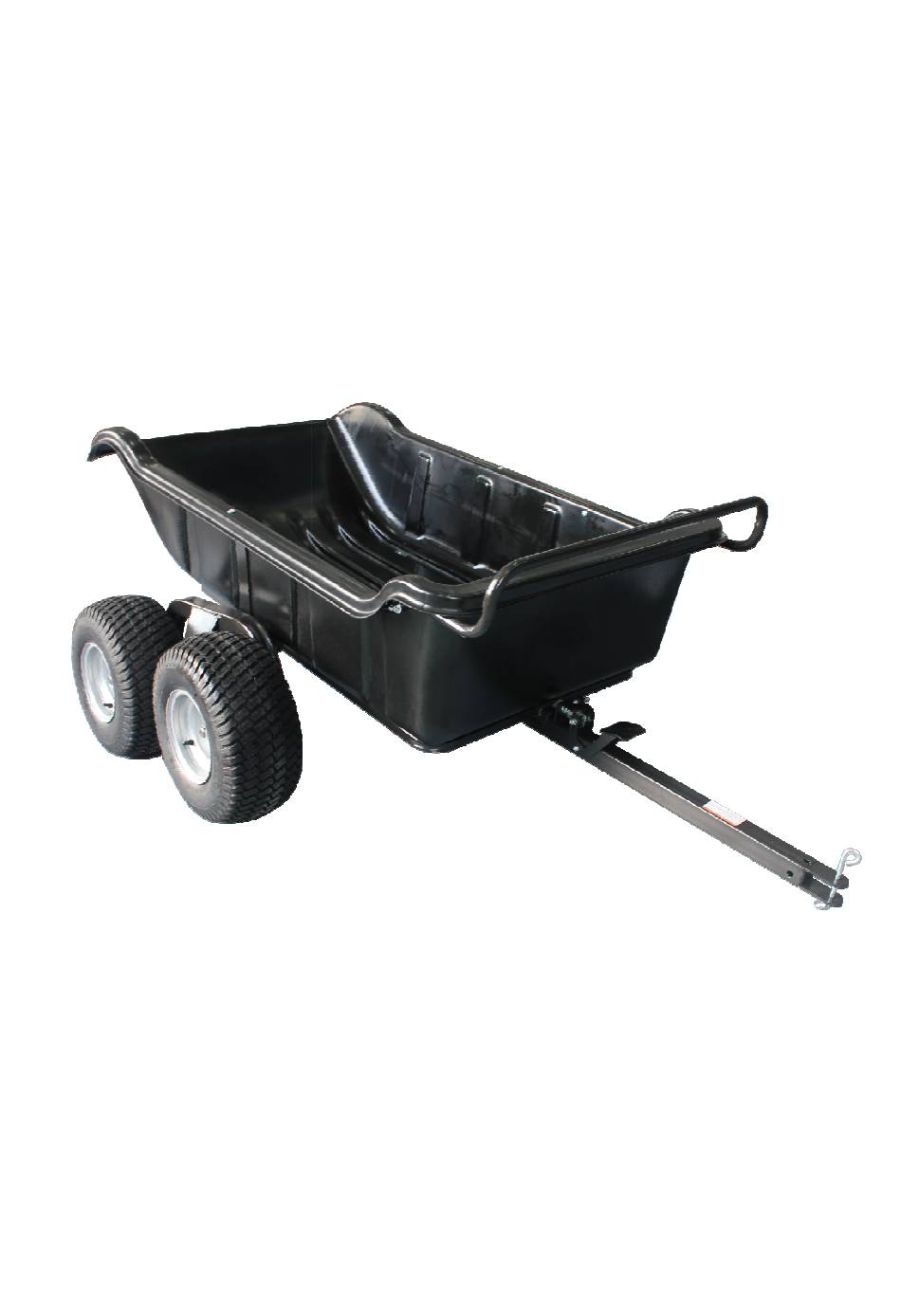

- Page 1 1500LB 00LB POLY DUMP CART DUMP CART FOUR WHEELS FOUR WHEELS FOUR WHEELS Instruction & Assembly Instruction & Assembly SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE REV102616 DCP1500...
-
Page 2: Table Of Contents
Table of Contents General Warnings and Rules ................3 Hazard Signal Word Definition ................4 Controls and Features Identification ..............5 Assembly Instructions .................. 6, 7, 8 Operation Instructions ..................9 Maintenance and Storage .................. 10 Specification ....................... 11 Parts Drawing & Parts List ................12, 13 - 2 -... - Page 3 GENERAL WARNINGS READ and UNDERSTAND this manual READ and UNDERSTAND this manual completely before using Utility Utility Dump Cart. Operator must read and understand all safety nderstand all safety and warning information, operating instructions, information, operating instructions, maintenance and storage instructions maintenance and storage instructions before operating this equipment.
-
Page 4: Hazard Signal Word Definition
Hazard Signal Word Definitions Hazard Signal Word Definitions Hazard Signal Word Definitions This is the safety alert symbol. It is used to alert This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all you to potential personal injury hazards. - Page 5 Controls and Features Controls and Features Identification Identification Read this owner’s manual before operating Read this owner’s manual before operating the equipment. Familiarize yourself with the location and yourself with the location and function of the controls and features. Save this manual for future reference. function of the controls and features.
-
Page 6: Assembly Instructions
CAUTION Read and follow all instructions for ead and follow all instructions for assembly and operation. Failure to properly assemble ailure to properly assemble this equipment could result in serious injury to the user or bystanders, or cause equipment damage. equipment could result in serious injury to the user or bystanders, or cause equipment damage. - Page 7 STEP 2: Attach the Tires 1. Attach axle pivot assembly (#3) to the axle, using the flat washer Ø24 (#26) and O lock ring (#22). Then attach the tires (#5) to the axle pivot assembly, using the flat washer Ø24 (#26) and O lock ring (#22). STEP 3: Attach the U-Frame 2.
- Page 8 STEP 4: Attach the Poly Tray 1. Attach the poly tray (#4) to the frame, secure with the cross pan head bolt M10x25 (#37), square gasket (#17), large flat washer Ø10 (#28) and nylon lock nut M10 (#31). 2. Secure the edge of poly tray to the frame with cross pan head bolt M10x25 (#37), flat washer Ø10 (#28) and nylon lock nut M10 (#31).
-
Page 9: Operation Instructions
Operation Instructions Operation Instructions WARNING Before using the utility dump cart dump cart, review the instructions below and safety information and safety information. Failure to follow these instructions may result in may result in property damage or injury to the operator injury to the operator or bystanders. - Page 10 Operation Instructions 1. Flip up the safety device and press the pedal down to release the bed for dumping. 2. When towing the cart, flip down the safety device to lock the bed to avoid accidental dumping. Warning: Do not press the pedal after the safety device is locked. - 10 -...
-
Page 11: Maintenance And Storage
Maintenance Maintenance and Storage WARNING Improper maintenance and storage of the Improper maintenance and storage of the utility dump cart may void your warranty. may void your warranty. MAINTENANCE After each use clean material out of material out of the cart box. •... -
Page 12: Specification
Specifications Load Capacity ..................... 1500lb Box Dimensions ................. 69.1”x39.8”x17.9” Overall Dimensions ................97”x58”x31” Wheel Size ......................18” Wheel Type ................... Pneumatic Hitch Type ....................Pin Style Tire Pressure (PSI) .................... 28 Unit Weight ....................183lb - 12 -... -
Page 13: Parts Drawing & Parts List
Parts Drawing & Parts List - 13 -... - Page 14 Parts Drawing & Parts List Ref# Drawing No. Description DCP1500-01000 Wheel Stand DCP1500-02000 U-Frame DCP1200-03000 Axle Pivot Assembly DCP1500-00001 Poly Tray DCP1200-00002 Tire DCP1500-00002 Hand Shank DCP1500-03000 Hitch Tube DCP1000-04001 Support Plate DCP01000-04000 Hitch Pull Weldment DCP1000-00003 Trailer Pivot Tube DCP0600-00002 Safety Fork DCP0600-00003...
