Table of Contents General Warnings and Rules ................3 Hazard Signal Word Definition ................4 Controls and Features Identification ..............5 Component & Hardware .................. 6, 7 Assembly Instructions ..............8, 9 10, 11, 12 Operation Instructions..................13 Maintenance and Storage .................. 14 Specification ......................
GENERAL WARNINGS READ and UNDERSTAND this manual completely before using Utility Dump Cart. Operator must read and understand all safety and warning information, operating instructions, maintenance and storage instructions before operating this equipment. Failure to properly operate and maintain the utility dump cart could result in serious injury to the operator or bystanders. Operation Warnings l Do not at any time carry passengers sit or stand on the cart.
Hazard Signal Word Definitions This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER indicates an imminently hazardous DANGER situation which, if not avoided, will result in death or serious injury.
Controls and Features Identification Read this owner’s manual before operating the equipment. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. 1) Removable Tailgate – Push up to remove for loading and unloading. 2) Tires / Wheel –...

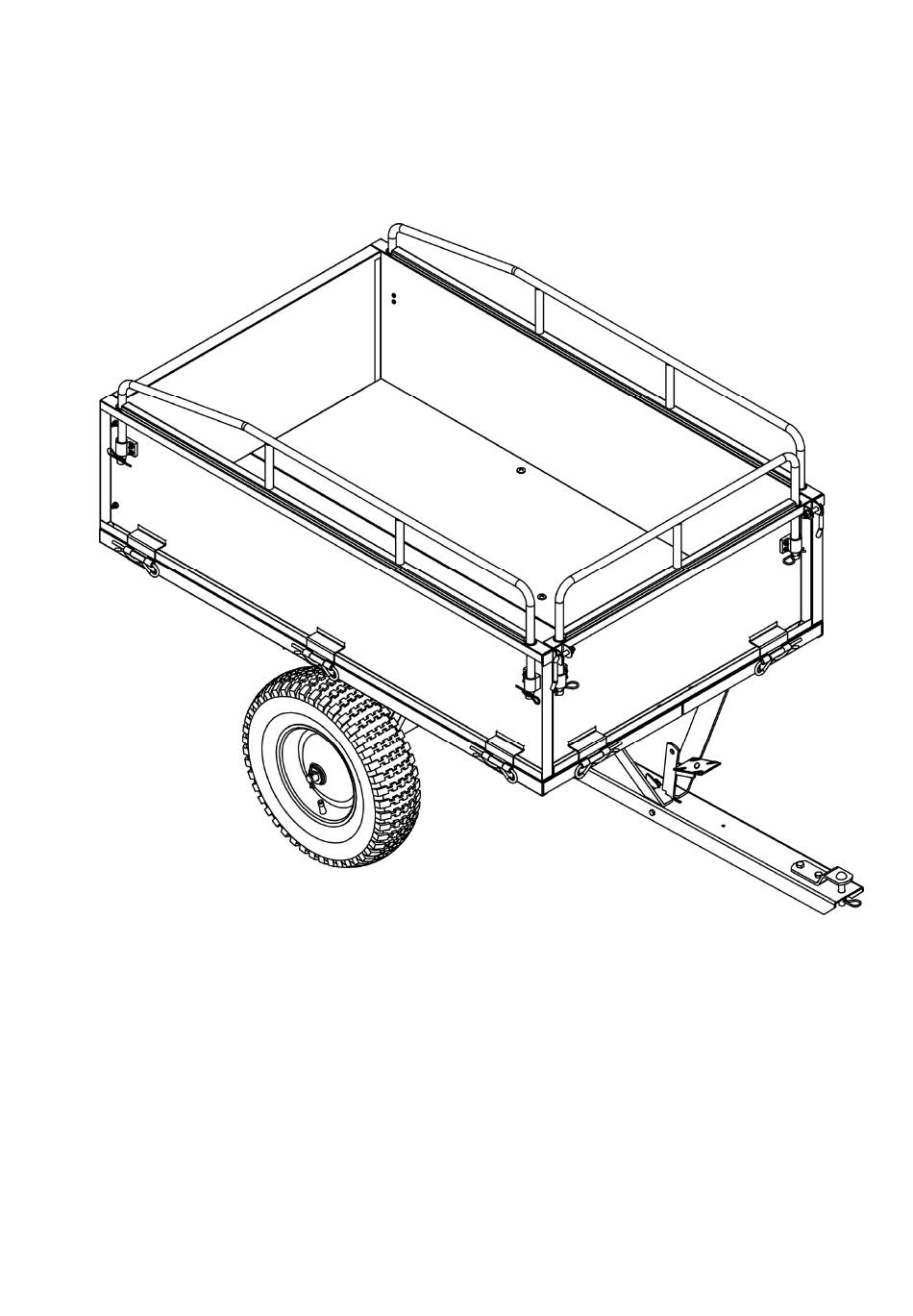

CAUTION Read and follow all instructions for assembly and operation. Failure to properly assemble this equipment could result in serious injury to the user or bystanders, or cause equipment damage. UTILITY DUMP CART COMPONENT PARTS AND ASSEMBLY Take all parts out of the shipping crate and inspect components to ensure there are no missing pieces before starting to assemble the utility dump cart follow steps 1 through 10.
Page 7
Component Parts Note: you may have extra nuts & bolts when finished. - 7 -...
Assembly Instructions STEP 1: Attach Bottom Panels and Support Tubes 1. Put the left bottom panel and right bottom panel together. 2. Attach the support tubes to the panels using four sets of M8x40 screws and M8 nylon lock nuts. Loosely tighten the nuts.
Page 9
STEP 3: Attach the Wheel Axle Support 1. Put together the two wheel axle supports and attached them to the bottom panels using eight sets of the M8x16 Screws and M8 nylon lock nuts. Loosely tighten the nuts. STEP 4: Attach Release Pedal 1.
Page 10
STEP 5: Attach Wheel Axle 1. Center the hitch tongue assembly in the wheel axle support. 2. Insert the axle through the hole and slide it through both the axle support and the hitch tongue assembly. 3. Tighten all hardware. STEP 6: Attach the Wheels 1.
Page 11
STEP 7: Attach Side Panel 1. Attach the left and right side panel assemblies to the bottom panels using the four hinge pins. STEP 8: Attach the Front Panel 1. Attach the front panel to the bottom panels and secure using the using the two hinge pins. 2.
Page 12
STEP 9: Attach the Rear Panel 1. Slide the rear panel through the slots on the back side panels. NOTE: The rear panel pins must go through the holes on the side panels to lock the panel in place. STEP 10: Attach Side Rails and Front Rail 1.
Operation Instructions WARNING Before using the utility dump cart, review the instructions below and safety information. Failure to follow these instructions may result in property damage or injury to the operator or bystanders. USING YOUR UTILITY DUMP CART 1. DO NOT exceed rated capacity of 700lb (317.5kg). 2.
Maintenance and Storage WARNING Improper maintenance and storage of the utility dump cart may void your warranty. MAINTENANCE · After each use clean material out of the cart box. · Rinse/dry inside and outside of the dump cart after each use. ·...
Specifications Load Capacity ................700lb (317.5kg) Box and Frame Material ................Steel Inside Box Dimensions ........45.5” x 28” x 17” /116x71.5x43.7cm Overall Dimensions ........66.13” x 33” x 36.25”/168x83x92cm Axle Dimensions ............0.78” x 32.25”/ Ø20x82cm Wheel Size ....................... 16” Wheel Type ...................Pneumatic Hitch Type ....................
Page 17
Parts Drawing & Parts List Ref# Description Ref# Description Left Bottom Panel Hitch Pin Bracket Wheel Axle Support Handle A Hitch Tongue Handle B Left Side Panel Handle Sleeve Right Side Panel R Pin Ø3 Side Rail Flat Washer Ø6 Front Panel Flat Washer Ø8 Front Rail...
