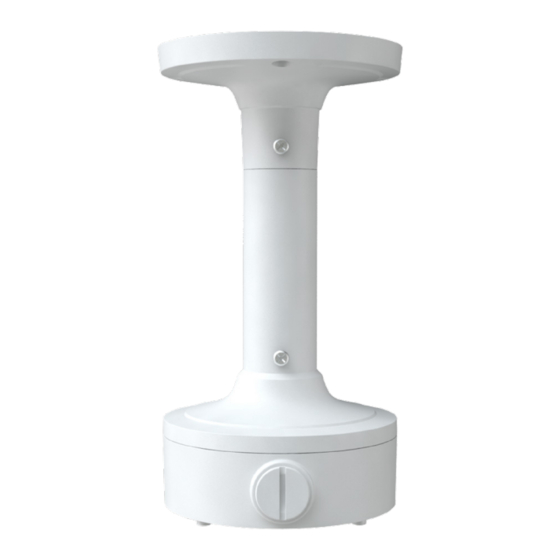

Ceiling mount bracket and junction box for fixed lens vandal dome cameras

Advertisement

Ceiling mount bracket and junction box for fixed lens
Ceiling Mount Bracket Mounting Screws and Anchors (PA4x25mm, head diameter 6.6mm)
Bracket-to-Junction Box Mounting Screws (PM4x12mm, head diameter 8mm)
Neck Connection Screws (PWM3x6mm)
Waterproof Rings for Mounting Screws
Ceiling Mount Bracket Mounting Template
Junction Box Mounting Screws and Anchors (PA4x25mm, head diameter 8mm, not used)
Camera Mounting screws (PM4x16mm, head diameter 8mm)
Cable Gland Connector
NOTE:
Download all your support materials and tools in one place.
1.
Go to: http://www.digital-watchdog.com/resources
Search your product by entering the part number in the 'Search by Product' search bar. Results
2.
for applicable part numbers will populate automatically based on the part number you enter.
3.
Click 'Search'. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday through Friday
vandal dome cameras
DWC-MV9CMJ
WHAT'S IN THE BOX
Quick Start Guide
digital-watchdog.com
x3
x4
x2
x8
x1
x4
x4
x1
