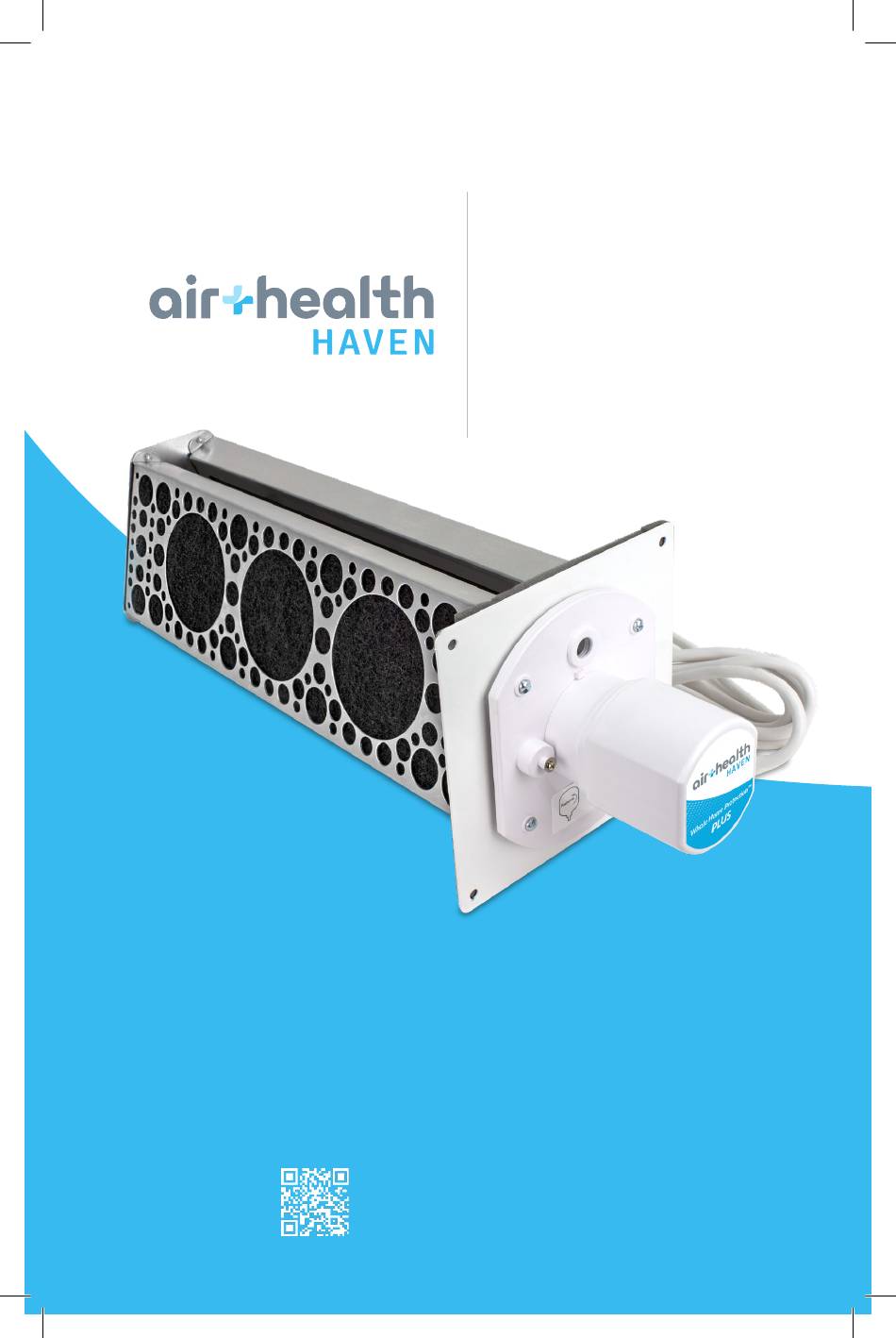

- Page 1 INSTALLATION & USER MANUAL PLUS Whole Home Protection™ PLEASE READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY before proceeding with the installation. Scan QR: install guide airhealth.com/diy-installation/...
-
Page 2: Table Of Contents
Thank you CONTENTS Thank you for choosing to buy an Air+Health air purifier. We BELIEVE in safe spaces. Safety Considerations We are DEDICATED to making the best air purifiers on earth to enable you to live your healthiest life. Meet Your New Haven Plus... -
Page 3: Safety Considerations
Looking directly at the UVC light may cause permanent eye damage of hand oils causes a reduction in the light intensity. or blindness. • Never operate the Air+Health™ Haven Plus out of the plenum. WARNING • Designed for a closed duct system. Do not mount near a supply or a Before installing or servicing a humidifier, air filter, heat system, this unit, return air opening. -
Page 4: Meet Your New Haven Plus
WARNING: NEVER EXPOSE EYES OR SKIN TO UVC LIGHT FROM ANY SOURCE. LOOKING DIRECTLY AT THE UVC LIGHT MAY CAUSE PERMANENT EYE DAMAGE OR BLINDNESS. NEVER OPERATE THE AIR+HEALTH™ AIR PURIFYING SYSTEM OUT OF THE PLENUM. AVOID TOUCHING THE GLASS PORTION OF THE LAMP WITH YOUR HANDS. -
Page 5: Identify Your Hvac System Type
This will help you determine a location for • DO NOT mount near a return air register grill. your Haven Plus unit. Haven Plus is designed to fit into supply and return air ductwork as well as fit into HVAC systems. Attic Installation... -
Page 6: Select A Location
WARNING: NEVER EXPOSE EYES OR SKIN TO UVC LIGHT FROM ANY SOURCE. LOOKING DIRECTLY AT THE UVC LIGHT MAY CAUSE PERMANENT EYE DAMAGE OR BLINDNESS. NEVER OPERATE THE AIR+HEALTH™ AIR PURIFYING SYSTEM OUT OF THE PLENUM. AVOID TOUCHING THE GLASS PORTION OF THE LAMP WITH YOUR HANDS. -
Page 7: Installation
WARNING: NEVER EXPOSE EYES OR SKIN TO UVC LIGHT FROM ANY SOURCE. LOOKING DIRECTLY AT THE UVC LIGHT MAY CAUSE PERMANENT EYE DAMAGE OR BLINDNESS. NEVER OPERATE THE AIR+HEALTH™ AIR PURIFYING SYSTEM OUT OF THE PLENUM. AVOID TOUCHING THE GLASS PORTION OF THE LAMP WITH YOUR HANDS. -
Page 8: Duct Board Mounting
WARNING: NEVER EXPOSE EYES OR SKIN TO UVC LIGHT FROM ANY SOURCE. LOOKING DIRECTLY AT THE UVC LIGHT MAY CAUSE PERMANENT EYE DAMAGE OR BLINDNESS. NEVER OPERATE THE AIR+HEALTH™ AIR PURIFYING SYSTEM OUT OF THE PLENUM. AVOID TOUCHING THE GLASS PORTION OF THE LAMP WITH YOUR HANDS. -
Page 9: Installation (Continued)
VIEW PORT plastic mounting base. Follow step 4B below. AIR FLOW 4A. Prep the unit for air flow type. AIR FLOW VIEW PORT The Haven Plus unit must be facing the correct way for CORD CORD airflow. The white, round mounting base on the front of the CORD CORD metal unit can be removed and the unit can be rotated so that the view port is always easy to access. - Page 10 FIGURE 14 NOTE: The Haven Plus model is configured for upward or horizontal air flow direction as shipped. If the direction of airflow in the duct is downward, the metal filter housing of the unit must be rotated, so that airflow matches Figure 10.
- Page 11 WARNING: NEVER EXPOSE EYES OR SKIN TO UVC LIGHT FROM ANY SOURCE. LOOKING DIRECTLY AT THE UVC LIGHT MAY CAUSE PERMANENT EYE DAMAGE OR BLINDNESS. NEVER OPERATE THE AIR+HEALTH™ AIR PURIFYING SYSTEM OUT OF THE PLENUM. AVOID TOUCHING THE GLASS PORTION OF THE LAMP WITH YOUR HANDS.
-
Page 12: Maintenance
WARNING: NEVER EXPOSE EYES OR SKIN TO UVC LIGHT FROM ANY SOURCE. LOOKING DIRECTLY AT THE UVC LIGHT MAY CAUSE PERMANENT EYE DAMAGE OR BLINDNESS. NEVER OPERATE THE AIR+HEALTH™ AIR PURIFYING SYSTEM OUT OF THE PLENUM. AVOID TOUCHING THE GLASS PORTION OF THE LAMP WITH YOUR HANDS. -
Page 13: Uvc Lamp Replacement
WARNING: NEVER EXPOSE EYES OR SKIN TO UVC LIGHT FROM ANY SOURCE. LOOKING DIRECTLY AT THE UVC LIGHT MAY CAUSE PERMANENT EYE DAMAGE OR BLINDNESS. NEVER OPERATE THE AIR+HEALTH™ AIR PURIFYING SYSTEM OUT OF THE PLENUM. AVOID TOUCHING THE GLASS PORTION OF THE LAMP WITH YOUR HANDS. - Page 14 WARNING: NEVER EXPOSE EYES OR SKIN TO UVC LIGHT FROM ANY SOURCE. LOOKING DIRECTLY AT THE UVC LIGHT MAY CAUSE PERMANENT EYE DAMAGE OR BLINDNESS. NEVER OPERATE THE AIR+HEALTH™ AIR PURIFYING SYSTEM OUT OF THE PLENUM. AVOID TOUCHING THE GLASS PORTION OF THE LAMP WITH YOUR HANDS.
-
Page 15: Troubleshooting Guide
WARNING: NEVER EXPOSE EYES OR SKIN TO UVC LIGHT FROM ANY SOURCE. LOOKING DIRECTLY AT THE UVC LIGHT MAY CAUSE PERMANENT EYE DAMAGE OR BLINDNESS. NEVER OPERATE THE AIR+HEALTH™ AIR PURIFYING SYSTEM OUT OF THE PLENUM. AVOID TOUCHING THE GLASS PORTION OF THE LAMP WITH YOUR HANDS. -
Page 16: Warranty Information
This warranty gives you specific rights and you may also have other rights which vary from state The products of Air+Health, LLC are warranted to be free from defects in to state. - Page 17 READ ALL INSTRUCTIONS BEFORE USING. PLEASE SAVE FOR REFERENCE. Air+Health Support Visit airhealth.com/support for online help, support videos, general tips, and useful information about Haven Plus and Air+Health’s other air treatment solutions. airhealth.com Techsupport@airhealth.com 1.866.765.1587...
