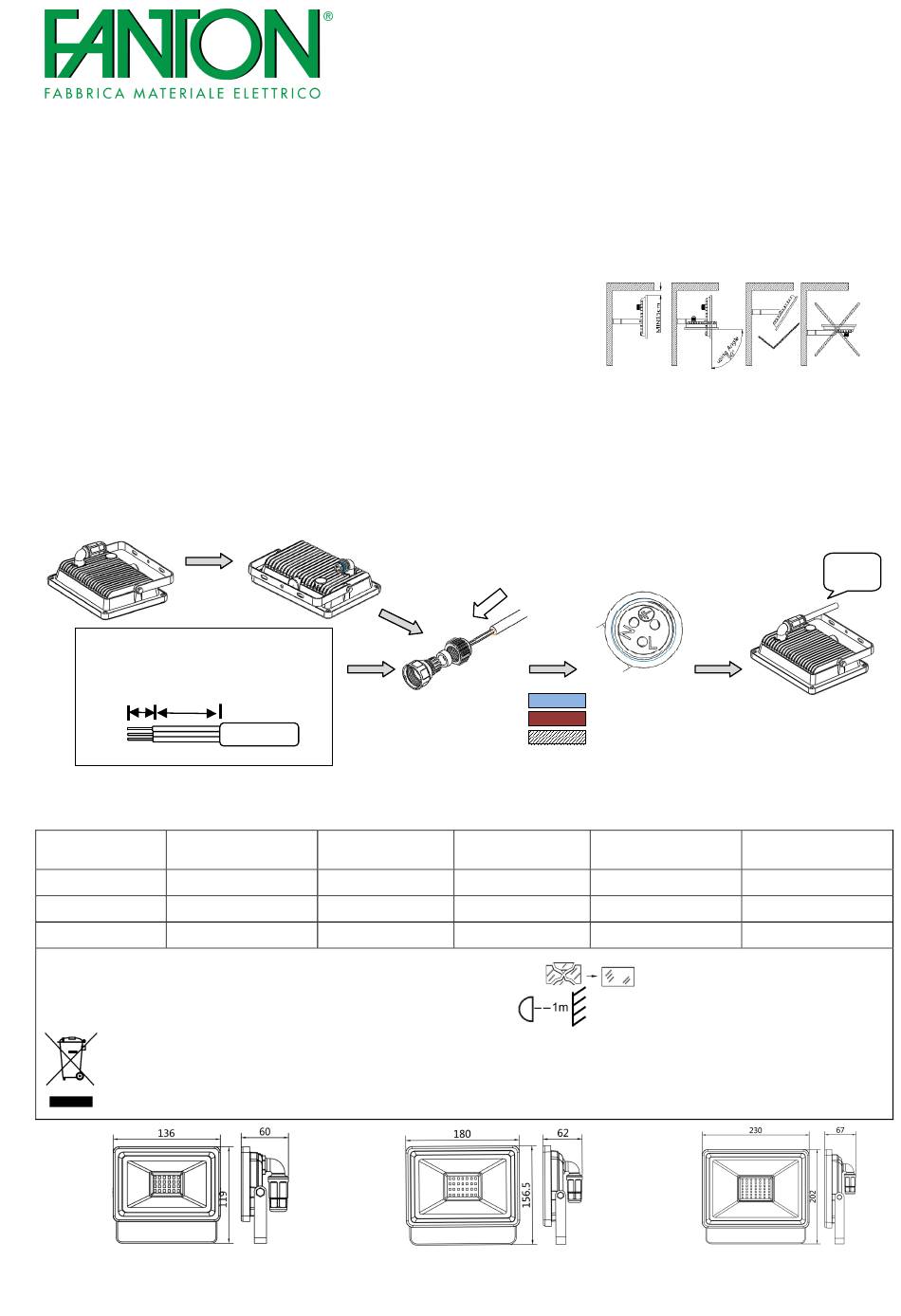

Fanton 62660 Instructions

LED FLOODLIGHT
62660 20W, 200-240V~ 50Hz Nero
62661 30W, 200-240V~ 50Hz Nero
62662 50W, 200-240V~ 50Hz Nero

INSTRUCTION

Ensure electricity is switched off before installation. Please read through all following instructions before installing the unit.
If any doubt about correct installation, please consult a qualified electrician.

Assembly:

1. The floodlight must be earthed.
2. Before touching the floodlight please switch off and allow it to cool.
3. In case of damage ot the safety shield, you must replace immediately with
tempered glass.
4. Please note the warning mark (label) on the floodlight
5. Do not mount on a surface prone to vibrations (fig. 1)
6. Unscrew the junction box cover on the back.
7. Put your mains cable (H05RN-F 3G1.0 mm
ensure that the plastic stud is sufficiently tight.
8. If the external flexible cable of this floodlight is damaged, it shall be replaced in order to avoid any hazard.
9. Please see the assembly sequence in fig. 2

Power line stripping requirements

A.Neutral=Live=Earth=15 mm
B.Neutral=Live=Earth=6 mm
B A

SPECIFICATION:

Code number Rated power
62660/5
62661/6
62662/7
Electric shock protection class: I
Protection class : IP65
Rated voltage: 220-240V~ 50Hz
This symbol means that the product should not be disposed of a household waste at the end of its working life. (As directive
2012/19/UE). It has to be taken to a special local differentiated waste collection centre, following your country's rules, or
redelivered to the distributor when buying a new appliance. Correct disposal of this product will help prevent negative
consequences for the environment and human health.
62660/5
FANTON SPA Viale dell'Industria, 8/10 – 35026 Conselve PD Italy – www.fanton.com
2
, not included) into the junction box through the plastic stud and rubber gasket
LUMEN
20W 1600LM
30W 2400LM
50W 4000LM
62661/6
62665 20W, 200-240V~ 50Hz Bianco
62666 30W, 200-240V~ 50Hz Bianco
62667 50W, 200-240V~ 50Hz Bianco
Glass mm
130x90x3
172x120x3
221x159x4
Fig. 1
Blue: neutral
Brown: live
Green yellow: earth
Maximum projected
area
2
58 cm
2
118 cm
2
224 cm
Replace any cracked protective shield.
The minimum distance from lighted object is 1m.
62662/7
OK
Fig. 2
Weight
0,34 kg
0,60 kg
1,01 kg
IMT1021 R01
