Fanton 62681 Instructions

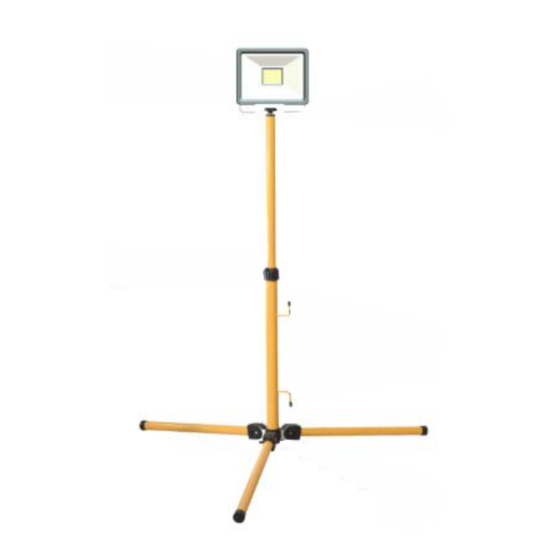

LED FLOODLIGHT ON TRIPOD
62681 50W, 200-240V~ 50Hz
INSTRUCTION
Please read the instructions carefully to ensure that the installation is done in
the correct manner. In addition, this manual should be properly kept for future
reference.

Warning:

Ensure electricity is switched off before installation.
Please read through all following instructions before installing the unit. If any
doubt about correct installation, please consult a qualified electrician.
This unit is suitable for outdoor use.

Electrical safety:

This floodlight must be earthed. Always have the wiring and connections
checked by a qualified electrician.
When in use, ensure all wiring and extension cable are kept clear of any
cutting tools, sharp objects and any other potential hazard such as wet floors,
chemicals, solvents etc. Any faults should be immediately rectified before
further use of this floodlight.
The lighting direction can not be adjusted to down ward.
Note: Always ensure that the mains supply voltage is correct. If the external
flexible cable of this worklight is damaged, it shall be exclusively replaced by
qualified person in order to avoid a hazard.
Caution:
This unit can become extremely hot whilst in operation; do not touch the unit
until it has had time to cool down.
Make sure this floodlight is far enough away from any combustible materials
and/or surfaces. Make sure there is adequate ventilation to aid heat
dissipation.

Assembly:

The tripod stand is supplied assembled. To attach this floodlight you must first erect the stand. To open the legs push the
spring pin upwards and, at the same time, pivot the leg down. Release the spring pin whilst pivoting the leg and the pin will
locate into one slot. Unscrew the centre knob(A). Position the centre hole on the floodlight bracket over the top of the stand.
Re-insert the centre screw knob (A). To alter the stand height twist the locks(B)anti-clockwise to release, slide the tubes to
desired height and tighten the twist locks clockwise. The floodlight can be swivelled, if required, by loosening the centre screw
knob (A), rotating the floodlight to the desired angle, and re-tightening the centre screw knob (A). The stand has an integral
cable tidy (D). Check this floodlight is secure and that the stand is stable and has a firm footing. Ensure cable is not catching
on any sharp object and that the mains plug connection is adequately protected against rain or moisture.

SPECIFICATION:

Code Rated
number power:
62681 Max.50W
Electric shock protection class: I
Protection class : IP44
Rated voltage: 220-240V~ 50Hz
Power cord: H05RN-F 3G1.0mm
This symbol means that the product have not be disposed of a household waste at the end of its working life. (As directive
2012/19/UE). It has to be taken to a special local differentiated waste collection centre, following your contry's rules, or
redelivered to the distributor when buying a new appliance. Correct disposal of this product helps prevent negative
consequences for the environment and human health.
FANTON SPA Viale dell'Industria, 8/10 – 35026 Conselve PD Italy – www.fanton.com
LUMEN Weight
4000LM 3.43Kg
2
Maximum
Dimensions
projected area
2
224cm 970x835x157cm
Replace any cracked protective shield.
The minimum distance from lighted object is 1m.

Parts identification:

A: centre screw knob
B: twist locks
C: leg hinges
D: cable storage
E: lamp body
Support height
0.83-1.57m
IMT1024 R00
