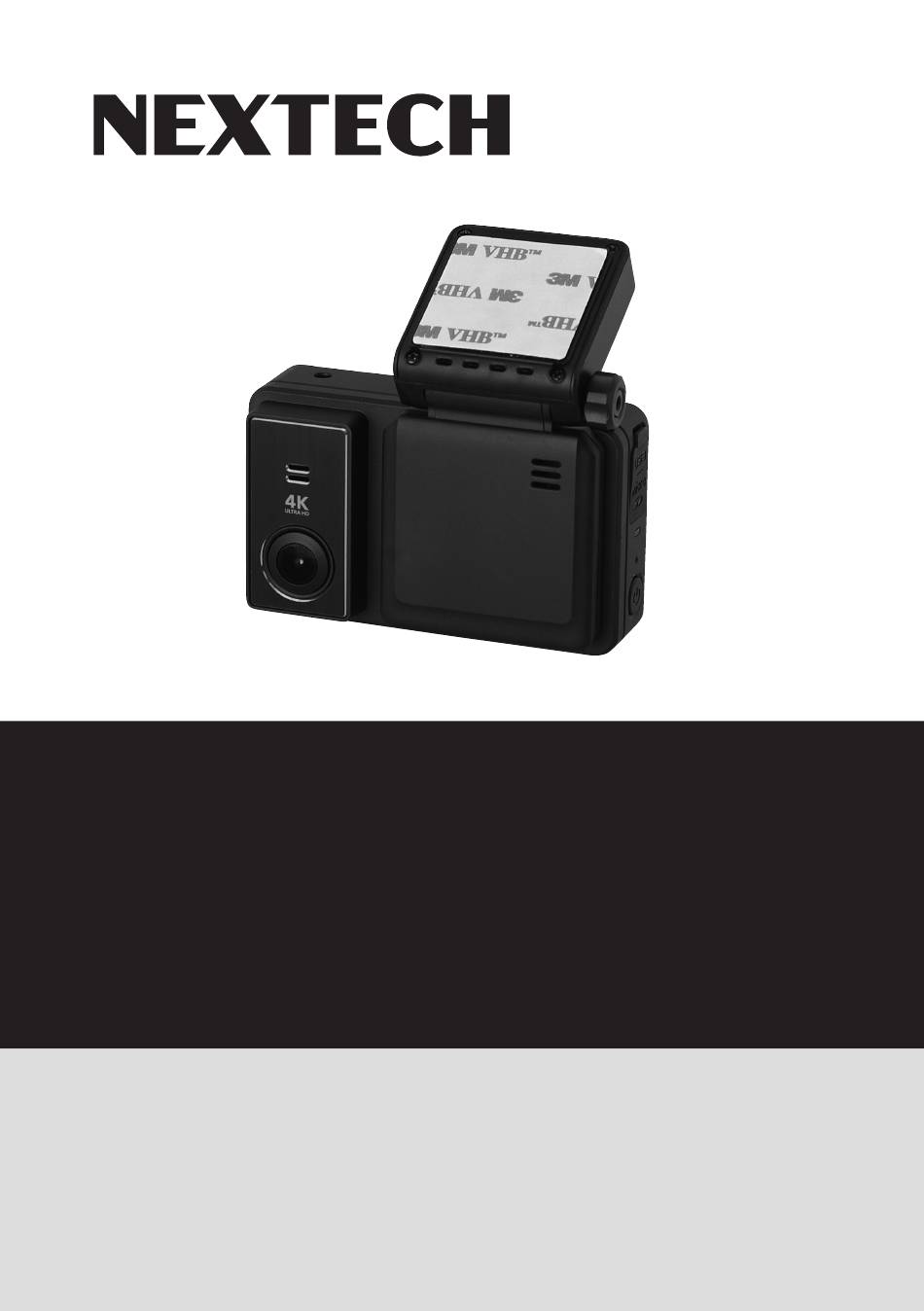

- Page 1 QV3868 4K Dashcam with Touchscreen Instruction Manual...
-
Page 2: About The Product
ABOUT THE PRODUCT: The 4K Dashcam with Touchscreen is a multi-functional driving recorder with HD photo taking, video recording, G-sensor, parking guard and other functions. It supports 4K video recording, fully meeting your driving safety requirements. IMPORTANT SAFETY INSTRUCTIONS: Please use the special car charger provided by our company. Using unqualified car charger will do harm to the product or even burn out the product. - Page 3 PRODUCT STRUCTURE AND INSTRUCTIONS: Component Description MINI USB interface, USB interface: Connect to PC for data (MicroSD MicroSD card slot, card) transfer with an MINI USB cable. reset button SD card slot: Insert MicroSD Card (Support 128GB Max min class 10). Reset button: If the device fails to operate properly, try resetting the device.
-
Page 4: Product Operation
PRODUCT OPERATION: Power When the unit is off, long press [power]button to start the unit, and the dash camera will start to work automatically. When the unit is on, long press [power] button to turn it off; short press [Power] to enter into the setting interface. - Page 5 PRODUCT OPERATION: Playback Press the [playback] icon to enter into photo album, then select the video or photo you need to play back or view. Setting Press [setting] icon to enter into system setting interface. Slide up/down the screen to select the options you want to set. Details as below. Setting Description Option...
- Page 6 PRODUCT OPERATION: Setting Description Option Loop recording Use this option to set the Off/1min/3min length of each video clip. /5min Ifyou choose the option ‘Off’ then the recorder will not loop record and the files will not be overwritten on the micro SD card.
- Page 7 IMPORTANT PRODUCT FUNCTION: Video recording When the SD card is inserted in and power is on, the dash camera will record automatically. The red recording indicator will flash on the screen. From 00:00:00, press [Recording] icon to stop recording. Take Photo In video mode, slide your finger from left to right in the blank area of the screen to take photos.
- Page 8 INSTALLATION GUIDE: Turn off the car engine. Insert the SD card into the SD card slot. Note: Please use high-speed SD card (above Class10) with a capacity of not less than 8G. For the first time of use, please format the SD card on the device.
-
Page 9: Specifications
SPECIFICATIONS: HS3559V200 Case Material Black Plastic Memory SPI Flash Display 3. 0'' IPS Display Resolution 640*360 pixels Video Resolution 3840 X 2160P/30 fps Front Camera Sensor Sony IMX415 Video Resolution 3840 * 2160 Lens 6 glasses Viewing Angle 170 ° Touch Screen GPS Location Support... -
Page 10: Troubleshooting Guide
TROUBLESHOOTING GUIDE: If there are problems with the device,please refer to the following methods to resolve. Unable to boot. Check whether the device is properly connected to the car charger. If it is started manually, check whether the battery power is too low and need to be charged. - Page 12 Distributed by: Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere NSW 2116 Australia www.electusdistribution.com.au Made in China...
