Dahua Technology ASC1202B-S User Manual

Dahua Technology ASC1202B-S User Manual

Two-door one-way access controller

Advertisement

Two-door One-way Access Controller User's
Manual
V1.0.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASC1202B-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dahua Technology ASC1202B-S

  • Page 1 Two-door One-way Access Controller User’s Manual V1.0.0...
  • Page 2: Table Of Contents

    Table of Contents 1 Overview ........................ 1 2 Device Appearance ....................2 3 Device Installation and Uninstallation ..............3 3.1 Device Installation ....................3 3.2 Device Uninstallation ................... 4 4 Port ............................6 4.2 Cabling ........................ 7 4.3 System Structure ....................9 5 Technical Specification ..................
  • Page 3 Important Safeguards and Warnings Please read the following safeguards and warnings carefully before using the product in order to avoid damages losses and body injuries. After reading, please well keep this user's manual. Note: Please change user default password after being armed. ...
  • Page 4 owners.  If there is any uncertainty or controversy, please refer to the final explanation of Please visit our website for more information. ...
  • Page 5: Overview

    1 Overview The two-door one-way access controller is a controlling device which compensates video monitoring and bidirectional talk. It has neat and modern design with strong functionality, suitable for commercial building, corporation property and intelligent community. It has:  It adopts slideway and lock installation design for easy installation and repair. ...

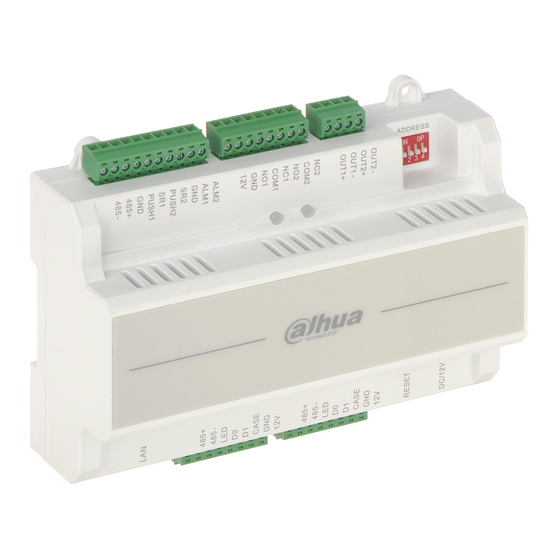

  • Page 6: Device Appearance

    2 Device Appearance Two-door one-way access controller appearance and dimension are shown in Figure 2- 1 Dimension 1 and Figure 2- 2 Dimension 2. Unit is mm. Figure 2- 1 Dimension 1 Figure 2- 2 Dimension 2...
  • Page 7: Device Installation And Uninstallation

    3 Device Installation and Uninstallation 3.1 Device Installation You can install the device either:  Fix it on wall with screw.  Fix it on wall with bracket. Installation 1: Fix device on wall with screw as in Figure 3- 1 Figure 3- 1 Installation 2: Fix it on wall with bracket as in Figure 3- 2.
  • Page 8: Device Uninstallation

    Figure 3- 2 Installation steps: Step 1. Fix bracket on wall with screw. Step 2. Fasten the device into slot on bracket and pull device downward until it is in place. 3.2 Device Uninstallation Uninstallation method for installation 2 is shown in Figure 3- 3.
  • Page 9 Figure 3- 3 Uninstallation method: Step 1. Face screwdriver toward the slot and press it to fasten. Step 2. Do it again for second slot, and you can take the device down.
  • Page 10: Port

    4 Port Device ports are illustrated in Figure 4- 1. Figure 4- 1 Ports are defined as: Port Port RS485 communication Alarm output Unlock+Door sensor Dial-up switch (door 1) Unlock+Door sensor TCP/IP, software platform port (door 2) Alarm input Card reader (door 1) Lock power output Card reader (door 2) Lock...
  • Page 11: Cabling

    Note Lock status indicator Power indicator 4.2 Cabling Cabling ports of No.1 to 7 are shown as Figure 4- 2. Figure 4- 2 Cabling ports of “RS485 communication” are as follows: Port Cabling Port 485- Communication 485+ Cabling ports of “Unlock+Door sensor” are as follows: Port Cabling Port Note...
  • Page 12 Port Cabling Port Note alarm and etc. Cabling ports of “Lock Control Output” are as follows: Port Cabling Port Note Lock Control Lock power supply Output Door lock off when outage (door 1) COM1 Lock power 12V input (door Door unlock on when outage (door 1) Door lock on when outage (door 2)
  • Page 13: System Structure

    Port Cabling Port Note Door 1 485+ 485 card reader Card 485- Reader Wiegand card reader CASE Card reader power 4.3 System Structure The access controller, lock, card reader and etc. combine a system as in Figure 4- 4. Figure 4- 4...
  • Page 14: Technical Specification

    5 Technical Specification Parameter Specification Processor 32 bit ARM processor Storage Capacity Max User 100,000 Max Record 150,000 Card Reader Wiegand, RS485 Communication Port Platform TCP/IP Communication Port Input Card Reader 2 groups Quantity Working Power Rated power 10-15VDC, rated current 0.75A Schedule Period Holiday...
  • Page 15 Note:  This manual is for reference only. Slight difference may be found in user interface.  All the designs and software here are subject to change without prior written notice.  All trademarks and registered trademarks are the properties of their respective owners.
