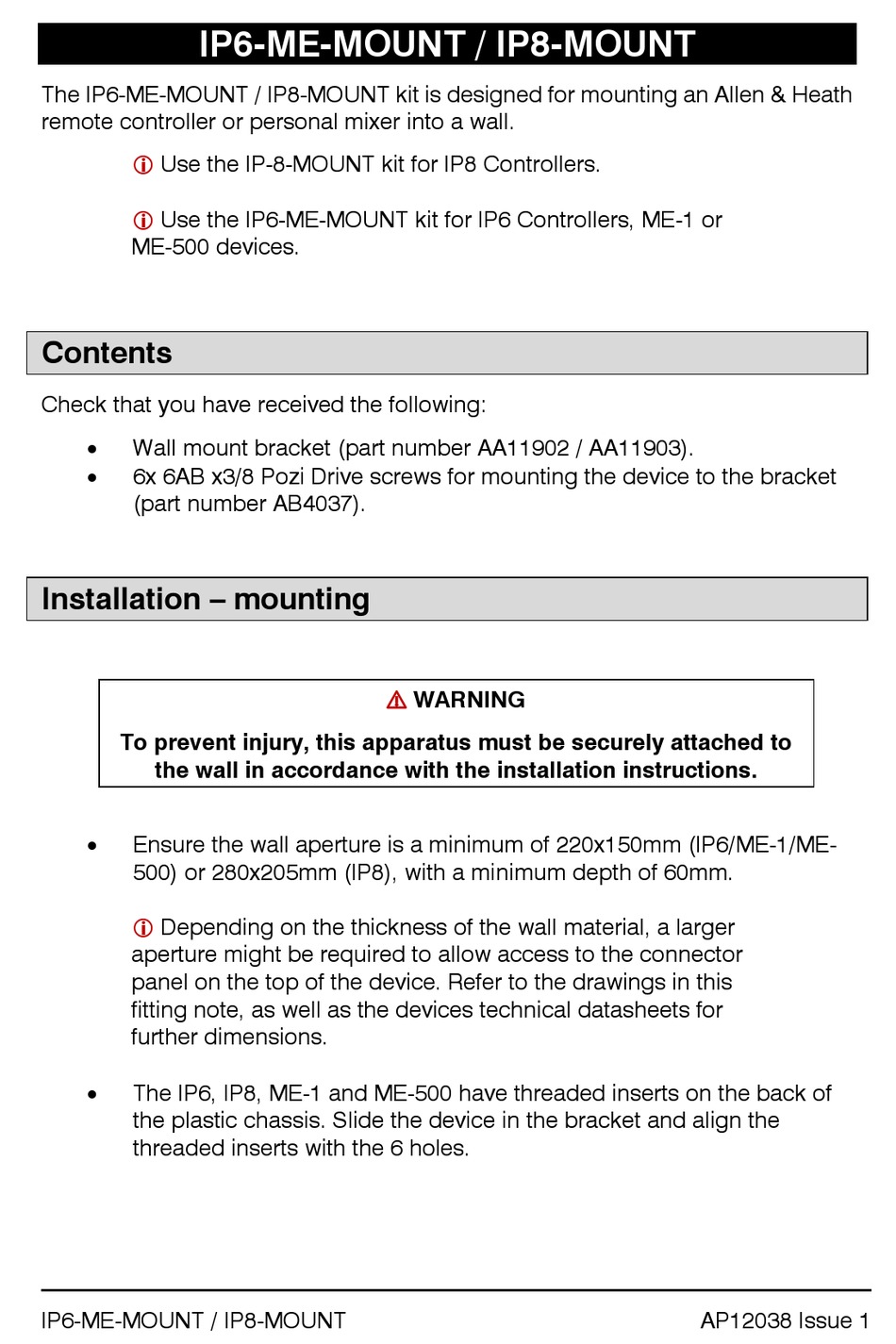

IP6-ME-MOUNT / IP8-MOUNT
The IP6-ME-MOUNT / IP8-MOUNT kit is designed for mounting an Allen & Heath
remote controller or personal mixer into a wall.
Use the IP-8-MOUNT kit for IP8 Controllers.

Use the IP6-ME-MOUNT kit for IP6 Controllers, ME-1 or

ME-500 devices.

Contents

Check that you have received the following:
•
Wall mount bracket (part number AA11902 / AA11903).
•
6x 6AB x3/8 Pozi Drive screws for mounting the device to the bracket
(part number AB4037).
Installation – mounting
To prevent injury, this apparatus must be securely attached to
the wall in accordance with the installation instructions.
•
Ensure the wall aperture is a minimum of 220x150mm (IP6/ME-1/ME-
500) or 280x205mm (IP8), with a minimum depth of 60mm.
Depending on the thickness of the wall material, a larger

aperture might be required to allow access to the connector
panel on the top of the device. Refer to the drawings in this
fitting note, as well as the devices technical datasheets for
further dimensions.
•
The IP6, IP8, ME-1 and ME-500 have threaded inserts on the back of
the plastic chassis. Slide the device in the bracket and align the
threaded inserts with the 6 holes.
IP6-ME-MOUNT / IP8-MOUNT
⚠
WARNING
AP12038 Issue 1
