- Page 1 INSTRUCTION MANUAL Models: APV1201/APV2303/API2300I...
-
Page 2: Safety Warnings
1. Foreword 1.1 Safety Warnings Your safety is important to us. Please read this information before using your cooktop. 1.2 Installation 1.2.1 Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. •... - Page 3 • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 4: Health Hazard
• Failure to follow this advice may result in electrical shock or death. 1.3.2 Health Hazard • However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field. - Page 5 • Never use your appliance for warming or heating the room. • After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls). Do not rely on the pan detection feature to turn off the cooking zones when you remove the pans.
-
Page 6: Product Introduction

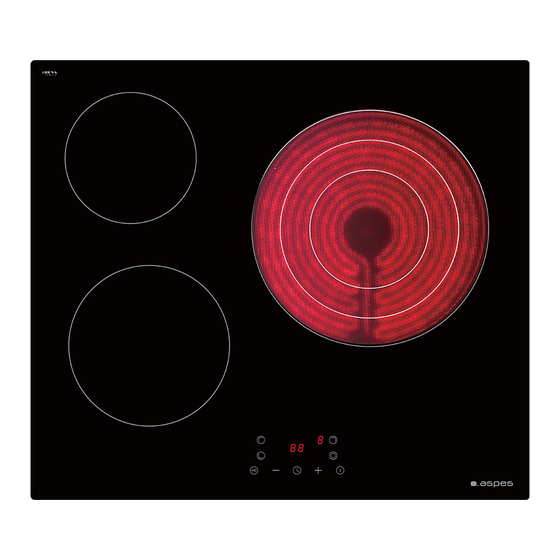

2. Product Introduction 2.1 Top View APV1201 1. max. 1200W zone 2. max. 1800W zone APV2303 1. max. 1800W zone 2. max. 1200W zone 3. max. 1050/1950/2700W zone API2300I 1. max. 1800/2200W zone 2. max. 1200/1500W zone 3. max. 2500/3700W zone... -
Page 7: Control Panel
2.2 Control Panel APV1201 APV2303 API2300I... -
Page 8: Working Theory
2.3 Working Theory Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. -
Page 9: How To Use
Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. -
Page 10: Finish Cooking
Select power level by touching the MINUS (2) or PLUS key (3). If you don’t choose a heat setting within 1 minute, the • hob will automatically switch off. You will need to start again at step 1. You can modify the heat setting at any time during •... -
Page 11: Locking The Controls
If the original heat setting equals 0, it will return to 9 after 5 minutes. • 3.3.4 Extended zone control (for ceramic hob) If your hob is euipped with an extendable zone, it can be used in the following mode: A: Center zone –... -
Page 12: Timer Control
When the hob is in the pause mode, all the controls are disable except the ON/OFF (1) you can always turn the hob off with the ON/OFF (1) in an emergency. The hob will shut down after 10min if you don’t exit the pause mode. -
Page 13: Cancel The Timer
Touch timer key (6), the “10” will show in the timer display and the “0” flashes. Set the time by touching MINUS key (2) or PLUS key (3). Touch timer key again, then number to represent tens digit will flash. Set the desired dozens of minutes by touching MINUS key (2) or PLUS key (3). -
Page 14: Cooking Guidelines
in the below table: Power level Default working timer (hour) When the pot is removed, the hob can stop heating immediately and the hob automatically switch off after 2 minutes. People with a heart pace maker should consult with their doctor before using this unit. 4. -
Page 15: Hints And Tips
What? How? Important! Everyday soiling 1. Switch the power to the cooktop off. • When the power to the cooktop is on glass 2. Apply a cooktop cleaner while the glass switched off, there will be no ‘hot surface’ (fingerprints, is still warm (but not hot!) indication but the cooking zone may still marks, stains left... -
Page 16: Failure Display And Inspection
The touch controls are There may be a slight film of Make sure the touch control area is dry difficult to operate. water over the controls or you and use the ball of your finger when may be using the tip of your touching the controls. - Page 17 3mm. L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) APV1201 290 50 min. APV2303 290 50 min. API2300I 590 50 min. Under any circumstances, make sure the hob is well ventilated and the air inlet and outlet are not blocked.
-
Page 18: Before Locating The Fixing Brackets
There are ventilation holes around outside of the hob. YOU MUST ensure these holes are not blocked by the worktop when you put the hob into position. Be aware that the glue that join the plastic or wooden material to the furniture, has ... -
Page 19: Connecting The Hob To The Mains Power Supply
75˚C at any point. Check with an electrician whether the domestic wiring system is suitable without alterations. Any alterations must only be made by a qualified electrician. APV1201 APV2303 API2300I • If the cable is damaged or to be replaced, the operation must be carried out the by... -
Page 20: Technical Specification
• The cable must be checked regularly and replaced by authorised technicians only. • The bottom surface and the power cord of the hob are not accessible after installation. Technical Specification APV1201 Cooking Hob 2 Zones Cooking Zones 220-240V~ 50-60Hz... - Page 21 This appliance is labeled in compliance with European directive 2012/19/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.
