3.5

Components and Dimensions

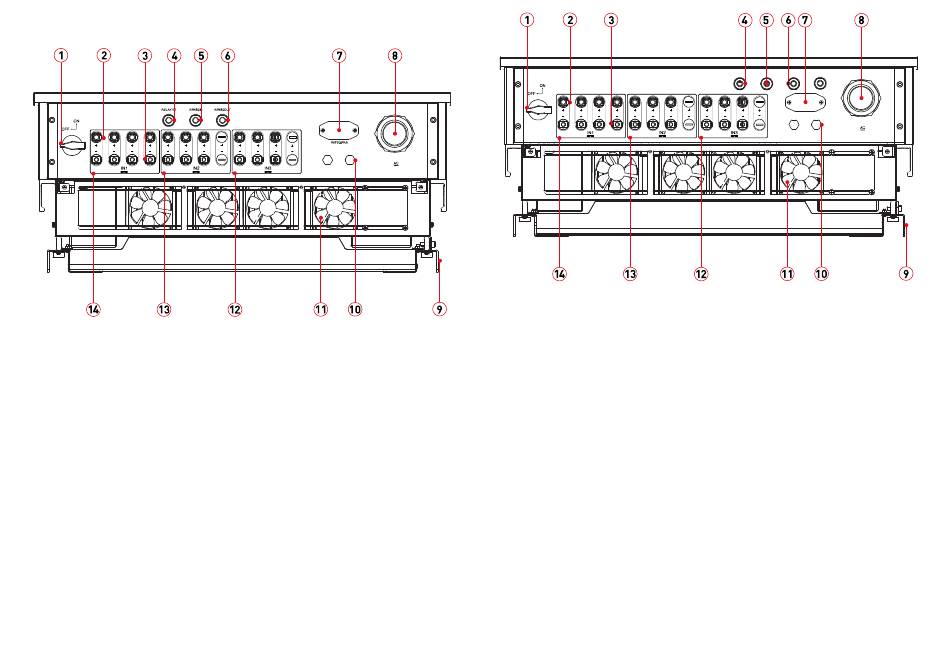

Fig. 7: Connection area REFUsol 50K-3T
16 Technical Description
Components and Dimensions
Fig. 8: Connection area REFUsol 50K-3T
1 DC switch
2 DC + connection
3 DC - connection
4 Relay contact/digital input
5 RS485 input cable gland
6 RS485 output cable gland
7 Ethernet or WiFi interface
8 AC cable gland
9 Inverter bracket
RS485IN RS485OUT RS485-2 RS485-2
RELAY/IO
WiFi/GPRS
10 Pressure compensation
membrane
11 Heat sink with fans
12 PV connection IN3
(MPPT3)
13 PV connection IN2
(MPPT2)
14 PV connection IN1
(MPPT1)
REFUsol 50K-3T
982081 | 03 | 2021-03
